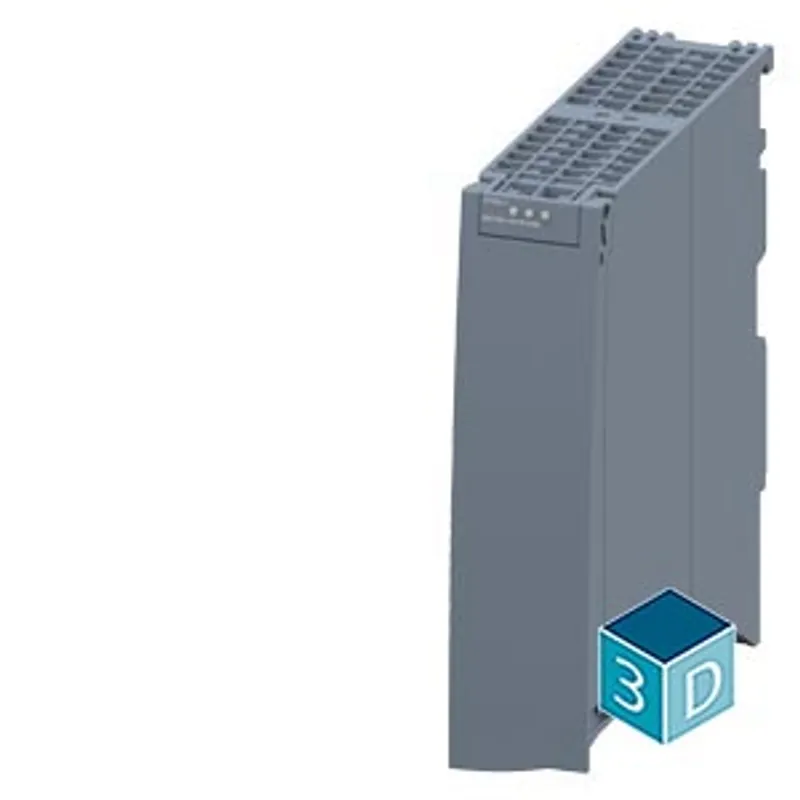

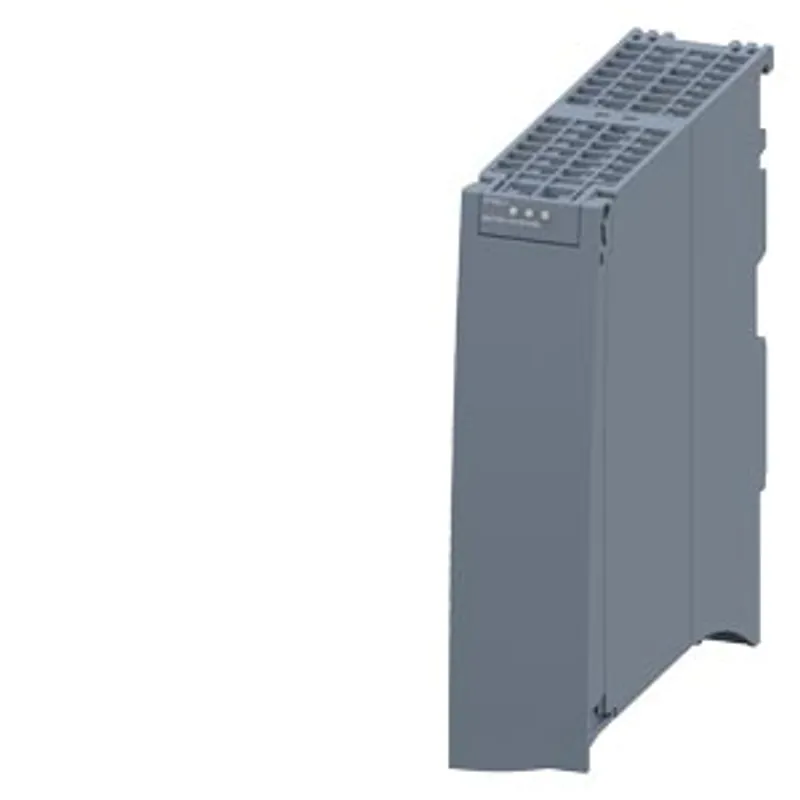

Siemens 6GK7543-1AX10-0XE0

Communications processor CP 1543-1 for connection of SIMATIC S7-1500 to Industrial Ethernet, TCP/IP, ISO, UDP

MPN
6GK7543-1AX10-0XE0
Category
CP 1543-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK7543-1AX10-0XE0?

Communications processor CP 1543-1 for connection of SIMATIC S7-1500 to Industrial Ethernet, TCP/IP, ISO, UDP, S7 communication, IP Broadcast/ Multicast, security (VPN, Firewall) Diagnostics SNMPV1/V3, DHCP, FTP client/server, email, IPv4/IPv6, IEEE 802.1X (radius), time-of-day synchronization via NTP, 1x RJ45 (10/100/1000 Mbit).

Specifications

General

product brand nameSIMATIC NET
Technical Product Detail Pagehttps://i.siemens.com/1P6GK7543-1AX10-0XE0

transfer rate

transfer rate — at the 1st interface10 ... 1000 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet1
number of electrical connections — at the 1st interface / according to Industrial Ethernet1
type of electrical connection — at the 1st interface / according to Industrial EthernetRJ45 port

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus15 V
relative symmetrical tolerance / at DC — at 15 V3 %
consumed current — from backplane bus / at DC / at 15 V / typical0.25 A
power loss [W]3.75 W

ambient conditions

ambient temperature — for vertical installation / during operation-30 ... +40 °C
ambient temperature — for horizontally arranged busbars / during operation-30 ... +60 °C
ambient temperature — during storage-40 ... +70 °C
ambient temperature — during transport-40 ... +70 °C
ambient temperature — notewithout condensation or icing
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altituderestrictions for installation altitudes > 2 000 m, see manual
relative humidity — at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

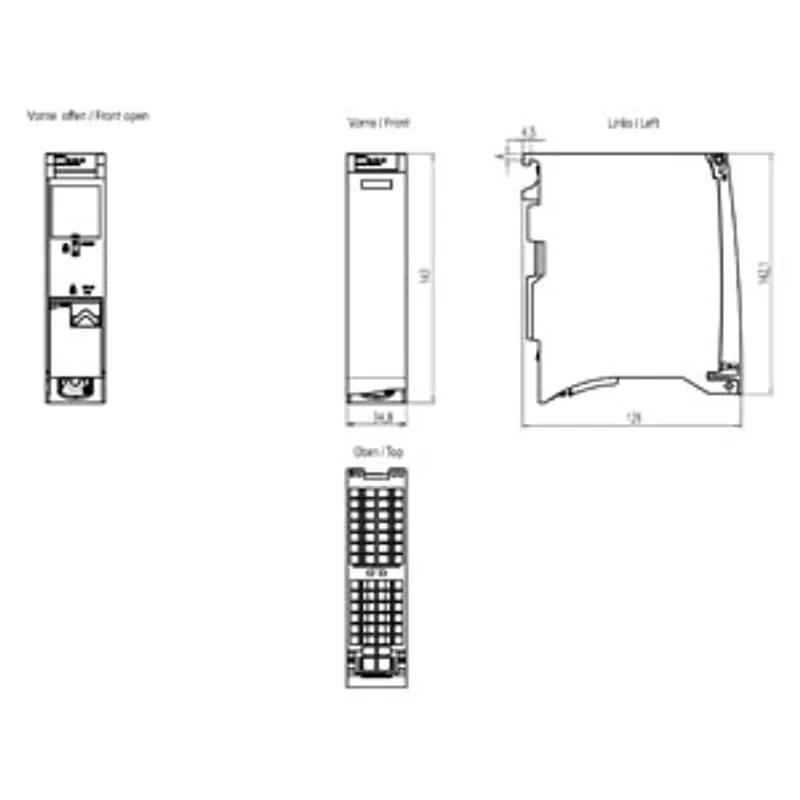

design, dimensions and weights

module formatCompact module S7-1500 single width
width35 mm
height142 mm
depth129 mm
net weight0.26 kg
fastening method — S7-1500 rail mountingYes

product features, product functions, product components / general

number of units — per CPU / maximum8
number of units — notedepending on CPU type

performance data / open communication

number of possible connections / for open communication — by means of T blocks / maximum118; depending on the system upper limit
data volume — as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 byte
number of Multicast stations118

performance data / S7 communication

number of possible connections / for S7 communication — maximum118; depending on the system upper limit

performance data / multi-protocol mode

number of active connections / with multi-protocol mode118

performance data / IT functions

number of possible connections — as client / by means of FTP / maximum32
number of possible connections — as server / by means of FTP / maximum16
number of possible connections — as server / by means of HTTP / maximum4
number of possible connections — as email client / maximum1
data volume / as user data for email / maximum64 Kibyte

performance data / telecontrol

protocol / is supported — TCP/IPYes

product functions / management, configuration, engineering

product function / MIB supportYes
protocol / is supported — SNMP v1Yes
protocol / is supported — SNMP v3Yes
protocol / is supported — DCPYes
protocol / is supported — LLDPYes
configuration software — requiredSTEP 7 Professional V19 (TIA Portal) or higher
identification & maintenance function — I&M0 - device-specific informationYes
identification & maintenance function — I&M1 - higher level designation/location designationYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function / web-based diagnosticsYes; via S7-1500 CPU

product functions / routing

service / routing / noteIP routing up to 1 Mbps
product function — static IP routingYes
product function — static IP routing IPv6No
product function — dynamic IP routingNo
product function — dynamic IP routing IPv6No
protocol / is supported — RIP v1No
protocol / is supported — RIPv2No
protocol / is supported — RIPnG for IPv6No
protocol / is supported — OSPFv2No
protocol / is supported — OSPFv3 for IPv6No
protocol / is supported — VRRPNo
protocol / is supported — VRRP for IPv6No
protocol / is supported — BGPNo
protocol / is supported — PPPNo
protocol / is supported — PPoE via DSLNo

product functions / security

firewall versionstateful inspection
product function / with VPN connectionIPSec
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1, SHA-256, SHA-384, SHA-512
number of possible connections / with VPN connection16
product function — IEEE 802.1x (radius)Yes
product function — password protection for Web applicationsNo
product function — ACL - IP-basedNo
product function — ACL - IP-based for PLC/routingNo
product function — switch-off of non-required servicesYes
product function — blocking of communication via physical portsNo
product function — log file for unauthorized accessYes

product functions / time

product function / SICLOCK supportNo
product function / pass on time synchronizationYes
protocol / is supported — NTPYes

standards, specifications, approvals

certificate of suitability / CE markingYes
certificate of suitability / UKCA markingYes
certificate of suitability / cULus approvalYes
certificate of suitability / KC approvalYes
certificate of suitability / Regulatory Compliance Mark (RCM)Yes
certificate of suitability / RoHS conformityYes
certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes
certificate of suitability / IECExYes
certificate of suitability / ULhazloc approvalYes
certificate of suitability / CCC / for hazardous zone according to GB standardYes
certificate of suitability / FM registrationYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total140.88 kg
global warming potential [CO2 eq] — during manufacturing21.24 kg
global warming potential [CO2 eq] — during operation119.29 kg
global warming potential [CO2 eq] — after end of life0.35 kg

further information / internet links

internet link — to website: Selection guide for cables and connectorshttps://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to website: Industrial communicationhttps://www.siemens.com/simatic-net
internet link — to web page: SiePortalhttps://sieportal.siemens.com/
internet link — to website: Image databasehttps://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Managerhttps://siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
