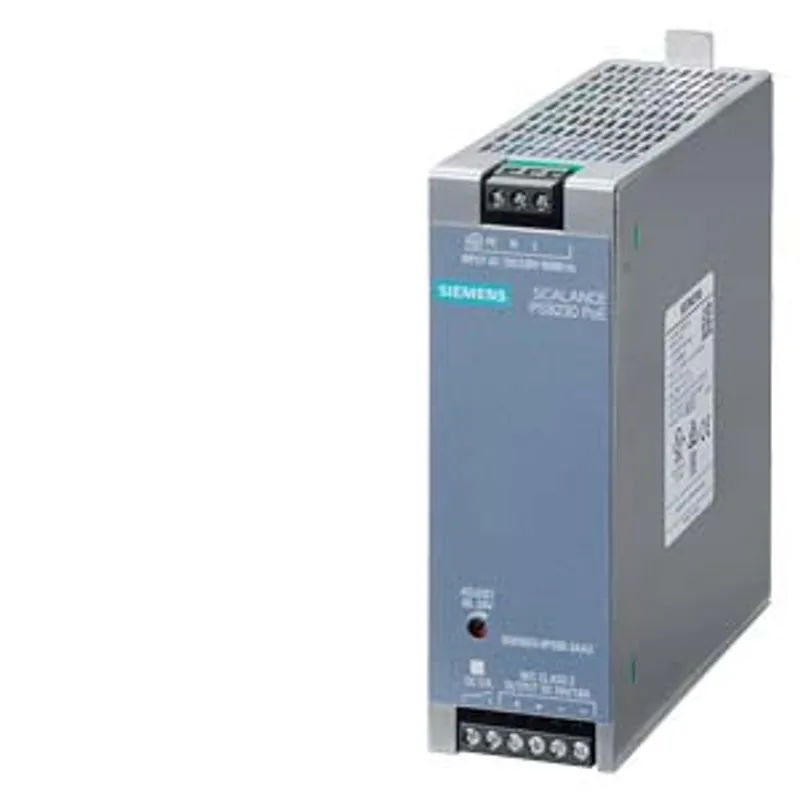

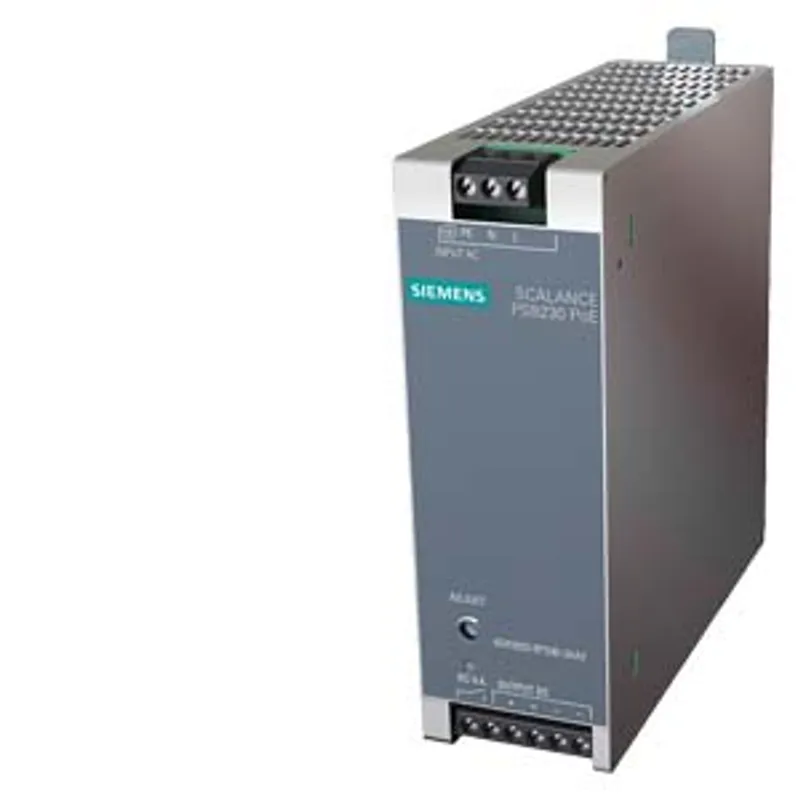

Siemens 6GK5923-0PS00-3AA2
SCALANCE PS9230PoE power supply for Power over Ethernet, input: 120/230 V AC
- MPN
- 6GK5923-0PS00-3AA2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5923-0PS00-3AA2?
SCALANCE PS9230PoE power supply for Power over Ethernet, input: 120/230 V AC, output: 54 V DC/1.6 A NEC Class 2.
Specifications
General
| product brand name | SCALANCE |
| type of current supply | Input: AC 120 / 230 V, Output: DC 54 V / 1.6 A, NEC CLASS 2 |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5923-0PS00-3AA2 |
| suitability for use | Power supply for PoE |
electrical data
| product category | Power supply |
electrical data / input
| voltage curve / at input | AC single phase |
| supply voltage / 1 / rated value | 230 V |
| supply voltage / 1 / rated value — supply voltage / 1 / rated value | 85 ... 264 V |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value — consumed current / 1 / at rated supply voltage / maximum | 1 A |
| design of input / wide range input | Yes |
| overvoltage category | Category II |
| buffering time / for rated value of the output current / in the event of power failure / minimum | 50 ms |
| line frequency — 50 Hz | Yes |
| line frequency — 60 Hz | Yes |
| line frequency | 47 ... 63 Hz |
| input current / at rated input voltage 230 V / rated value | 1 A |
| current limitation / of inrush current / at 25 °C / maximum | 35 A |
| fuse protection type / at input | Fuse T 3.15A soldered |
electrical data / output
| voltage curve / at output | Controlled, isolated DC voltage, adjustable from 48 V to 54 V |
| output voltage — 1 / at DC / rated value | 54 V |
| display version / for normal operation | LED green for DC ok |
| behavior of the output voltage / when switching on | Overshoot of Ua < 2 % |
| startup delay time / maximum | 1.5 s |
| voltage increase time / of the output voltage / maximum | 15 ms |
| output current — rated value | 1.6 A |
| output current — rated range | 0 ... 1.8 A |
| supplied active power / typical | 86 W |
| product feature / parallel switching of channels | No |
| number of parallel-switched equipment resources / for increasing the power | 0 |
| efficiency in percent | 89 % |
| power loss [W] | 11 W |
electrical data / closed-loop control
| relative overall tolerance / of the voltage | 1 % |
| residual ripple / maximum | 0.05 V |
| voltage peak / maximum | 0.2 V |
| relative control precision / of the output voltage — on slow fluctuation of input voltage | 0.2 % |
| relative control precision / of the output voltage — on slow fluctuation of ohm loading | 0.5 % |
| relative control precision / of the output voltage — load step of resistive load 50/100/50 % / typical | 0.5 % |
| relative control precision / of the output voltage — with rapid fluctuation of the input voltage by +/- 15% / typical | 0.3 % |
| setting time — load step 50 to 100% / typical | 0.5 ms |
| setting time — load step 100 to 50% / typical | 0.5 ms |
electrical data / protection and monitoring
| design of the overvoltage protection / at output | < 60 V |
| response value current limitation / typical | 1.7 A |
| property of the output / short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
electrical data / safety
| galvanic isolation / between input and output | Yes |
| galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 |
| operating resource protection class | Class I |
| leakage current — maximum | 3.5 mA |
| leakage current — typical | 2 mA |
interfaces
| number of electrical connections — for power supply | 3 |
| number of electrical connections — for signaling contact | 2 |
| type of electrical connection — for signaling contact | Screw terminal 0.5 - 2.5 mm² |
| type of electrical connection — at input | PE / L / N screw-type terminal 0.5 - 2.5 mm² |
| type of electrical connection — at output | 2x + / 2x - , screw-type terminal 0.5 - 2.5 mm² |
signal inputs/outputs
| product component / signaling contact | Yes |
| relay design | Normal open contact (N/O) |
| operating voltage / of the signaling contacts — at DC / rated value | 24 V |
| operating voltage / of the signaling contacts — at DC / maximum | 60 V |
| operational current / of the signaling contacts — at DC / maximum | 0.3 A |
| operational current / of the signaling contacts — at DC / at 30 V / maximum | 0.3 A |

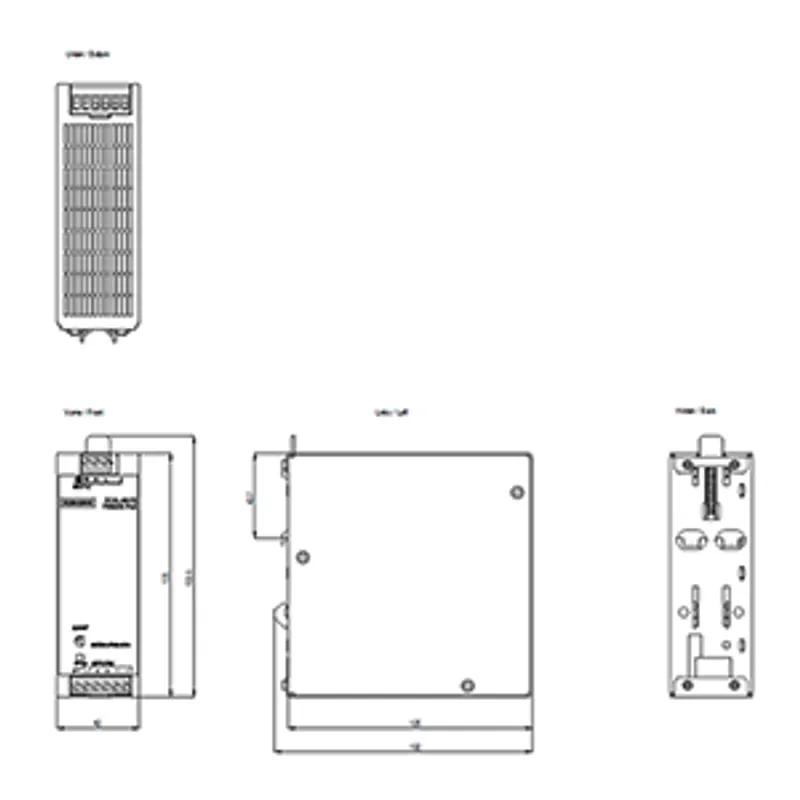

design, dimensions and weights
| width | 42 mm |
| height | 125 mm |
| depth | 125 mm |
| net weight | 0.5 kg |
| product feature / of the enclosure / housing can be lined up | Yes |
| fastening method — 19-inch installation | No |
| fastening method — wall mounting | No |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — S7-300 rail mounting | No |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — note | Convection |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| environmental category / according to IEC 60721 | Climate class 3K3, without condensation |
| protection class IP | IP20 |
standards, specifications, approvals
| standard — for safety / from CSA and UL | cULus listed (UL508, CSA C22.2 No. 107.1) |
| standard — for emitted interference | EN 61000-6-4: 2007 |
| standard — for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-4: 2007 |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | Yes |
| MTBF | 115 a |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 595.15 kg |
| global warming potential [CO2 eq] — during manufacturing | 62.11 kg |
| global warming potential [CO2 eq] — during operation | 532.64 kg |
| global warming potential [CO2 eq] — after end of life | 0.4 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
