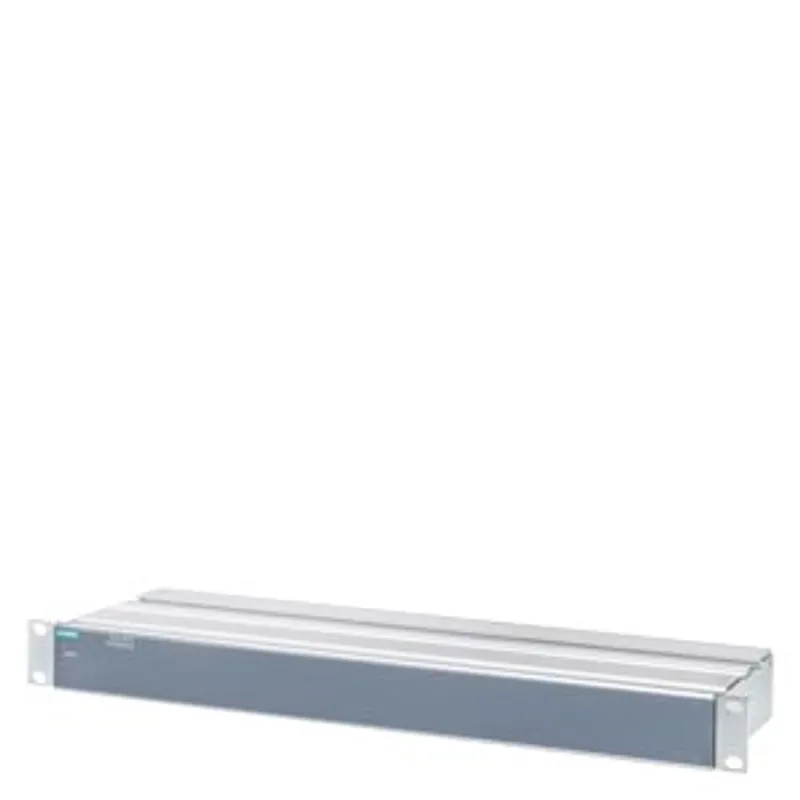

Siemens 6GK5923-0PS00-2RA3
SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.
- MPN
- 6GK5923-0PS00-2RA3
- Category
- Communication Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 6GK5923-0PS00-2RA3?
SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.
Specifications
General
| product brand name | SCALANCE |
| type of current supply | 180 W, input: 100 ... 240 V AC, 50/60 Hz, output: 54 V / 4 A DC |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5923-0PS00-2RA3 |
| suitability for use | Power supply for PoE |
electrical data
| product category | Power supply |
electrical data / input
| voltage curve / at input | AC single phase |
| supply voltage / 1 / rated value | 230 V |
| supply voltage / 1 / rated value — supply voltage / 1 / rated value | 85 ... 264 V |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value — consumed current / 1 / at rated supply voltage / maximum | 4 A |
| design of input / wide range input | Yes |
| overvoltage category | Category II |
| buffering time / for rated value of the output current / in the event of power failure / minimum | 20 ms |
| line frequency — 50 Hz | Yes |
| line frequency — 60 Hz | Yes |
| line frequency | 47 ... 63 Hz |
| input current / at rated input voltage 230 V / rated value | 4 A |
| current limitation / of inrush current / at 25 °C / maximum | 25 A |
| fuse protection type / at input | Fuse T 4A soldered in |
electrical data / output
| voltage curve / at output | linear falling (56V at 0A, 54V at 4A) |
| output voltage — 1 / at DC / rated value | 54 V |
| display version / for normal operation | LED green for DC ok |
| output current — rated value | 4 A |
| output current — rated range | 0 ... 4 A |
| supplied active power / typical | 180 W |
| product feature / parallel switching of channels | Yes |
| number of parallel-switched equipment resources / for increasing the power | 2 |
| power loss [W] | 24 W |
electrical data / closed-loop control
| relative overall tolerance / of the voltage | 3 % |
electrical data / protection and monitoring
| design of the overvoltage protection / at output | < 60 V |
| property of the output / short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
electrical data / safety
| galvanic isolation / between input and output | Yes |
| galvanic isolation | Input to output: 4 kV, input to PE 2.5 kV, output to PE: 2.25 kV |
interfaces
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for signaling contact | 0 |
| type of electrical connection — for power supply | IEC plug |
| type of electrical connection — at output | 2-pole terminal block |
signal inputs/outputs
| product component / signaling contact | No |

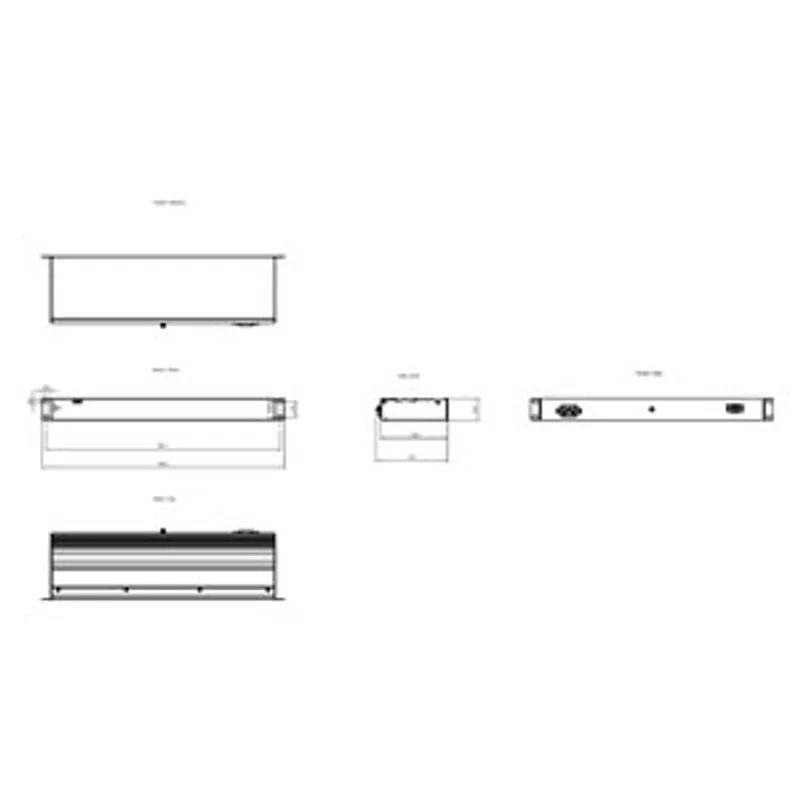

design, dimensions and weights
| design | 19-inch rack |
| width | 446 mm |
| height | 43.6 mm |
| depth | 133 mm |
| net weight | 2.8 kg |
| fastening method — 19-inch installation | Yes |
| fastening method — DIN-rail mounting | Yes |
ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +60 °C |
| ambient temperature — during transport | -40 ... +60 °C |
| ambient temperature — note | Convection |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| environmental category / according to IEC 60721 | Climate class 3K3, without condensation |
| protection class IP | IP30 |
standards, specifications, approvals
| standard — for safety / from CSA and UL | UL 62368-1:2014 (Second Edition) Report No. E115352, IEC 62368-1:2014 (Second Edition) |
| standard — for emitted interference | EN 61000-6-4:2007 +A1:2011 |
| standard — for interference immunity | EN 61000-6-2:2019 |
| certificate of suitability | EN 61000-6-4: 2007 |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | Yes |
| MTBF | 110 a; at full load, 40 °C |
| reference temperature | 40 °C |
| percental operating load | 100 % |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 595.15 kg |
| global warming potential [CO2 eq] — during manufacturing | 62.11 kg |
| global warming potential [CO2 eq] — during operation | 532.64 kg |
| global warming potential [CO2 eq] — after end of life | 0.4 kg |
accessories
| accessories / included | Connecting cable power supply / switch |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
