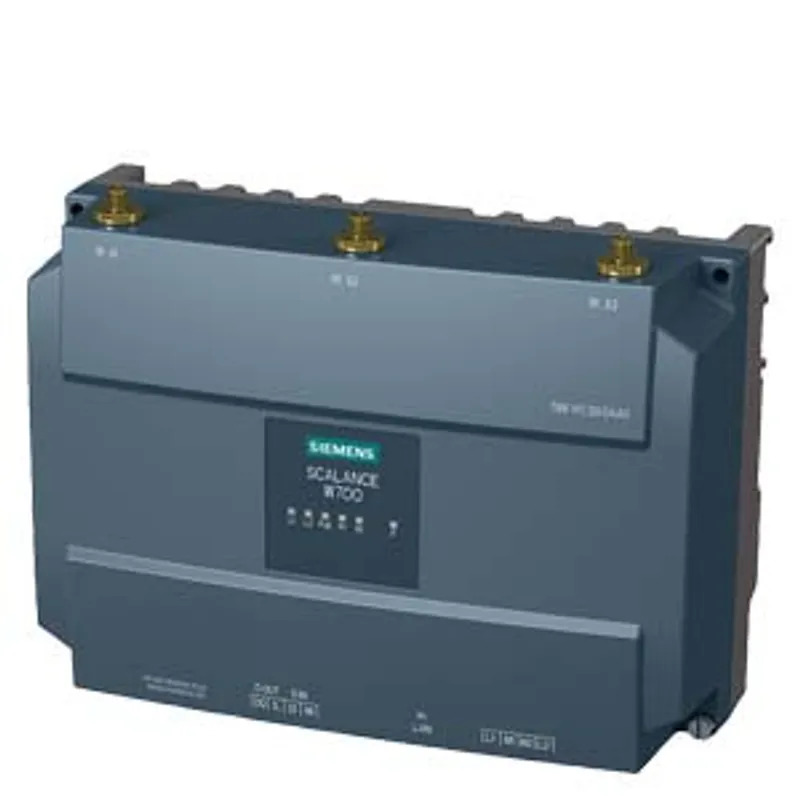

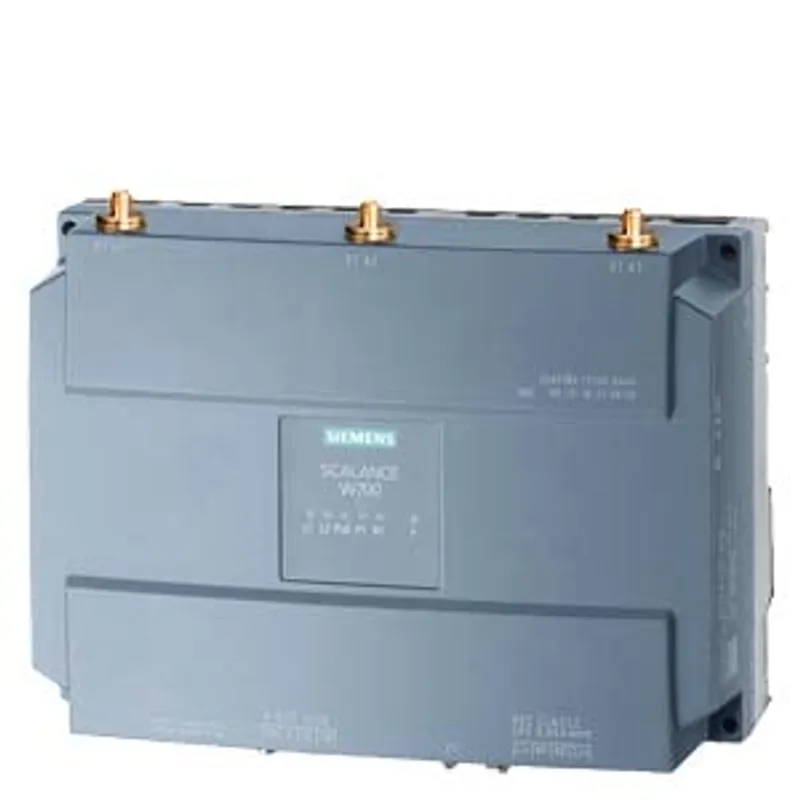

Siemens 6GK5788-1FC00-0AA0

Product announced for discontinuation; IWLAN Access Point, SCALANCE W788-1 RJ45, 1 radio

MPN: 6GK5788-1FC00-0AA0
Category: SCALANCE W788 RJ45 for the control cabinet

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5788-1FC00-0AA0?

product announced for discontinuation; IWLAN Access Point, SCALANCE W788-1 RJ45, 1 radio, 3 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross 450 Mbps per radio, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, joint block, IP30, -20..+60 °C, plug slot, WPA2/802.11i/e, signaling contact observe national approvals! cert ID: RAPN-W1-RJ-E3, includes: MPCIE-R1-ABGN-U3, scope of delivery: manuals on CD-ROM, German/English, 2x joint blocks; for operation outside of USA/Israel

Specifications

General

product brand name	SCALANCE
Technical Product Detail Page	https://i.siemens.com/1P6GK5788-1FC00-0AA0

transfer rate

transfer rate — with WLAN / maximum	450 Mbit/s
transfer rate — for Industrial Ethernet	10, 100, 1000 Mbit/s

interfaces

number of electrical connections — for network components or terminal equipment	1
number of electrical connections — for power supply	1
number of electrical connections — for redundant voltage supply	1
type of electrical connection — for network components or terminal equipment	RJ45 socket
type of electrical connection — for power supply	4-pole screw terminal, PoE

memory

design of the removable storage — C-PLUG	Yes
design of the removable storage — KEY-PLUG	Yes

interfaces / wireless

number of radio cards / permanently installed	1
transmission mode / for multiple input multiple output (MIMO)	3x3
number of spatial streams	3
number of electrical connections / for external antenna(s)	3
type of electrical connection / for external antenna(s)	R-SMA (socket)
product feature / external antenna can be mounted directly on device	Yes

signal inputs/outputs

number of digital inputs	1
number of digital outputs	1
type of electrical connection / at the digital inputs/outputs	4-pole screw terminal
input voltage / at digital input / at DC	24 V; safety extra-low voltage
output voltage / at digital output / at DC / maximum	24 V; 1A

supply voltage, current consumption, power loss

type of voltage / of the supply voltage	DC
supply voltage — from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af	48 V
supply voltage — from Power-over-Ethernet according to IEEE802.3at for type 2	50 V
consumed current — at DC / at 24 V / typical	0.45 A
consumed current — with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical	0.22 A
power loss [W] — at DC / at 24 V / typical	10.7 W
supply voltage / 1 — from terminal block	19.2 V
supply voltage / 2 — from terminal block	28.8 V

ambient conditions

ambient temperature — during operation	-20 ... +60 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum	90 %
ambient condition / for operation	When used under hazardous conditions (Zone 2), the SCALANCE W788-x or W748-x product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529.
protection class IP	IP30

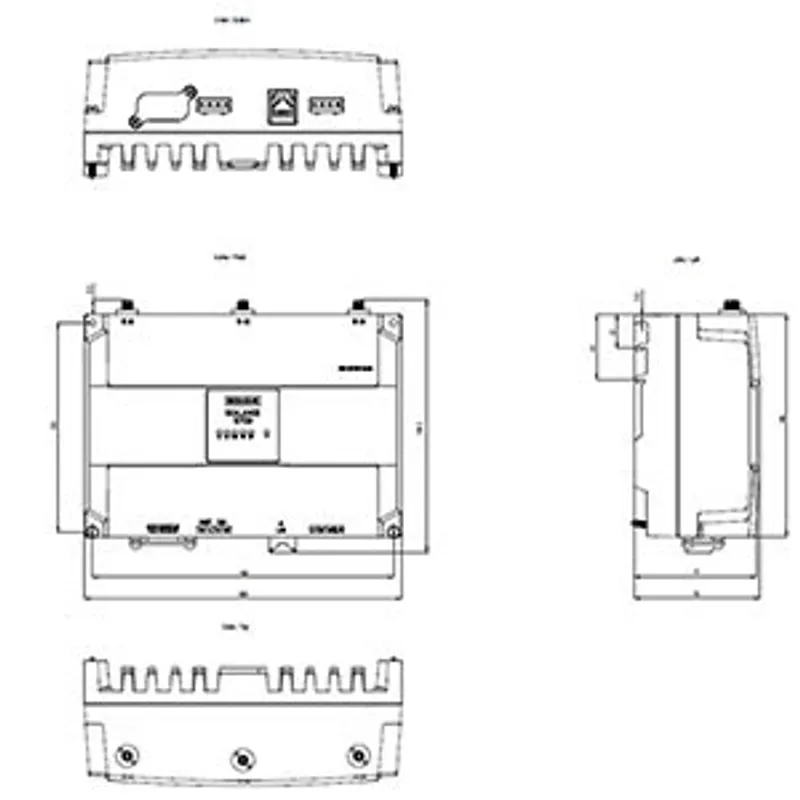

design, dimensions and weights

width / of the enclosure / without antenna	200 mm
height / of the enclosure / without antenna	158 mm
depth / of the enclosure / without antenna	79 mm
net weight	1.7 kg
fastening method	For 35 mm DIN rail mounting an additional mounting adapter is required
fastening method — S7-300 rail mounting	Yes
fastening method — S7-1500 rail mounting	Yes
fastening method — 35 mm DIN-rail mounting	Yes
fastening method — wall mounting	Yes

radio frequencies

operating frequency — for WLAN in 2.4 GHz frequency band	2.41 ... 2.48 GHz; depending on the country approvals
operating frequency — for WLAN in 5 GHz frequency band	4.9 ... 5.8 GHz; depending on the country approvals

product features, product functions, product components / general

product function / Access Point Mode	Yes
product function / client Mode	Yes
number of SSIDs	8
product function — iPCF Access Point	Yes; Only in combination with the 'KEY-PLUG W780 iFeatures'
product function — iPCF client	Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'
product function — iPCF-MC Access Point	No
product function — iPCF-MC client	Yes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'
number of iPCF-capable radio modules	1
product function / iREF	Yes; In combination only with 'KEY-PLUG W780 iFeatures'
number of iREF-capable radio modules	1
product function / iPRP	Yes; In combination with the 'KEY-PLUG W780 iFeatures' only

product functions / management, configuration, engineering

number of manageable IP addresses / in client	8
product function — CLI	Yes
product function — web-based management	Yes
product function — MIB support	Yes
product function — TRAPs via email	Yes
product function — configuration with STEP 7	Yes
product function — configuration with STEP 7 in the TIA Portal	Yes
product function — operation with IWLAN controller	No
product function — operation with Enterasys WLAN controller	No
product function — forced roaming on IP down with IWLAN	Yes
product function — forced roaming on link down with IWLAN	Yes
product function — WDS	Yes
protocol / is supported — Address Resolution Protocol (ARP)	Yes
protocol / is supported — ICMP	Yes
protocol / is supported — Telnet	Yes
protocol / is supported — HTTP	Yes
protocol / is supported — HTTPS	Yes
protocol / is supported — TFTP	Yes
protocol / is supported — DCP	Yes
protocol / is supported — LLDP	Yes
identification & maintenance function — I&M0 - device-specific information	Yes
identification & maintenance function — I&M1 - higher level designation/location designation	Yes
product function / is supported / identification link	Yes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function — PROFINET IO diagnosis	Yes
product function — link check	No
product function — connection monitoring IP-Alive	No
product function — localization via Aeroscout	Yes
product function — SysLog	Yes
protocol / is supported — SNMP v1	Yes
protocol / is supported — SNMP v2	Yes
protocol / is supported — SNMP v3	Yes

product functions / VLAN

product function — function VLAN with IWLAN

Yes

product functions / DHCP

product function — DHCP client	Yes
product function — DHCP server	Yes
product function — DHCP Option 82	Yes

product functions / redundancy

protocol / is supported — STP/RSTP	Yes
protocol / is supported — MSTP	Yes
protocol / is supported — RSTP	Yes

product functions / security

product function — ACL - MAC-based	Yes
product function — management security, ACL-IP based	Yes
product function — IEEE 802.1x (radius)	Yes
product function — NAT/NAPT	No
product function — access protection according to IEEE802.11i	Yes
product function — WPA/WPA2	Yes
product function — TKIP/AES	Yes
protocol / is supported — SSH	Yes
protocol / is supported — RADIUS	Yes

product functions / time

protocol / is supported — NTP	Yes
protocol / is supported — SNTP	Yes
protocol / is supported — SIMATIC time synchronization (SIMATIC Time)	Yes

standards, specifications, approvals

standard — for FM	FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
standard — for safety / from CSA and UL	UL 60950-1 E115352, CSA C22.2 No. 60950-1
certificate of suitability — EC Declaration of Conformity	Yes
certificate of suitability — CE marking	Yes
certificate of suitability — C-Tick	Yes
certificate of suitability — E1 approval	Yes
certificate of suitability — railway application in accordance with EN 50155	No
certificate of suitability — railway application in accordance with EN 50121-4	No
certificate of suitability — NEMA TS2	No
certificate of suitability — IEC 61375	No
certificate of suitability — IEC 61850-3	No
certificate of suitability — NEMA4X	No
certificate of suitability — Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af	Yes
certificate of suitability — Power-over-Ethernet according to IEEE802.3at for type 2	Yes
standard for wireless communication — IEEE 802.11a	Yes
standard for wireless communication — IEEE 802.11b	Yes
standard for wireless communication — IEEE 802.11e	Yes
standard for wireless communication — IEEE 802.11g	Yes
standard for wireless communication — IEEE 802.11h	Yes
standard for wireless communication — IEEE 802.11i	Yes
standard for wireless communication — IEEE 802.11n	Yes
wireless approval	You will find the current list of countries at: www.siemens.de/funkzulassungen

standards, specifications, approvals / marine classification

Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — French marine classification society (BV)	Yes
Marine classification association — DNV GL	Yes
Marine classification association — Korean Register of Shipping (KRS)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	Yes
Marine classification association — Nippon Kaiji Kyokai (NK)	Yes
Marine classification association — Polski Rejestr Statkow (PRS)	Yes
Marine classification association — Royal Institution of Naval Architects (RINA)	Yes

standards, specifications, approvals / hazardous environments

standard / for hazardous zone	EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
standard / for hazardous zone — from CSA and UL	ANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standard	Yes; GB3836.1, GB3836.8
certificate of suitability / CCC / for hazardous zone according to GB standard — as marking	Ex nA IIC T4 Gc

accessories

24 V DC screw terminal and screw terminal for digital input and output included in the scope of delivery

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: WLAN country approval	https://www.siemens.com/wireless-approvals
internet link — to the website: IWLAN	https://www.siemens.com/iwlan
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
