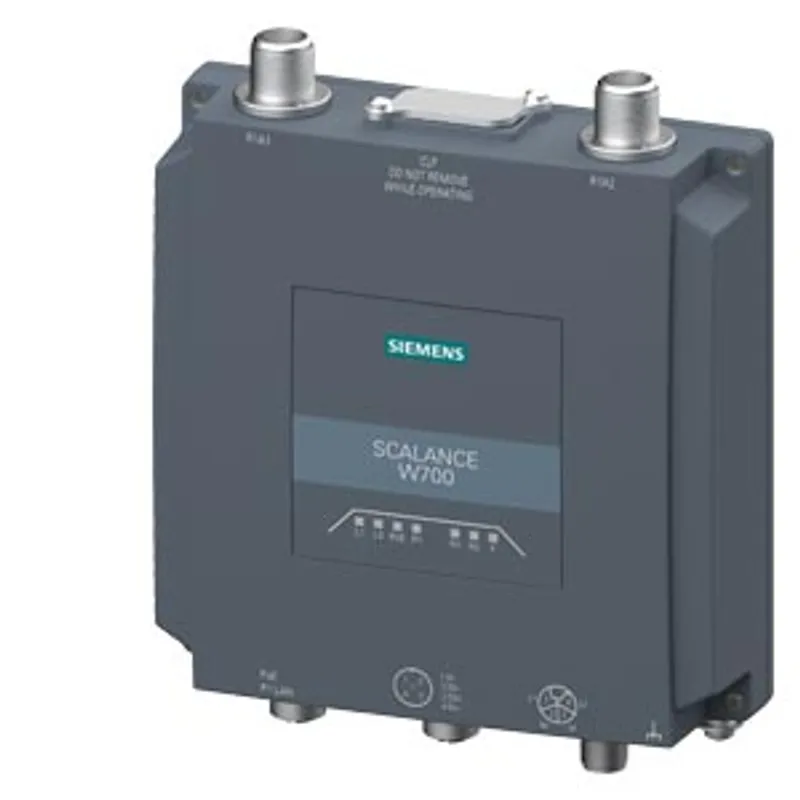

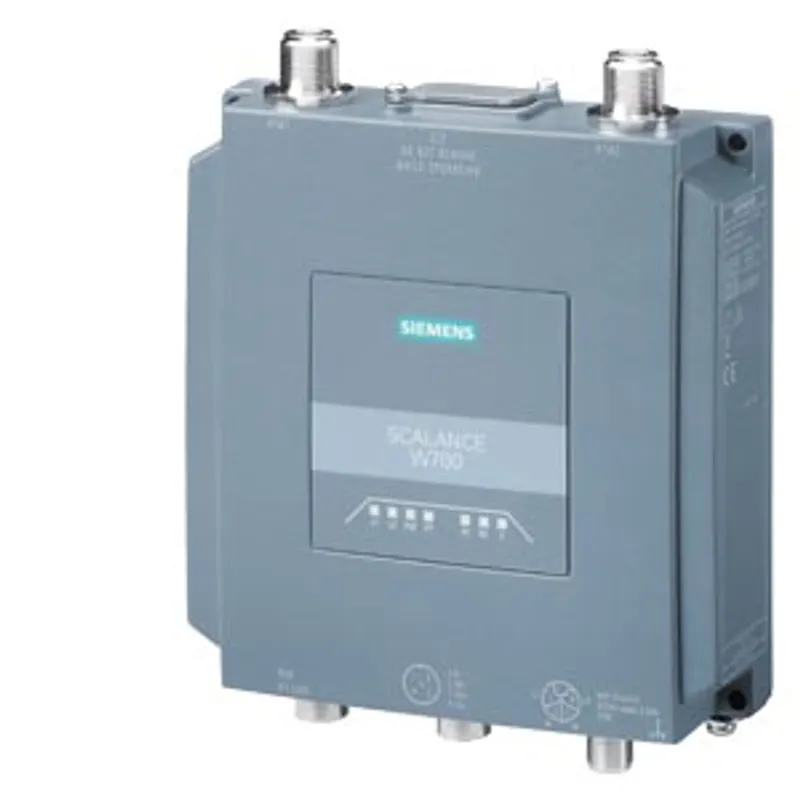

Siemens 6GK5766-1GE00-3DB0
IWLAN client, SCALANCE WUM766-1 1 radio, 2.4/5 GHz, 2 N-Connect connections, iFeatures support via CLP
- MPN
- 6GK5766-1GE00-3DB0
- Category
- SCALANCE WUM766-1 for indoor use
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 6GK5766-1GE00-3DB0?
IWLAN client, SCALANCE WUM766-1 1 radio, 2.4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket, redundant 24 V DC, M12 L-coded PoE, IP65, -30...+60 °C, CLP slot, DI/DO, A-coded, observe national approvals! cert ID: MSAX65-W1-M12-E2, FCCID: LYHMSAX65V1, operation in the USA , scope of delivery: sealing caps for connections
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5766-1GE00-3DB0 |
| suitability for use | www.siemens.com/iwlan |
transfer rate
| transfer rate — with WLAN / maximum | 1201 Mbit/s |
| transfer rate — for Industrial Ethernet | 10, 100, 1000 Mbit/s |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum / note | 1 |
| number of electrical/optical connections / for gigabit Ethernet / maximum | 1 |
| number of electrical connections — for network components or terminal equipment | 1 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 1 |
| type of electrical connection — for network components or terminal equipment | M12 interface (8-pole, X-coded), PoE |
| type of electrical connection — for redundant voltage supply | M12 interface (4-pin, L-coded) |
memory
| design of the removable storage — CLP | Yes |
| design of the removable storage — CLP iFeatures | Yes |
interfaces / wireless
| number of radio cards / permanently installed | 2 |
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | N-Connect (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
signal inputs/outputs
| number of digital inputs | 1 |
| number of digital outputs | 1 |
| type of electrical connection / at the digital inputs/outputs | M12 interface (4-pin, A-coded) |
| input voltage / at digital input / at DC | -30 ... +30 V |
| output voltage / at digital output / at DC / maximum | 24 V; 0,5 A |
| operational current / of the signaling contacts / at DC / at 30 V / maximum | 0.008 A |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | Redundant 24 V DC Power Supply, M12, L-coded |
| supply voltage — from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| consumed current — at DC / at 24 V | 0.55 A |
| consumed current — at DC / at 24 V / sleep mode / maximum | 0.013 A |
| consumed current — with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.27 A |
| power loss [W] — at DC / at 24 V | 13.2 W |
| power loss [W] — at DC / at 24 V / sleep mode / maximum | 0.3 W |
| power loss [W] — with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 12.96 W |
| supply voltage / 1 — from M12 power Connector (L-coded) for redundant voltage supply | 24 V |
| supply voltage / 1 / rated value | 24 V |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 2 — from M12 power Connector (L-coded) for redundant voltage supply | 24 V |
| supply voltage / 2 / rated value | 24 V |
| supply voltage / 2 / rated value — type of voltage / 2 / of the supply voltage | DC |
| supply voltage / 3 / rated value | 48 V |
| supply voltage / 3 / rated value — type of voltage / 3 / of the supply voltage | DC, PoE |
ambient conditions
| ambient temperature — during operation | -30 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| protection class IP | IP65 |

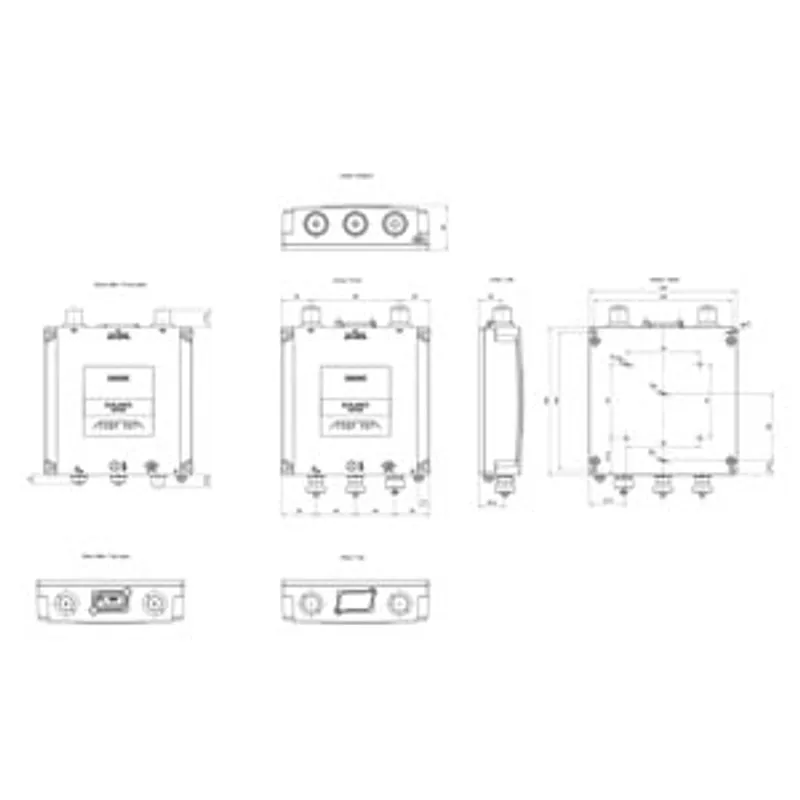

design, dimensions and weights
| width | 150 mm |
| height | 179.5 mm |
| depth | 45 mm |
| width / of the enclosure / without antenna | 150 mm |
| height / of the enclosure / without antenna | 179.5 mm |
| depth / of the enclosure / without antenna | 45 mm |
| net weight | 1.1 kg |
| fastening method | wall mounting and assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter. |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | Yes |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — VESA mounting | Yes; 75 x 75mm |
radio frequencies
| operating frequency — for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
| operating frequency — for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
product features, product functions, product components / general
| product function / Access Point Mode | No |
| product function / client Mode | Yes |
| number of SSIDs | 1 |
| product function — iPCF Access Point | No |
| product function — iPCF-2 access point | No; iPCF-2 is not compatible with iPCF. See documentation for function description. |
| product function — iPCF client | No |
| product function — iPCF-2 client | Yes; iPCF-2 is not compatible with iPCF. See documentation for function description. |
| product function — iPCF-MC Access Point | No |
| product function / iPRP | Yes |
product functions / management, configuration, engineering
| number of manageable IP addresses / in client | 2 |
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — configuration with STEP 7 in the TIA Portal | Yes |
| product function — WDS | No |
| protocol / is supported — Address Resolution Protocol (ARP) | Yes |
| protocol / is supported — ICMP | Yes |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
product functions / diagnostics
| product function — PROFINET IO diagnosis | Yes |
| product function — SysLog | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
product functions / VLAN
| product function — function VLAN with IWLAN | Yes |
| number of VLANs / maximum | 24 |
product functions / DHCP
| product function — DHCP client | Yes |
product functions / redundancy
| protocol / is supported — STP/RSTP | Yes |
| protocol / is supported — MSTP | Yes |
| protocol / is supported — RSTP | Yes |
| product function — redundancy procedure MSTP | Yes |
product functions / security
| product function — management security, ACL-IP based | No |
| product function — IEEE 802.1x (radius) | Yes |
| product function — NAT/NAPT | Yes |
| product function — access protection according to IEEE802.11i | Yes |
| product function — WPA/WPA2 | Yes |
| product function — WPA3 | Yes |
| product function — TKIP/AES | Yes |
| product function — RADIUS client | Yes |
| protocol / is supported — SSH | Yes |
| key length — with SSL | 4096 bit |
product functions / time
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
| protocol / is supported — SIMATIC time synchronization (SIMATIC Time) | Yes |
standards, specifications, approvals
| certificate of suitability — EC Declaration of Conformity | Yes |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — E1 approval | Yes |
| certificate of suitability — Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | Yes |
| standard for wireless communication — IEEE 802.11a | Yes |
| standard for wireless communication — IEEE 802.11b | Yes |
| standard for wireless communication — IEEE 802.11e | Yes |
| standard for wireless communication — IEEE 802.11g | Yes |
| standard for wireless communication — IEEE 802.11h | Yes |
| standard for wireless communication — IEEE 802.11i | Yes |
| standard for wireless communication — IEEE 802.11n | Yes |
| standard for wireless communication — IEEE 802.11ac | Yes |
| standard for wireless communication — IEEE 802.11ax | Yes |
| standard for wireless communication — IEEE 802.11r | Yes |
| wireless approval | You will find the current list of countries at: www.siemens.com/wireless-approvals or directly on the device |
| MTBF | 24 a |
| reference temperature | 40 °C |
standards, specifications, approvals / hazardous environments
| standard / for hazardous zone | EN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc |
| standard / for hazardous zone — from CSA and UL | UL121201, CAN/CSA C22.2 No.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 394.89 kg |
| global warming potential [CO2 eq] — during manufacturing | 33.7 kg |
| global warming potential [CO2 eq] — during operation | 361 kg |
| global warming potential [CO2 eq] — after end of life | 0.19 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: WLAN country approval | https://www.siemens.com/wireless-approvals |
| internet link — to the website: IWLAN | https://www.siemens.com/iwlan |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
