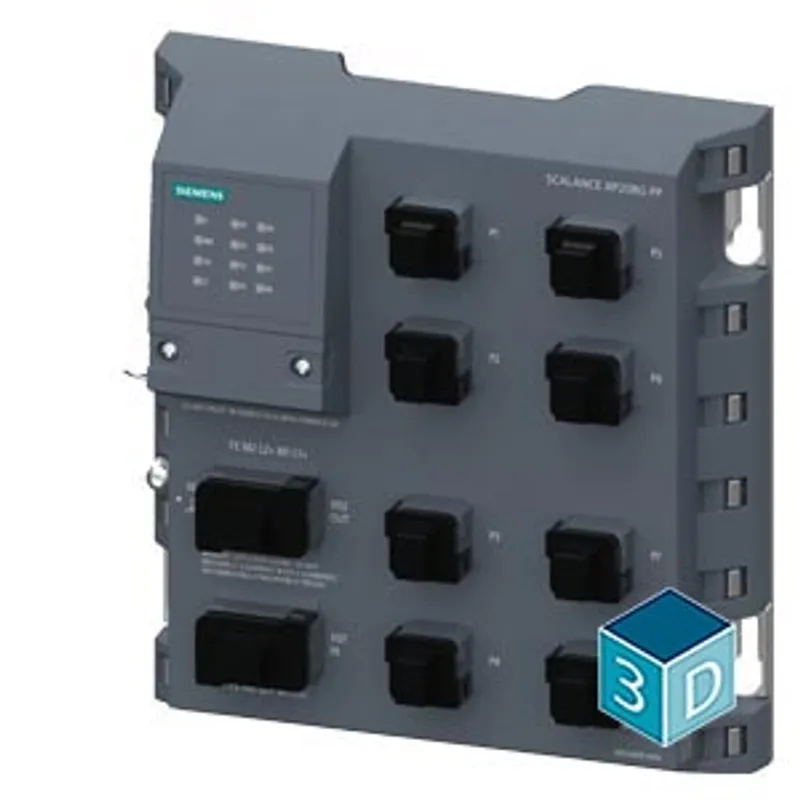

Siemens 6GK5208-0JA00-2AS6
SCALANCE XP208G PP, managed layer 2 IE switch, 8x10/100/1000 Mbps, AIDA push/pull ports, IP65
- MPN
- 6GK5208-0JA00-2AS6
- Category
- SCALANCE XP-200 managed
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5208-0JA00-2AS6?
SCALANCE XP208G PP, managed layer 2 IE switch, 8x10/100/1000 Mbps, AIDA push/pull ports, IP65, -40 °C to +70 °C, power supply in/out, LED diagnostics, PROFINET IO device, network management, can be operated in redundant ring, dust caps, C-PLUG optional
Specifications
product type designation
| product brand name | SCALANCE |
| product type designation | XP208G PP |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5208-0JA00-2AS6 |
transfer rate
| transfer rate | 10, 100, 1000 Mbit/s |
interfaces / for communication / integrated
| number of electrical connections — for network components or terminal equipment | 8; RJ45, push-pull |
| number of 10/100/1000 Mbit/s RJ45 ports | 8; RJ45, push-pull |
interfaces / other
| number of electrical connections — for operator console | 0 |
| number of electrical connections — for signaling contact | 0 |
| number of electrical connections — for power supply | 2 |
| type of electrical connection — for power supply | 5-pole push-pull connector PRO socket |
| design of the removable storage — C-PLUG | Yes |
| product function / device replacement with replacement of the storage medium | Yes |
supply voltage, current consumption, power loss
| type of voltage / 1 / of the supply voltage | DC |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | 7.7 W |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / at rated supply voltage / maximum | 0.32 A |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range | 19.2 ... 31.2 |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | 0.32 A |
| type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply | 5-pole push-pull connector PRO socket |
| type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input | Yes |
| type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage | 1.5 A (non-replaceable fuse F) |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP65 |

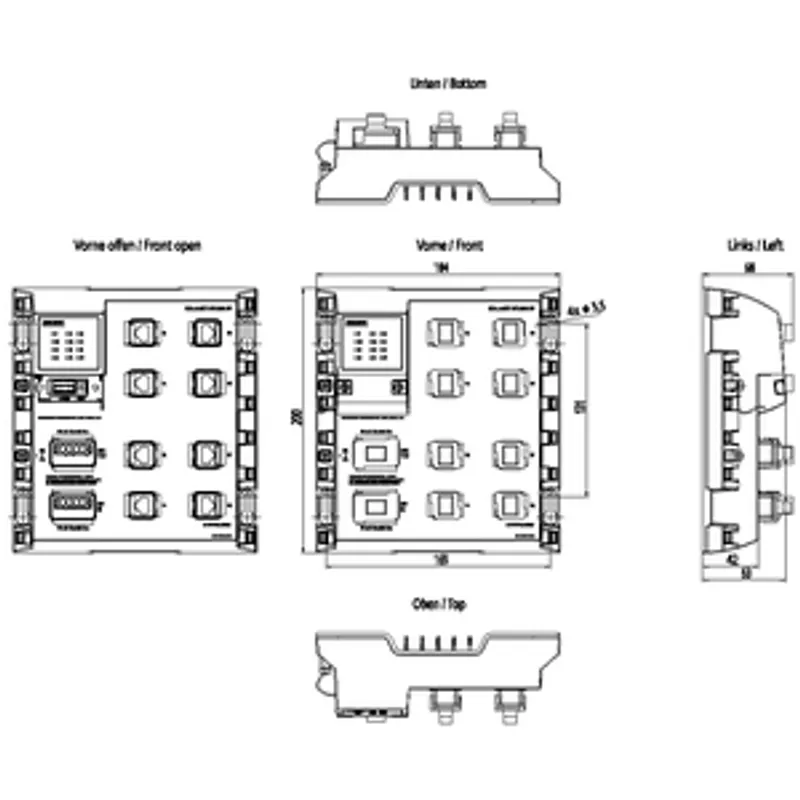

design, dimensions and weights
| design | compact |
| width | 185 mm |
| height | 200 mm |
| depth | 63 mm |
| net weight | 1.05 kg |
| material / of the enclosure | Aluminum |
| fastening method — wall mounting | Yes |
product features, product functions, product components / general
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function — QoS according to DSCP | Yes |
| product feature — Cut Through switching method | No |
| product feature — Store & Forward switching method | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — RMON | Yes |
| product function — SMTP server | No |
| product function — port mirroring | Yes |
| product function — multiport mirroring | Yes |
| product function — CoS | Yes |
| product function — with IRT / PROFINET IO switch | No |
| product function — PROFINET IO diagnosis | Yes |
| product function — switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 10240 byte |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — SFTP | Yes |
| protocol / is supported — BOOTP | Yes |
| protocol / is supported — GMRP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| protocol / is supported — EtherNet/IP | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
| protocol / is supported — IGMP (snooping/querier) | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
product functions / diagnostics
| product function — port diagnostics | Yes |
| product function — statistics Packet Size | Yes |
| product function — statistics packet type | Yes |
| product function — error statistics | Yes |
| product function — SysLog | Yes |
product functions / VLAN
| product function — VLAN - port based | Yes |
| product function — VLAN - protocol-based | No |
| product function — VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
product functions / DHCP
| product function — DHCP server | Yes |
| product function — DHCP client | Yes |
| product function — DHCP Option 82 | Yes |
| product function — DHCP Option 66 | Yes |
| product function — DHCP Option 67 | Yes |
product functions / redundancy
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function — media redundancy protocol (MRP) with redundancy manager | Yes |
| product function — Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function — of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function — of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function — ring redundancy | Yes |
| product function — high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function — high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function — redundancy procedure STP | Yes |
| product function — redundancy procedure RSTP | Yes |
| product function — redundancy procedure RSTP+ | Yes |
| product function — redundancy procedure MSTP | Yes |
| product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function — passive listening | Yes |
| protocol / is supported — LACP | Yes |
system modification during operation
| product function / configuration in RUN via CiR/H-CiR | Yes |
product functions / security
| product function — IEEE 802.1x (radius) | Yes |
| product function — RADIUS client | Yes |
| product function — broadcast/multicast/unicast limiter | Yes |
| product function — broadcast blocking | Yes |
| protocol / is supported — SSH | Yes |
| protocol / is supported — SSL | Yes |
product functions / time
| product function — SICLOCK support | Yes |
| product function — NTP-client | Yes |
| product function — SNTP client | Yes |
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
| protocol / is supported — IEEE 1588 profile default | Yes |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UKCA marking | Yes |
| certificate of suitability — cULus approval | Yes |
| certificate of suitability — KC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| standard — for EMC interference emission | EN 61000-6-4 (Class A) |
| standard — for immunity to EMC | EN 61000-6-2 |
| standard — for safety / from CSA and UL | UL-61010-2 E85972; UL 62368-1 E115352, CSA C22.2 No. 62368-1 |
standards, specifications, approvals / hazardous environments
| certificate of suitability — ATEX | Yes |
| certificate of suitability — UKEX | Yes |
| certificate of suitability — IECEx | Yes |
| certificate of suitability — FM registration | Yes |
standards, specifications, approvals / other
| certificate of suitability — RoHS conformity | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 239.626 kg |
| global warming potential [CO2 eq] — during manufacturing | 27.2 kg |
| global warming potential [CO2 eq] — during operation | 211 kg |
| global warming potential [CO2 eq] — after end of life | 0.838 kg |
product functions / general
| MTBF | 55 a |
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals / Certificates
| global warming potential [CO2 eq] / during manufacturing | 27.2 kg |
| global warming potential [CO2 eq] / during sales | 0.588 kg |
| global warming potential [CO2 eq] / during operation | 211 kg |
| global warming potential [CO2 eq] / after end of life | 0.838 kg |
| global warming potential [CO2 eq] / total | 239.626 kg |
