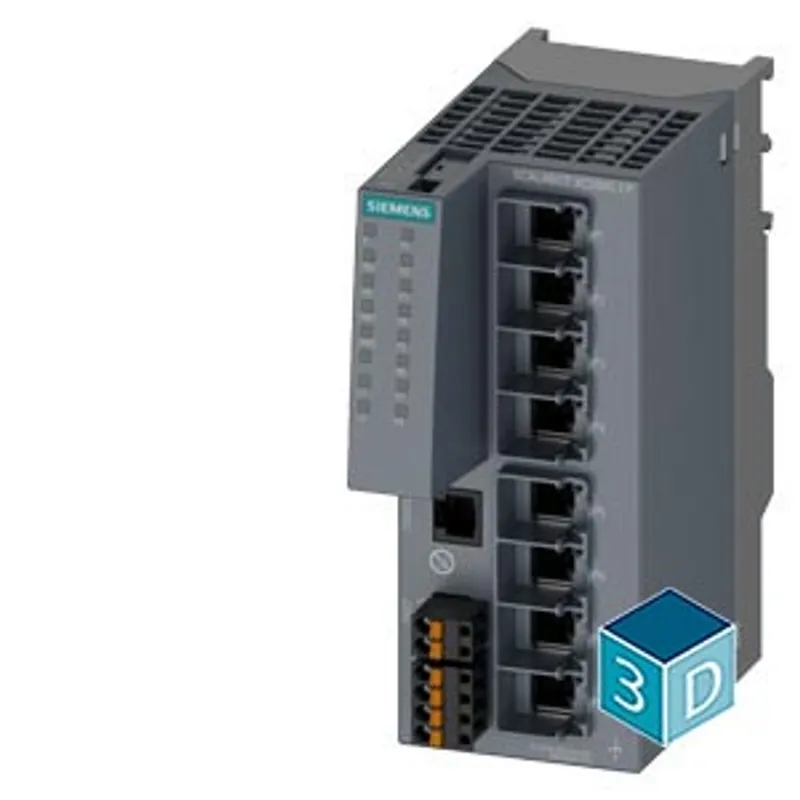

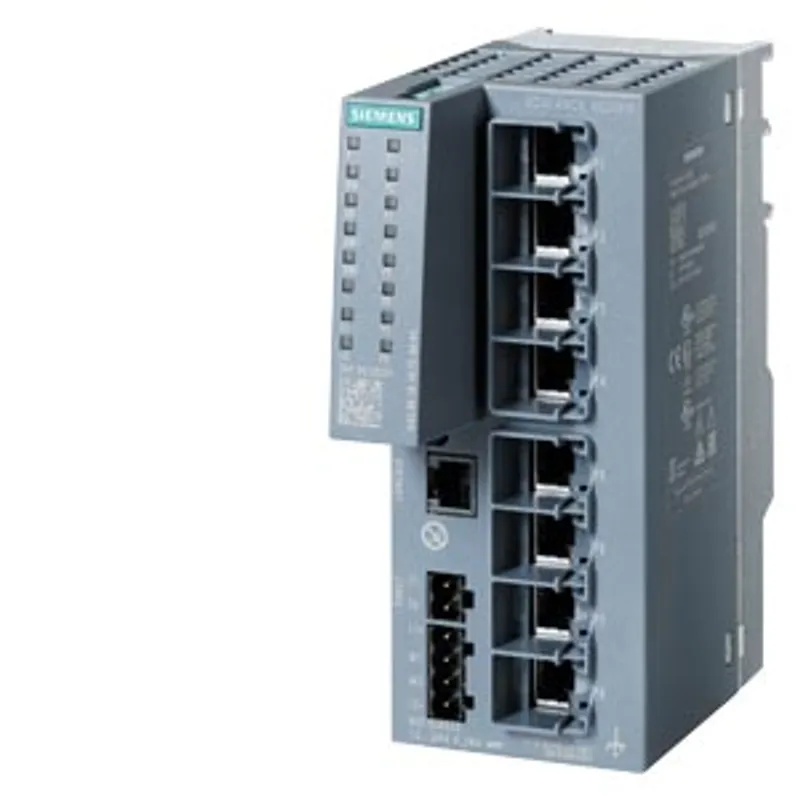

Siemens 6GK5208-0GA00-2TC2
SCALANCE XC208G (E/IP) manageable Layer 2 IE switch; IEC 62443-4-2 certified; 8x 10/100/1000 Mbps RJ45 ports
- MPN
- 6GK5208-0GA00-2TC2
- Category
- SCALANCE XC-200 managed
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5208-0GA00-2TC2?
SCALANCE XC208G (E/IP) manageable Layer 2 IE switch; IEC 62443-4-2 certified; 8x 10/100/1000 Mbps RJ45 ports; 1x console port; diagnostics LED; redundant power supply; temperature range -40 °C to +70 °C; assembly: DIN rail/S7 mounting rail/wall; redundancy functions; Office features (RSTP, VLAN,...); PROFINET IO device Ethernet/IP-compliant C-plug slot; Default EtherNet/IP. IEEE 1588v2 PTP
Specifications
product type designation
| product brand name | SCALANCE |
| product type designation | XC208G (E/IP def.) |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5208-0GA00-2TC2 |
transfer rate
| transfer rate | 10, 100, 1000 Mbit/s |
interfaces / for communication / integrated
| number of electrical connections — for network components or terminal equipment | 8; RJ45 |
| number of 10/100/1000 Mbit/s RJ45 ports — with securing collar | 8 |
interfaces / other
| number of electrical connections — for operator console | 1 |
| number of electrical connections — for signaling contact | 1 |
| number of electrical connections — for power supply | 1 |
| type of electrical connection — for operator console | RJ11 |
| type of electrical connection — for signaling contact | 2-pole terminal block |
| type of electrical connection — for power supply | 4-pole terminal block |
| design of the removable storage — C-PLUG | Yes |
| operating voltage / of the signaling contacts — at DC / rated value | 24 V |
| operational current / of the signaling contacts — at DC / maximum | 0.1 A |
supply voltage, current consumption, power loss
| product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | 4.3 W |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / at rated supply voltage / maximum | 0.26 A |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range | 9.6 ... 31.2 |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | 0.36 A |
| type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply | 4-pole terminal block |
| type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input | Yes |
| type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage | 2,5 A / 125 V |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |

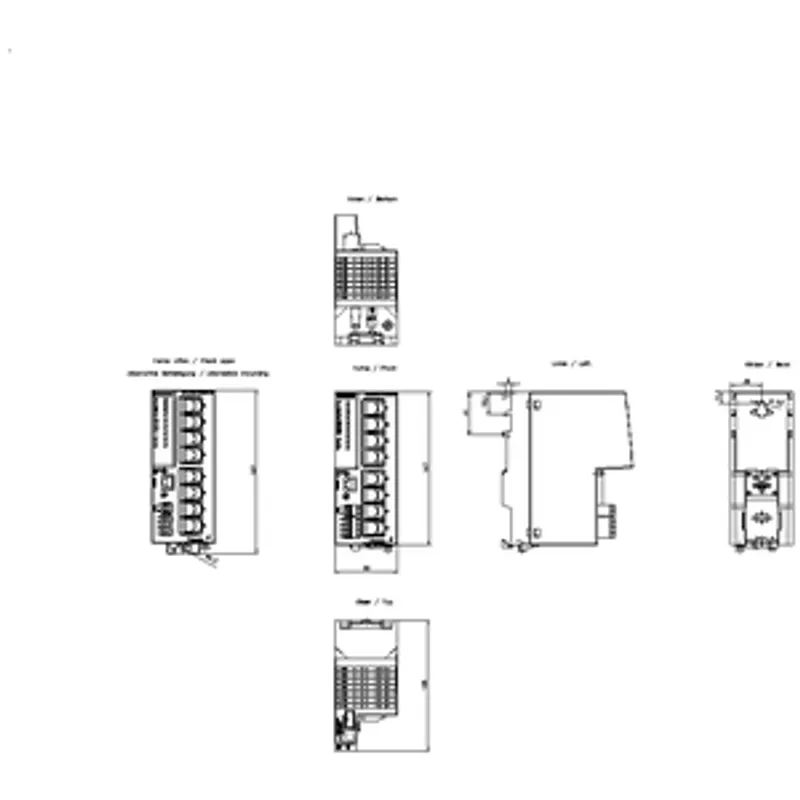

design, dimensions and weights
| design | compact |
| width | 60 mm |
| height | 147 mm |
| depth | 125 mm |
| net weight | 0.52 kg |
| material / of the enclosure | Polycarbonate (PC-GF10) / pressure die cast aluminum |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | Yes |
product features, product functions, product components / general
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
| cascading in cases of star topology | any (depending only on signal propagation time) |
| product function — QoS according to DSCP | Yes |
| product feature — Cut Through switching method | No |
| product feature — Store & Forward switching method | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — RMON | Yes |
| product function — SMTP server | No |
| product function — port mirroring | Yes |
| product function — multiport mirroring | Yes |
| product function — CoS | Yes |
| product function — PROFINET IO diagnosis | Yes |
| product function — switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 10240 byte |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — SFTP | Yes |
| protocol / is supported — BOOTP | Yes |
| protocol / is supported — GMRP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| protocol / is supported — EtherNet/IP | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
| protocol / is supported — IGMP (snooping/querier) | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
product functions / diagnostics
| product function — port diagnostics | Yes |
| product function — statistics Packet Size | Yes |
| product function — statistics packet type | Yes |
| product function — error statistics | Yes |
| product function — SysLog | Yes |
product functions / VLAN
| product function — VLAN - port based | Yes |
| product function — VLAN - protocol-based | No |
| product function — VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
product functions / DHCP
| product function — DHCP server | Yes |
| product function — DHCP client | Yes |
| product function — DHCP Option 82 | Yes |
| product function — DHCP Option 66 | Yes |
| product function — DHCP Option 67 | Yes |
product functions / redundancy
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function — media redundancy protocol (MRP) with redundancy manager | Yes |
| product function — Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function — of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| product function — of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function — ring redundancy | Yes |
| product function — high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function — high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function — redundancy procedure STP | Yes |
| product function — redundancy procedure RSTP | Yes |
| product function — redundancy procedure RSTP+ | Yes |
| product function — redundancy procedure MSTP | Yes |
| product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function — passive listening | Yes |
| protocol / is supported — LACP | Yes |
system modification during operation
| product function / configuration in RUN via CiR/H-CiR | Yes |
product functions / security
| product function — IEEE 802.1x (radius) | Yes |
| product function — RADIUS client | Yes |
| product function — broadcast/multicast/unicast limiter | Yes |
| product function — broadcast blocking | Yes |
| protocol / is supported — SSH | Yes |
| protocol / is supported — SSL | Yes |
product functions / time
| product function — SICLOCK support | Yes |
| product function — NTP-client | Yes |
| product function — SNTP client | Yes |
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
| protocol / is supported — IEEE 1588 profile default | Yes |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — cULus approval | Yes |
| certificate of suitability — KC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard — for EMC interference emission | EN 61000-6-4, EN 50121-4 |
| standard — for immunity to EMC | EN 61000-6-2, EN 50121-4 |
| standard — for safety / from CSA and UL | UL 60950-1 E115352, UL-61010-2 E85972 |
standards, specifications, approvals / hazardous environments
| certificate of suitability — ATEX | Yes |
| certificate of suitability — UKEX | Yes |
| certificate of suitability — IECEx | Yes |
| certificate of suitability — ULhazloc approval | Yes |
| certificate of suitability — CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability — FM registration | Yes |
standards, specifications, approvals / other
| certificate of suitability — railway application in accordance with EN 50121-4 | Yes |
| certificate of suitability — RoHS conformity | Yes |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
standards, specifications, approvals / marine classification
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association — French marine classification society (BV) | Yes |
| Marine classification association — Chinese Classification Society (CCS) | Yes |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
| Marine classification association — Korean Register of Shipping (KRS) | Yes |
| Marine classification association — Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association — Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association — Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association — Royal Institution of Naval Architects (RINA) | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 135.7 kg |
| global warming potential [CO2 eq] — during manufacturing | 26.3 kg |
| global warming potential [CO2 eq] — during operation | 109 kg |
| global warming potential [CO2 eq] — after end of life | 0.4 kg |
product functions / general
| MTBF | 54 a |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals / Certificates
| global warming potential [CO2 eq] / during manufacturing | 26.3 kg |
| global warming potential [CO2 eq] / during operation | 109 kg |
| global warming potential [CO2 eq] / after end of life | 0.4 kg |
| global warming potential [CO2 eq] / total | 135.7 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5208-0GA00-2TC2: frequently asked questions
When can 6GK5208-0GA00-2TC2 be shipped?
6GK5208-0GA00-2TC2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK5208-0GA00-2TC2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK5208-0GA00-2TC2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5208-0GA00-2TC2, subject to availability and destination.
More Siemens parts
Siemens 6GK5208-0GA00-2TC2Price and lead time confirmed within 1 business day
Request a Quote
