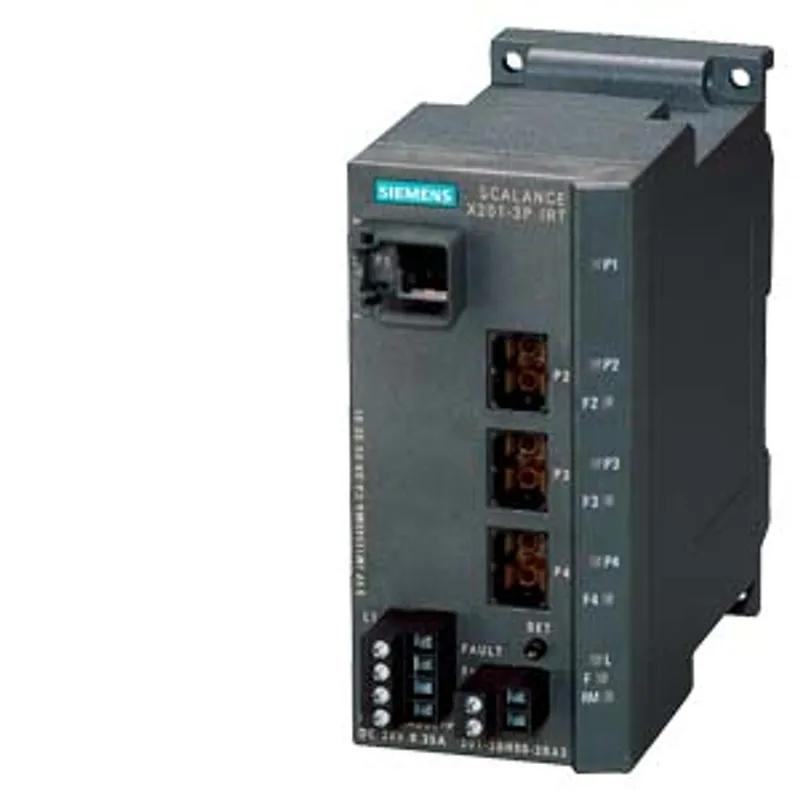

Siemens 6GK5201-3BH00-2BA3
SCALANCE X201-3PIRT managed IE IRT switch, 1x 10/100 Mbit/s RJ45 ports, 3x 100 Mbit/s POF SC RJ ports
- MPN
- 6GK5201-3BH00-2BA3
- Category
- SCALANCE X-200IRT managed
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5201-3BH00-2BA3?
SCALANCE X201-3PIRT managed IE IRT switch, 1x 10/100 Mbit/s RJ45 ports, 3x 100 Mbit/s POF SC RJ ports, Error signaling contact with set pushbutton, Redundant power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-plug optional.
Specifications
product type designation
| product brand name | SCALANCE |
| product type designation | X201-3P IRT |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5201-3BH00-2BA3 |
transfer rate
| transfer rate | 10, 100 Mbit/s |
interfaces / for communication / integrated
| number of electrical connections — for network components or terminal equipment | 1 |
| number of 100 Mbit/s SC-RJ-ports / for POF FOC / with push-pull connection system | 3 |
interfaces / other
| number of electrical connections — for signaling contact | 1 |
| number of electrical connections — for power supply | 1 |
| type of electrical connection — for signaling contact | 2-pole terminal block |
| type of electrical connection — for power supply | 4-pole terminal block |
| design of the removable storage — C-PLUG | Yes |
| operating voltage / of the signaling contacts — at DC / rated value | 24 V |
| operational current / of the signaling contacts — at DC / maximum | 0.1 A |
supply voltage, current consumption, power loss
| product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | 8.4 W |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range | 18 ... 32 |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | 0.35 A |
| type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply | 4-pole terminal block |
| type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input | Yes |
| type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage | 1,1 A / 33 V |
ambient conditions
| ambient temperature — during operation | -25 ... +50 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |

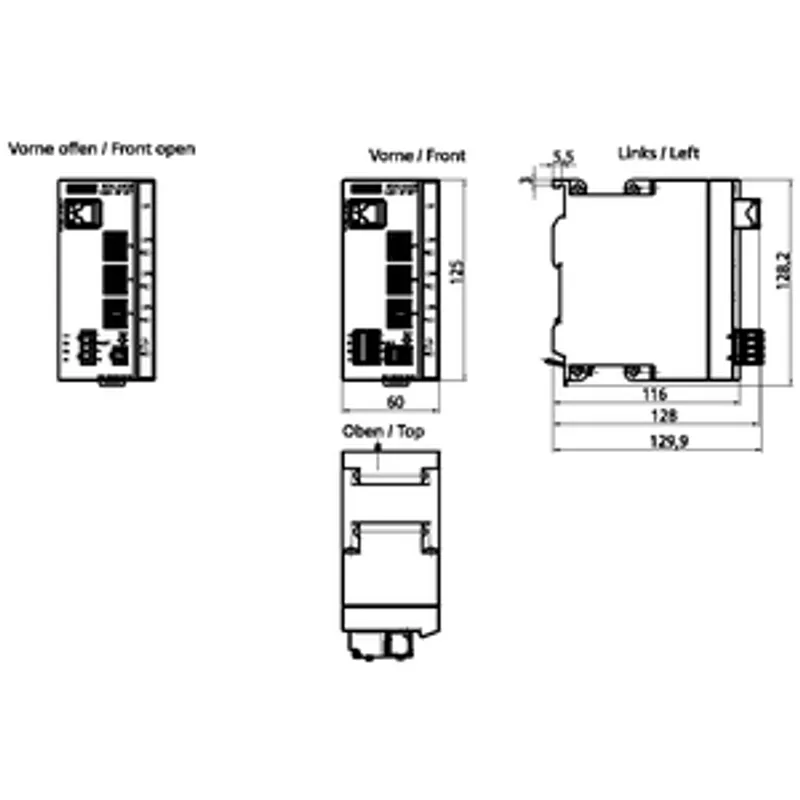

design, dimensions and weights
| design | compact |
| width | 60 mm |
| height | 125 mm |
| depth | 124 mm |
| net weight | 0.78 kg |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | No |
product features, product functions, product components / general
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
| cascading in cases of star topology | any (depending only on signal propagation time) |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — port mirroring | No |
| product function — multiport mirroring | No |
| product function — with IRT / PROFINET IO switch | Yes |
| product function — PROFINET IO diagnosis | Yes |
| product function — switch-managed | Yes |
| PROFINET conformity class | C |
| network load class / according to PROFINET | II |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — FTP | Yes |
| protocol / is supported — BOOTP | No |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
product functions / diagnostics
| product function — port diagnostics | Yes |
| product function — statistics Packet Size | Yes |
| product function — statistics packet type | Yes |
| product function — error statistics | Yes |
product functions / DHCP
| product function — DHCP client | Yes |
product functions / redundancy
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function — media redundancy protocol (MRP) with redundancy manager | Yes |
| product function — Media Redundancy Protocol for Planned Duplication (MRPD) | Yes |
| product function — ring redundancy | Yes |
| product function — high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function — high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function — passive listening | Yes |
product functions / security
| protocol / is supported — SSH | Yes |
product functions / time
| product function — SICLOCK support | Yes |
| protocol / is supported — NTP | No |
| protocol / is supported — SNTP | Yes |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — cULus approval | Yes |
| certificate of suitability — KC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| standard — for EMC interference emission | EN 61000-6-4 (Class A) |
| standard — for immunity to EMC | EN 61000-6-2 |
| standard — for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
standards, specifications, approvals / hazardous environments
| certificate of suitability — ATEX | Yes |
| certificate of suitability — UKEX | Yes |
| certificate of suitability — IECEx | Yes |
| certificate of suitability — ULhazloc approval | Yes |
| certificate of suitability — CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability — FM registration | Yes |
standards, specifications, approvals / other
| certificate of suitability — railway application in accordance with EN 50155 | No |
| certificate of suitability — railway application in accordance with EN 50124-1 | No |
| certificate of suitability — RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 293.9 kg |
| global warming potential [CO2 eq] — during manufacturing | 29.12 kg |
| global warming potential [CO2 eq] — during operation | 264.55 kg |
| global warming potential [CO2 eq] — after end of life | 0.23 kg |
product functions / general
| MTBF | 78.03 a |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals / Certificates
| global warming potential [CO2 eq] / during manufacturing | 29.12 kg |
| global warming potential [CO2 eq] / during operation | 264.55 kg |
| global warming potential [CO2 eq] / after end of life | 0.23 kg |
| global warming potential [CO2 eq] / total | 293.9 kg |
