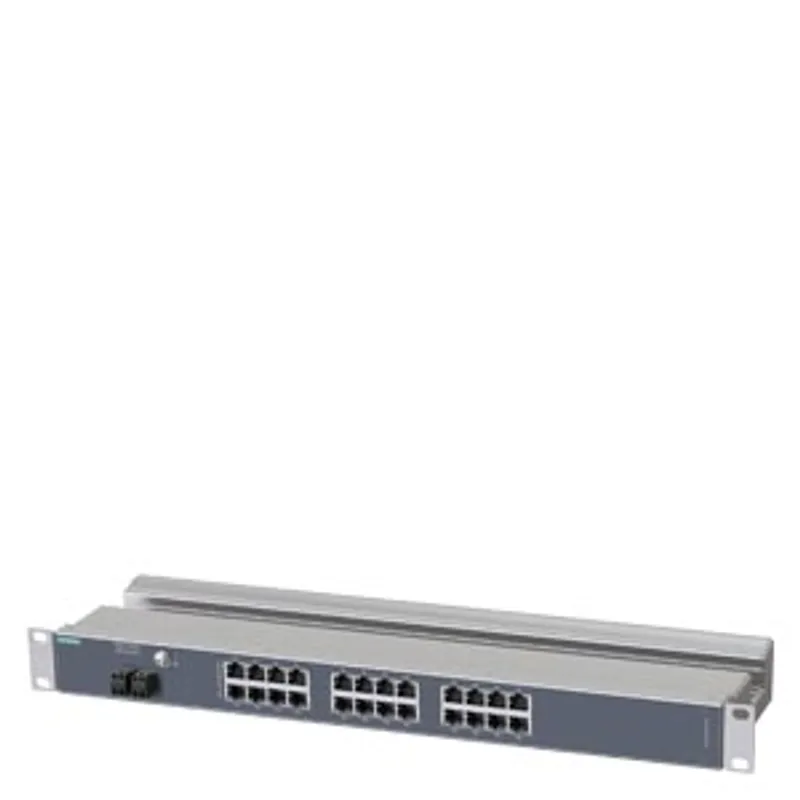

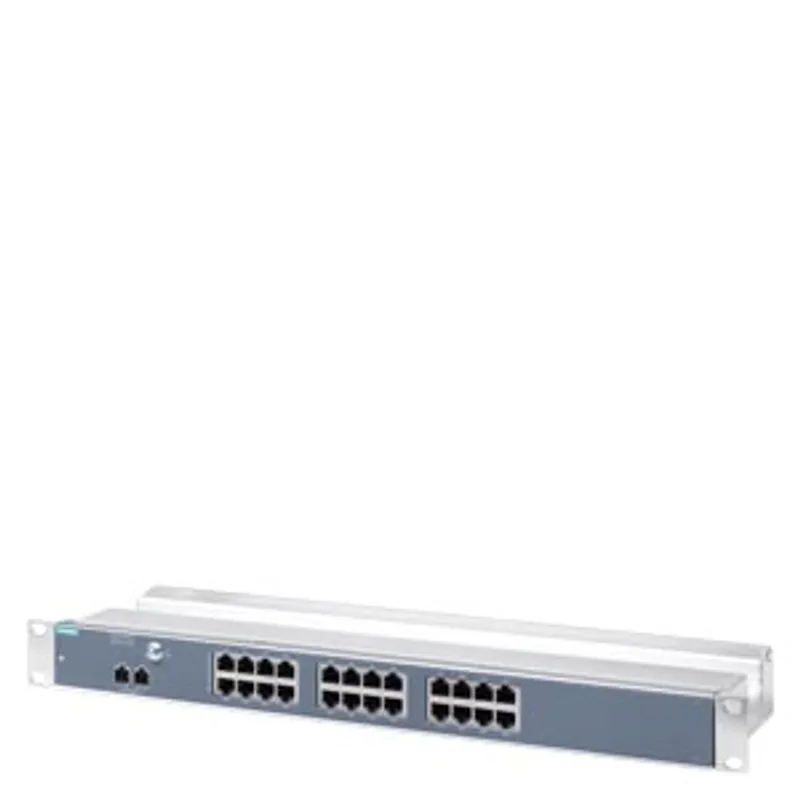

Siemens 6GK5124-0BA00-2AR3
SCALANCE XR124WG; unmanaged IE switch; 19" rack; 24 x 10/100 Mbit/s electrical ports; LED diagnostics
- MPN
- 6GK5124-0BA00-2AR3
- Category
- SCALANCE XR-100WG unmanaged
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5124-0BA00-2AR3?
SCALANCE XR124WG; unmanaged IE switch; 19" rack; 24 x 10/100 Mbit/s electrical ports; LED diagnostics; Power supply 24 V DC;
Specifications
product type designation
| product brand name | SCALANCE |
| product type designation | XR124 |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5124-0BA00-2AR3 |
transfer rate
| transfer rate | 10, 100 Mbit/s |
interfaces / for communication / integrated
| number of electrical connections — for network components or terminal equipment | 24; RJ45 |
| number of 10/100 Mbit/s RJ45 ports | 24 |
interfaces / other
| number of electrical connections — for power supply | 1 |
| type of electrical connection — for power supply | 2-pole terminal block |
supply voltage, current consumption, power loss
| product component / connection for redundant voltage supply | Yes |
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | DC |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | 6 W |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | 0.25 A |
| type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply | 2-pole terminal block |
| type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input | Yes |
| type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage | 5 A / min. 60 V |
ambient conditions
| ambient temperature — during operation | 0 ... 60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |

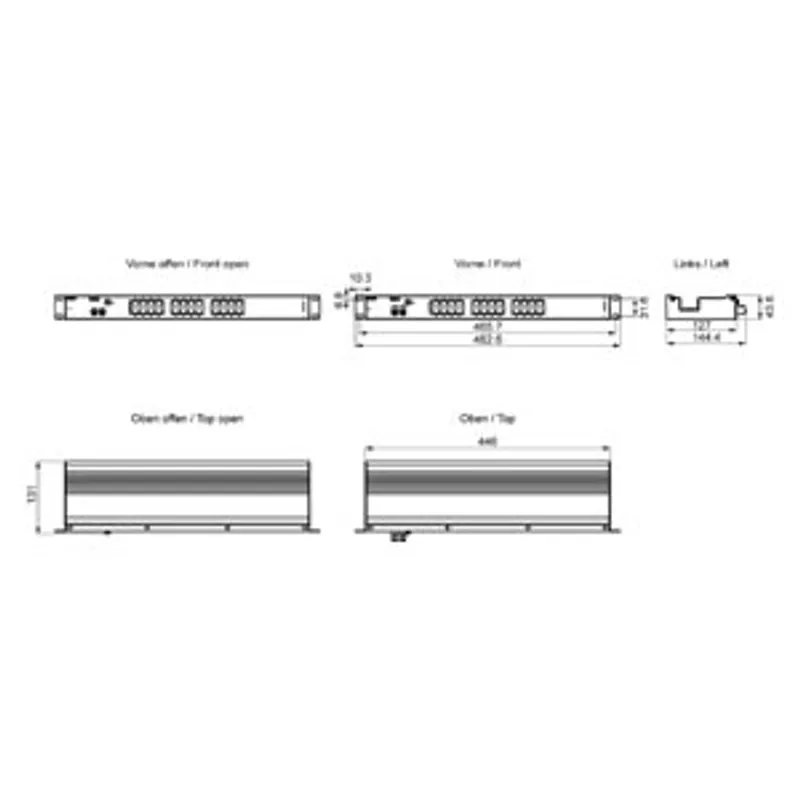

design, dimensions and weights
| design | 19-inch rack |
| width | 482.6 mm |
| height | 43.6 mm |
| depth | 127 mm |
| net weight | 2.7 kg |
| fastening method — 19-inch installation | Yes |
| fastening method — 35 mm DIN-rail mounting | No |
| fastening method — wall mounting | No |
| fastening method — S7-300 rail mounting | No |
| fastening method — S7-1500 rail mounting | No |
product features, product functions, product components / general
| cascading in cases of star topology | any (depending only on signal propagation time) |
product functions / management, configuration, engineering
| product function — multiport mirroring | No |
| product function — CoS | Yes |
| product function — switch-managed | No |
product functions / redundancy
| product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 | Yes |
| certificate of suitability — cULus approval | Yes |
| certificate of suitability — KC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| standard — for EMC interference emission | EN 61000-6-4 (Class B) |
| standard — for immunity to EMC | EN 61000-6-2 |
| standard — for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1, UL 61010-2-201 |
standards, specifications, approvals / hazardous environments
| certificate of suitability — ATEX | Yes |
| certificate of suitability — UKEX | Yes |
| certificate of suitability — IECEx | Yes |
| certificate of suitability — ULhazloc approval | Yes |
| certificate of suitability — CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability — FM registration | Yes |
standards, specifications, approvals / other
| certificate of suitability — railway application in accordance with EN 50155 | No |
| certificate of suitability — RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 274.03 kg |
| global warming potential [CO2 eq] — during manufacturing | 109.07 kg |
| global warming potential [CO2 eq] — during operation | 164.41 kg |
| global warming potential [CO2 eq] — after end of life | 0.55 kg |
product functions / general
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals / Certificates
| global warming potential [CO2 eq] / during manufacturing | 109.07 kg |
| global warming potential [CO2 eq] / during operation | 164.41 kg |
| global warming potential [CO2 eq] / after end of life | 0.55 kg |
| global warming potential [CO2 eq] / total | 274.03 kg |
