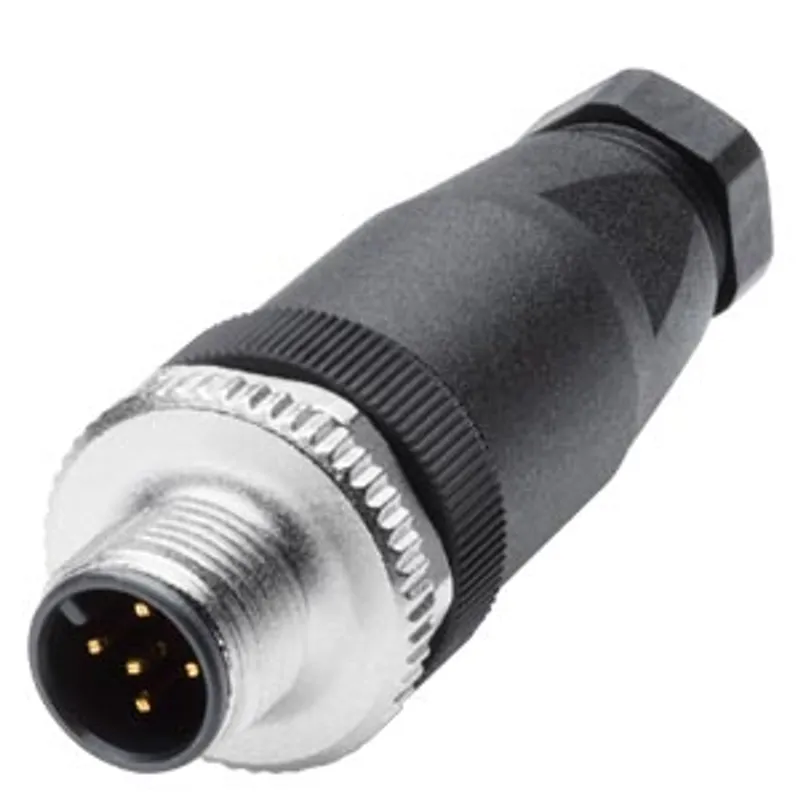

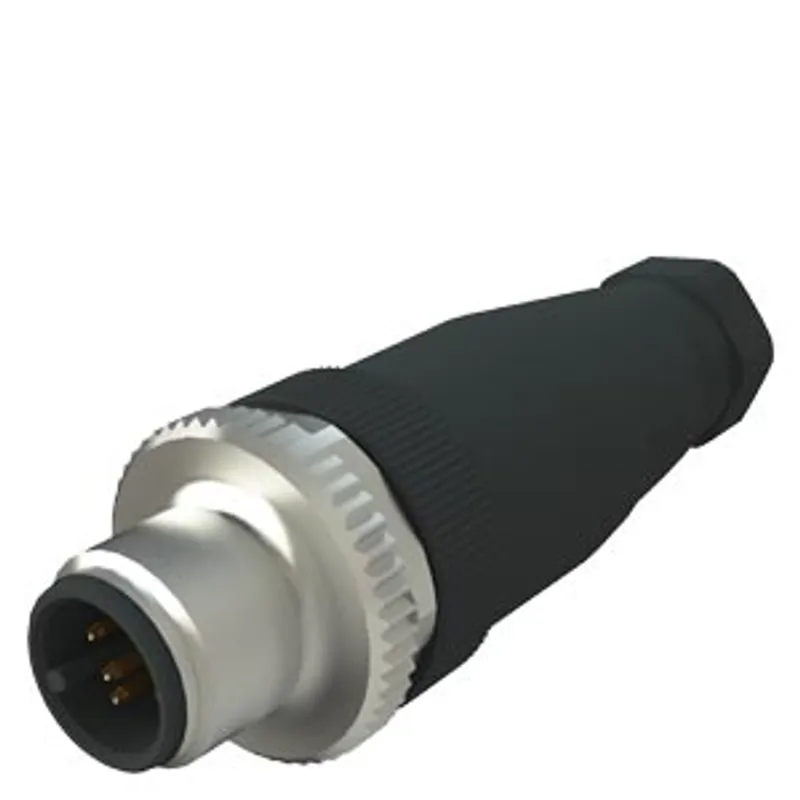

Siemens 6GK1908-0DB10-6AA0
Control M12 Plug PRO; connection plug that can be assembled in the field
- MPN
- 6GK1908-0DB10-6AA0
- Category
- Communication Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK1908-0DB10-6AA0?
control M12 Plug PRO; connection plug that can be assembled in the field; for the connection of IO-Link sensors/actuators 5-pole; A-coded, 1 unit.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1908-0DB10-6AA0 |
| suitability for use | Connection plug suitable for on-site assembly, for connecting IO-Link sensors/actuators |
interfaces
| number of electrical connections — for network components or terminal equipment | 5 |
| type of electrical connection / FastConnect | No |
electrical data
| voltage / rated value / maximum | 60 V |
| ampacity / of the contacts / maximum | 3 A |
mechanical data
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |
| number of poles | 5 |
| tightening torque / for M12 round connector / maximum | 0.6 N·m |
| connector coding / of the M12 circular connector | A |

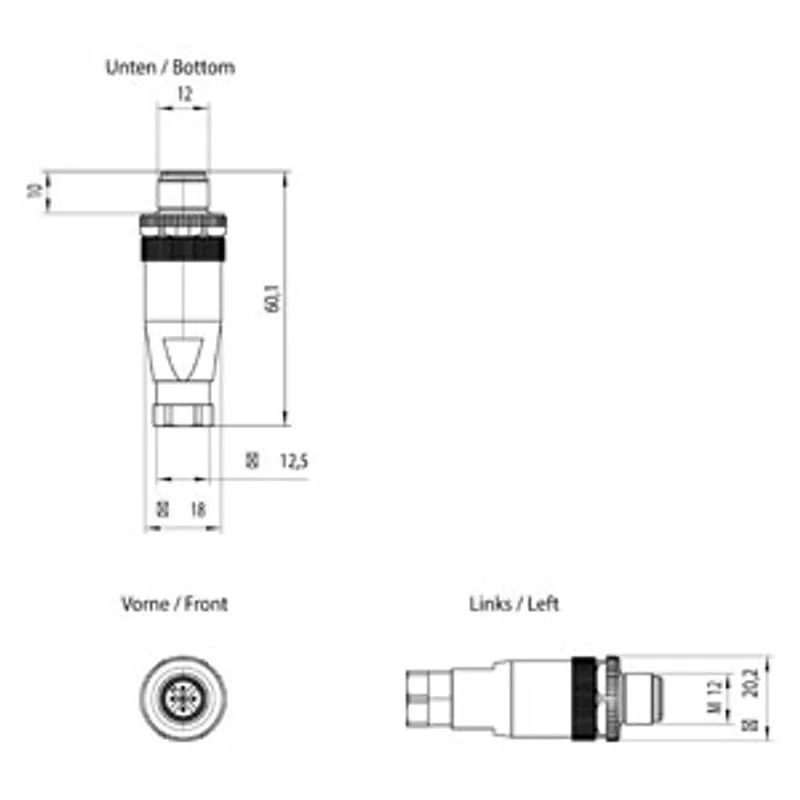

design, dimensions and weights
| type of cable outlet | 180° cable outlet |
| width | 20.2 mm |
| height | 20.2 mm |
| depth | 60 mm |
| net weight | 0.018 g |
| connectable cable diameter | 4 ... 6 mm |
| connectable conductor cross-section | 0.4 ... 0.5 mm² |
ambient conditions
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| chemical resistance — to water | resistant |
| protection class IP | IP67 |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
| product component — strain relief | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — railway application in accordance with EN 50155 | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK1908-0DB10-6AA0: frequently asked questions
When can 6GK1908-0DB10-6AA0 be shipped?
6GK1908-0DB10-6AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK1908-0DB10-6AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK1908-0DB10-6AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK1908-0DB10-6AA0, subject to availability and destination.
