Siemens 6GK1907-0DC00-6AA4

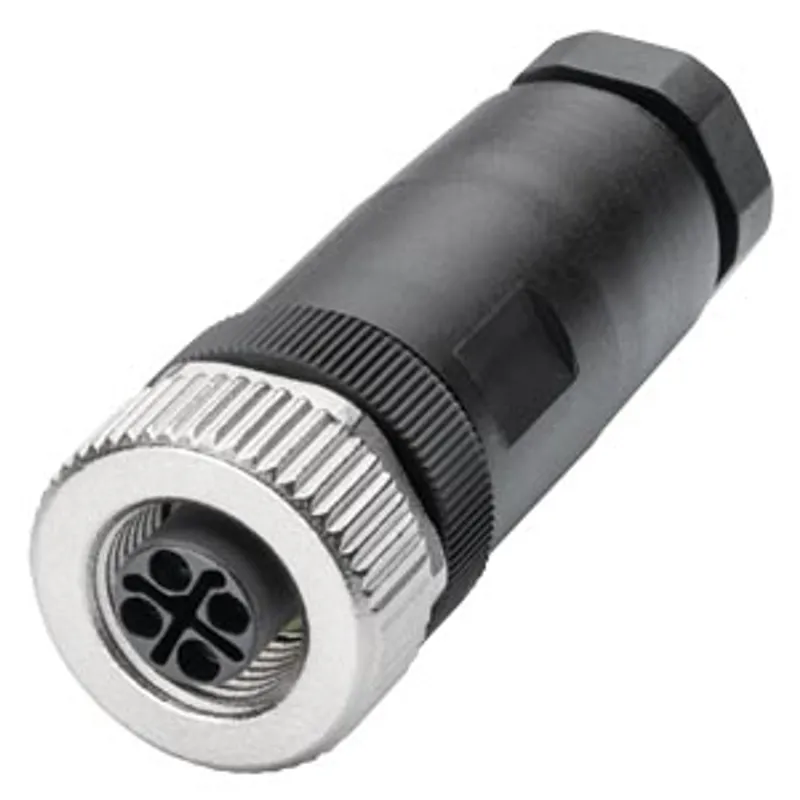

Power M12 cable connector PRO for PSP9230PoE with axial cable outlet for assembly in the field
- MPN
- 6GK1907-0DC00-6AA4
- Category
- Communication Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK1907-0DC00-6AA4?
power M12 cable connector PRO for PSP9230PoE with axial cable outlet for assembly in the field, female contact insert, S-coded 1 pack = 1 unit.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1907-0DC00-6AA4 |
| suitability for use | for connection to PSP9230PoE power supply for 230 V AC power supply |
interfaces
| number of electrical connections — for network components or terminal equipment | 1 |
| type of electrical connection — for network components or terminal equipment | M12 plug (female contact insert, S-coded, 3-pin) |
| type of electrical connection / FastConnect | No |
electrical data
| voltage / rated value / maximum | 230 V |
| ampacity / of the contacts / maximum | 12 A |
mechanical data
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |
| number of poles | 3 |
| connector coding / of the M12 circular connector | S |
design, dimensions and weights
| type of cable outlet | 180° cable outlet |
| width | 20.2 mm |
| height | 20.2 mm |
| depth | 60 mm |
| connectable cable diameter | 6 ... 8 mm |
| type of electrical connection / for conductor | screw terminal |
| type of electrical connection / for conductor — solid | 2.5 mm² |
| type of electrical connection / for conductor — finely stranded / with core end processing | 1.5 mm² |
ambient conditions
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| chemical resistance — to water | resistant |
| protection class IP | IP67 |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
| product component — strain relief | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — railway application in accordance with EN 50155 | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
