Siemens 6GK1901-0DB50-6AA8

IE FC M12 Plug PRO 4x 2; M12 plug-in connector with Rugged metal enclosure and FC Connection method

MPN: 6GK1901-0DB50-6AA8
Category: IE FC M12 plug PRO 4x2 (X-coded)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

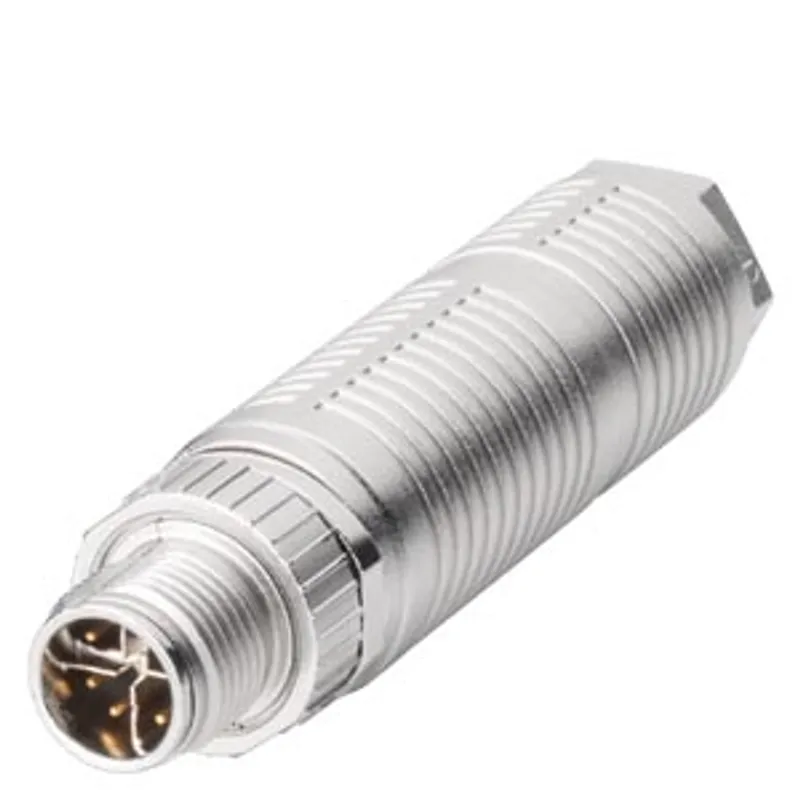

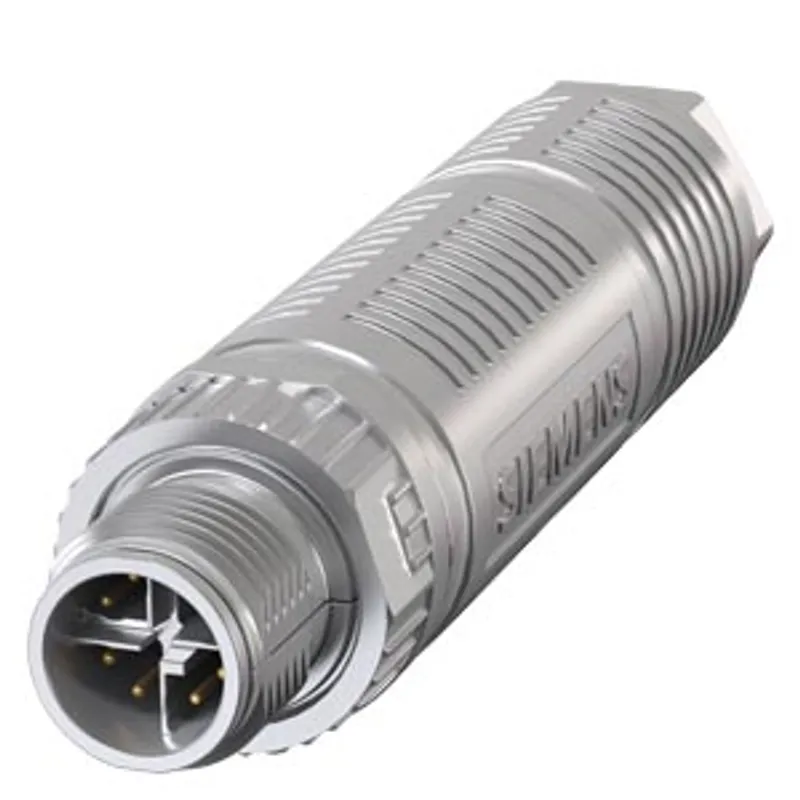

What is the Siemens 6GK1901-0DB50-6AA8?

IE FC M12 Plug PRO 4x 2; M12 plug-in connector with Rugged metal enclosure and FC Connection method; with axial cable outlet (X-coded) 1 pack = 8 units for SCALANCE W and SCALANCE X.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6GK1901-0DB50-6AA8
suitability for use	For connecting electrical cables to SCALANCE W (M12 gigabit interface) for fast assembly with the FastConnect system

transfer rate

transfer rate / for Industrial Ethernet	10, 100, 1000 Mbit/s
transfer rate / for Industrial Ethernet	10000 Mbit/s

interfaces

number of electrical connections — for Industrial Ethernet FC TP cables	8
number of electrical connections — for network components or terminal equipment	1
type of electrical connection — for Industrial Ethernet FC TP cables	integrated insulation-displacement contacts for 8-wire TP FC installation cables AWG24/AWG26
type of electrical connection — for network components or terminal equipment	M12 plug (X-coded, male)
type of electrical connection / FastConnect	Yes

mechanical data

material / of the enclosure	metal
locking mechanism design	Screwed joint
tightening torque / for M12 round connector / maximum	0.6 N·m
connector coding / of the M12 circular connector	X

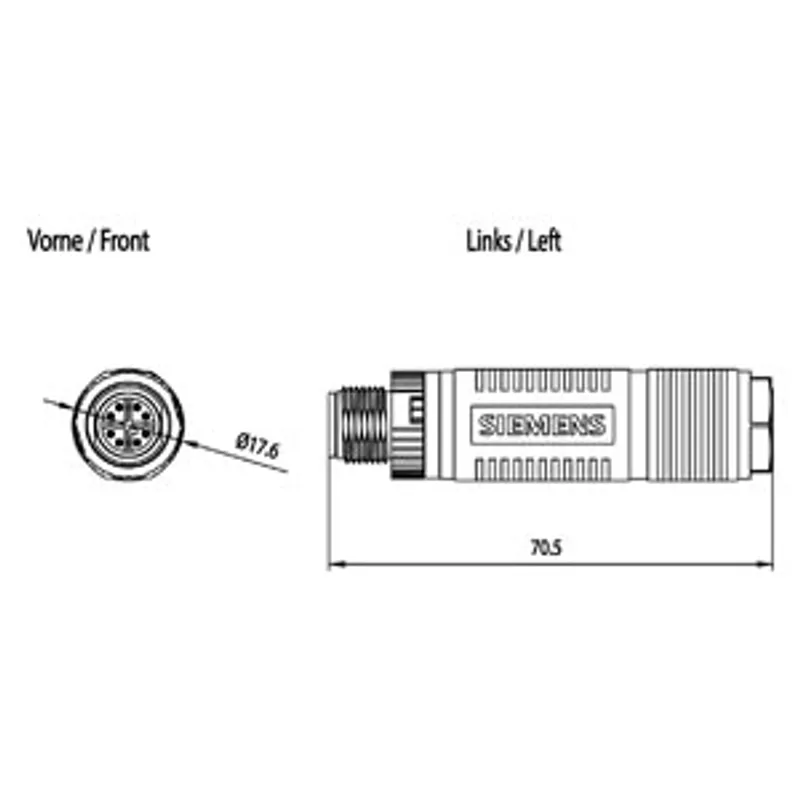

design, dimensions and weights

type of cable outlet	180° cable outlet
width	17.6 mm
height	17.6 mm
depth	70.7 mm
net weight	48 g
connectable cable diameter	6.5 ... 8 mm
connectable conductor cross-section	0.21 ... 0.33 mm²

ambient conditions

ambient temperature — during operation	-40 ... +85 °C
ambient temperature — during storage	-50 ... +100 °C
ambient temperature — during transport	-50 ... +100 °C
chemical resistance — to water	resistant
protection class IP	IP65/67

product features, product functions, product components / general

product feature — PoE capability	Yes
product feature — PoE+ capability	Yes
product feature — silicon-free	Yes
product component — strain relief	Yes

standards, specifications, approvals

certificate of suitability — RoHS conformity	Yes
certificate of suitability — UL approval	Yes
certificate of suitability — cULus approval	Yes
certificate of suitability — railway application in accordance with EN 50155	Yes
certificate of suitability — fire protection according to EN 45545-5	Yes
standard for structured cabling	Cat6A

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
