IE FC M12 plug PRO 4x2 (X-coded) Parts
Compare IE FC M12 plug PRO 4x2 (X-coded)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | type of electrical connection — for network components or terminal equipment | width | height | depth | net weight |
|---|---|---|---|---|---|

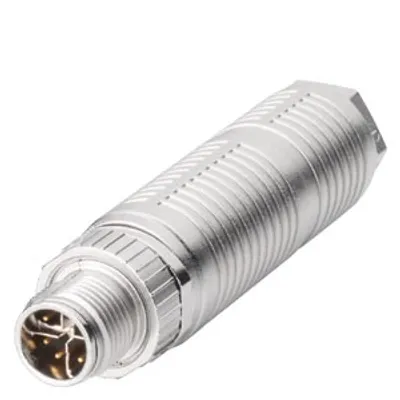

| 6GK1901-0DB50-6AA8 | M12 plug (X-coded, male) | 17.6 mm | 17.6 mm | 70.7 mm | 48 g |
| 6GK1901-0DB50-6AA0 | M12 plug (X-coded, male) | 17.6 mm | 17.6 mm | 70.7 mm | 48 g |
| 6GK1901-0DB40-6AA8 | M12 plug (X-coded, female) | 16.8 mm | 16.8 mm | 49 mm | 40 g |
| 6GK1901-0DB40-6AA0 | M12 plug (X-coded, female) | 16.8 mm | 16.8 mm | 49 mm | 40 g |

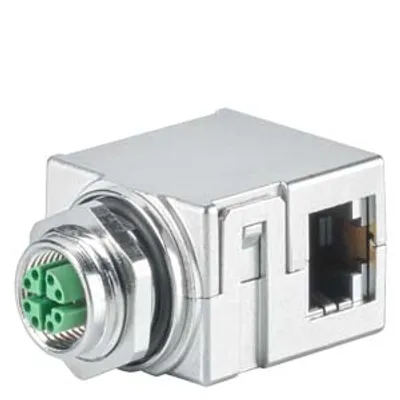

| 6GK1901-0DM40-2AA5 | M12 socket (X-coded) and RJ45 | 22 mm | 29 mm | 46 mm | 63 g |
Common to all listed parts
| transfer rate / for Industrial Ethernet | 10, 100, 1000 Mbit/s |
| number of electrical connections — for network components or terminal equipment | 1 |
| material / of the enclosure | metal |
| locking mechanism design | Screwed joint |
| tightening torque / for M12 round connector / maximum | 0.6 N·m |
| connector coding / of the M12 circular connector | X |
| ambient temperature — during operation | -40 ... +85 °C |
| chemical resistance — to water | resistant |
