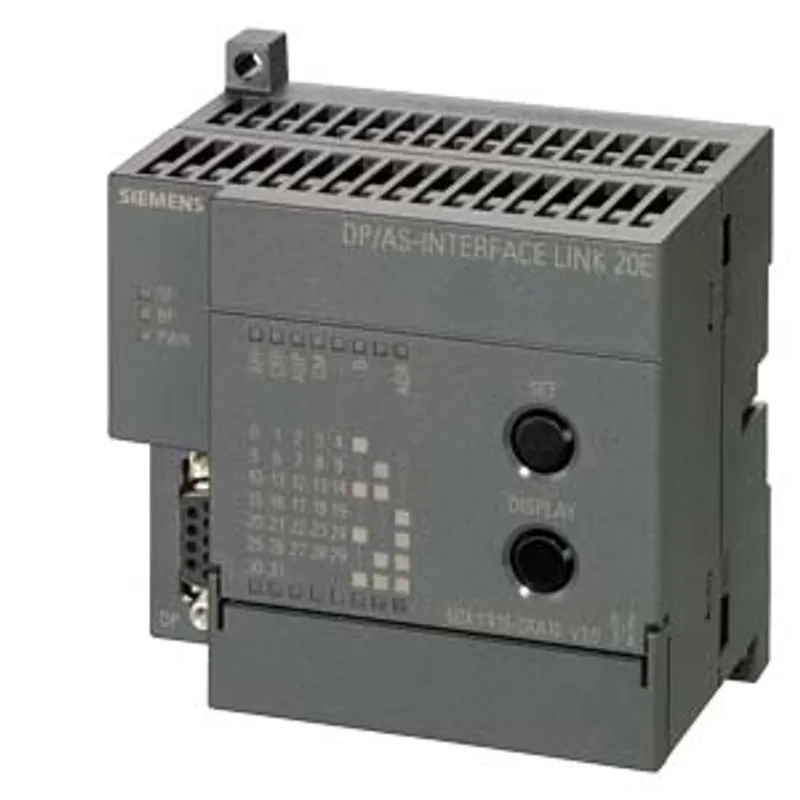

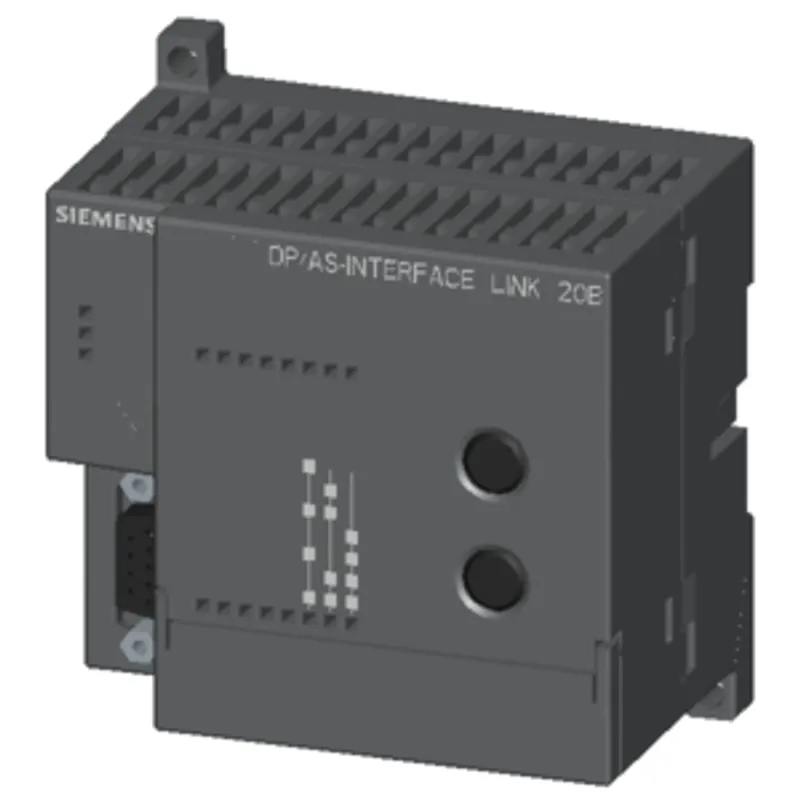

Siemens 6GK1415-2AA10
SIMATIC NET, DP/AS-Interface Link 20 E
- MPN
- 6GK1415-2AA10
- Category
- DP/AS-Interface Link 20E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK1415-2AA10?
SIMATIC NET, DP/AS-Interface Link 20 E, Gateway PROFIBUS DP/AS-Interface according to AS-Interface specification V 3.0 in degree of protection IP20
Specifications
General technical data
| product designation | PROFIBUS DP/AS-Interface Link |
| protection class IP | IP20 |
| type of electrical connection of the AS-Interface | Screw-type connection |
| type of voltage supply | via AS-i |
| consumed current — from profile conductors of the AS-Interface — at 30 V maximum | 200 mA |
| power loss [W] | 4.5 W |
| insulation voltage rated value | 500 V |
| product feature redundancy capability | Yes |
| product feature redundancy capability — note | in connection with Y-Link |
| product function suitable for AS-i Power24V | No |
| product function suitable for AS-i Power24V — note | from product status 2 / firmware V3.1 |
| product function — web-based management | No |
| product function — diagnostics via email | No |
| product function — galvanic isolation | Yes |
| display version — as status display by LED | PWR, APF, CER, AUP, CM, BF, SF |
| type of configuration of the AS-Interface | Set pushbutton on device, STEP7, GSD, command interface |
Communication/ Protocol
| version of the AS-Interface specification | V 3.0 |
| AS-Interface master profile is supported | M4 (in acc. with AS-interface specification V 3.0) |
| type of data transmission | PROFIBUS |
| number of interfaces — as AS-Interface | 1 |
| number of interfaces — according to RS 485 | 1 |
| number of interfaces — according to Industrial Ethernet | 0 |
| number of interfaces — according to PROFINET | 0 |
| number of interfaces — according to wireless | 0 |
| number of interfaces — according to USB | 0 |
| number of interfaces — other | 0 |
| product component optical interface | No |
| protocol is supported — ASIsafe (Safety at work) protocol | No |
| protocol is supported — PROFIsafe protocol | No |
| protocol is supported — PROFIBUS protocol | Yes |
| protocol is supported — PROFINET IO protocol | No |
| protocol is supported — PROFINET CBA protocol | No |
| protocol is supported — TCP/IP | No |
| protocol is supported — SNMP | No |
| standard for wireless communication IEEE 802.11 | No |
Inputs/ Outputs
| number of inputs for AS-Interface maximum | 496 |
| number of outputs for AS-Interface maximum | 496 |
| number of AS-i devices per AS-Interface maximum | 62 |
| bus cycle time of the AS-Interface — for 31 devices | 5 ms |
| bus cycle time of the AS-Interface — for 62 devices | 10 ms |
| access to digital I/O data | via process image/peripheral addresses |
| access to analog I/O data | via data record transfer |

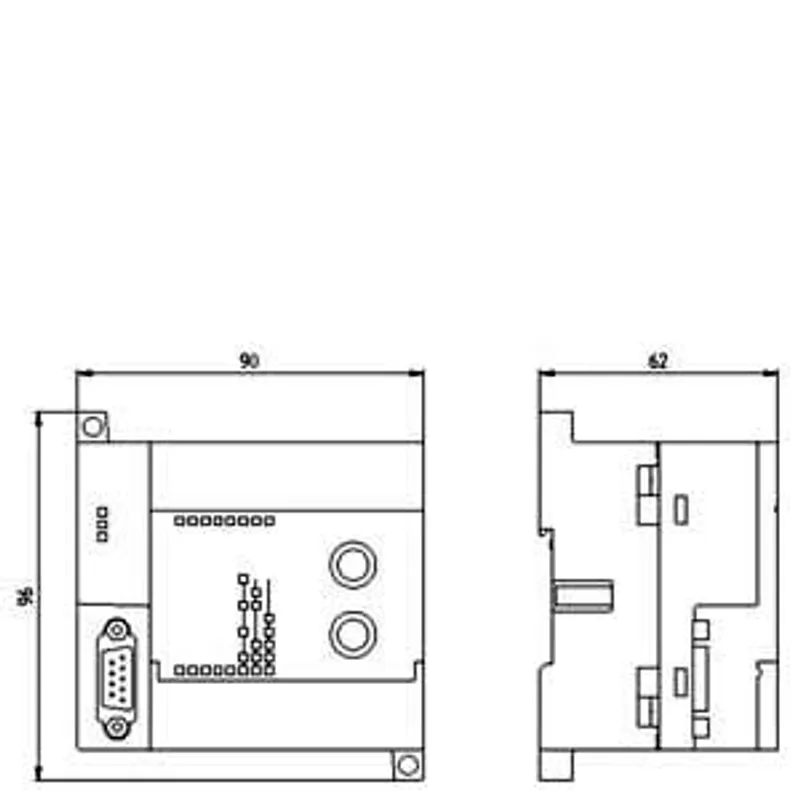

Mechanical data
| width | 90 mm |
| height | 80 mm |
| depth | 62 mm |
| fastening method | snap-on fastening on 35 mm DIN rail |
| module format | IP20 |
Ambient conditions
| ambient temperature — if installed on horizontal mounting rail during operation | 0 ... 60 °C |
| ambient temperature — if installed on vertical mounting rail during operation | 0 ... 45 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| relative humidity at 25 °C during operation maximum | 95 % |
| installation altitude at height above sea level maximum | 2 000 m |
Safety related data
| suitability for use safety-related function | No |
| explosion protection marking for intrinsic safety of related equipment — EEx ia | No |
| explosion protection marking for intrinsic safety of related equipment — EEx ib | No |
| explosion protection category for gas | II 3 G Ex ec IIC T4 Gc |
| explosion protection category for dust | none |
