Siemens 6GK1411-1AC00
SIMATIC CloudConnect 7
- MPN
- 6GK1411-1AC00
- Category
- SIMATIC CloudConnect 7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK1411-1AC00?
SIMATIC CloudConnect 7, CC712 IoT Gateway for connection of programmable controllers to cloud services and OPC 2xEthernet RJ45 field protocols: S7, S7-Plus, OPC UA, Modbus MES/cloud protocols: MQTT, HTTP, OPC UA
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1411-1AC00 |
transfer rate
| transfer rate — at the 1st interface | 10 ... 1000 Mbit/s |
| transfer rate — at the 2nd interface | 10 ... 1000 Mbit/s |
interfaces
| number of electrical connections — at the 1st interface / according to Industrial Ethernet | 1 |
| number of electrical connections — at the 2nd interface / according to Industrial Ethernet | 1 |
| number of electrical connections — for power supply | 2 |
| type of electrical connection — at the 1st interface / according to Industrial Ethernet | RJ45 port |
| type of electrical connection — at the 2nd interface / according to Industrial Ethernet | RJ45 port |
| type of electrical connection — for power supply | 5-pin terminal strip |
| design of the removable storage — CLP | Yes |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| supply voltage | 24 V |
| supply voltage / external | 10.8 ... 28.8 V |
| supply voltage / external / at DC / rated value | 24 V |
| consumed current — from external supply voltage / at 24 V DC — in communication mode / typical | 180 mA |
| power loss [W] | 4.3 W |
ambient conditions
| ambient temperature — for vertical installation / during operation | 0 ... 40 °C |
| ambient temperature — for horizontally arranged busbars / during operation | 0 ... 60 °C |
| ambient temperature — during storage | -40 ... +40 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |

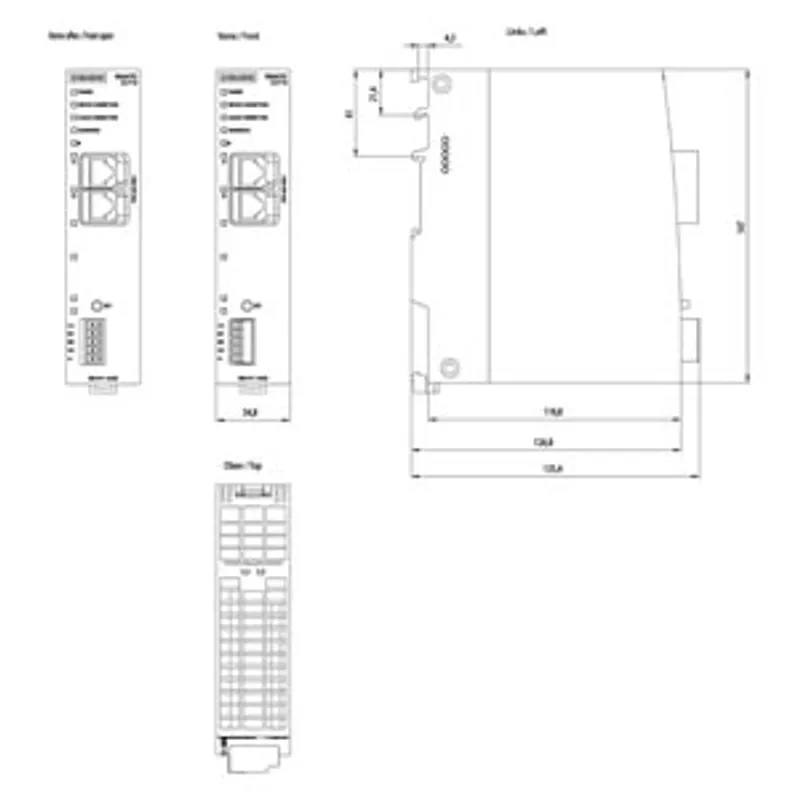

design, dimensions and weights
| module format | Compact |
| width | 35 mm |
| height | 147 mm |
| depth | 127 mm |
| net weight | 0.3 kg |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | Yes |
| fastening method — wall mounting | Yes |
product functions / cloud connectivity
| protocol / is supported — Message Queuing Telemetry Transport (MQTT) | Yes |
| protocol / is supported — Advanced Message Queuing Protocol (AMQP) | No |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — REST-API | Yes |
| product function / for cloud connectivity — trigger management | Yes |
| product function / for cloud connectivity — time stamping | Yes |
| product feature / for cloud connectivity / buffered message frame memory | Yes |
| number of active connections / for cloud connectivity | 3 |
| number of lower-level devices / maximum | 1 |
| number of data points per device / maximum | 500 |
performance data / S7 communication
| number of possible connections / for S7 communication — maximum | 1 |
performance data / as OPC UA server
| protocol / is supported / OPC UA Server | Yes |
| number of possible connections / to OPC UA clients / maximum | 10 |
| number of variables (items) / maximum | 1500 |
performance data / as OPC UA client
| protocol / is supported / OPC UA Client | Yes |
| number of possible connections / for OPC UA server / maximum | 1 |
product functions / diagnostics
| product function / web-based diagnostics | Yes |
product functions / security
| operating mode / Virtual Private Network (VPN) | No |
| product function — password protection for Web applications | Yes |
| product function — SysLog | Yes |
product functions / time
| protocol / is supported — NTP | Yes |
| protocol / is supported — NTP (secure) | Yes |
| time synchronization — from NTP-server | Yes |
| time synchronization — manual setting | Yes |
standards, specifications, approvals
| certificate of suitability / CE marking | Yes |
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / cULus approval | Yes |
| certificate of suitability / KC approval | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
standards, specifications, approvals / hazardous environments / header
| certificate of suitability / ATEX | Yes |
| certificate of suitability / IECEx | Yes |
| certificate of suitability / ULhazloc approval | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK1411-1AC00: frequently asked questions
When can 6GK1411-1AC00 be shipped?
6GK1411-1AC00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK1411-1AC00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK1411-1AC00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK1411-1AC00, subject to availability and destination.
