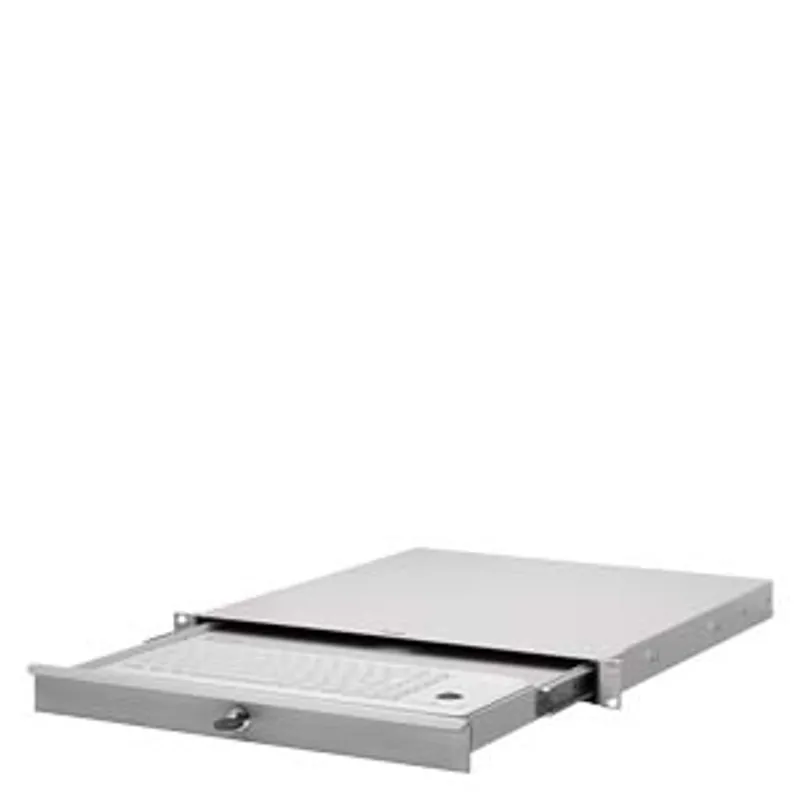

Siemens 6GF6710-3BJ
PS2 keyboard 19", de, with trackball, removable keyboard for devices with corresponding interface
- MPN
- 6GF6710-3BJ
- Category
- Input devices, cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GF6710-3BJ?
PS2 keyboard 19", de, with trackball, removable keyboard for devices with corresponding interface, scope of supply: 1 keyboard
Specifications
General information
| Product type designation | PS/2 withdrawable keyboard DEU |
Control elements
| Keyboard — Design | Membrane keyboard |
| Keyboard — Keyboard assignment | 84 (Germany (QWERTZ)) |
| Keyboard — Color of the buttons | light gray |
| Keyboard — Color of the key inscription | dark gray |
| Keyboard — Key illumination | No |
| Keyboard — Function keys — Number of function keys | 12 |
| Keyboard — Number pad | Yes; Integrated into key layout |
| Keyboard — status LED displays | Yes; Num, Caps, Scroll and Pad |
| Keyboard — status LED displays — for number pad | Yes |
| Keyboard — status LED displays — for Shift keys | Yes |
| Connection type — Bluetooth radio standard | No |
| Connection type — USB | No |
| Connection type — PS/2 | Yes |
| Connection type — Cable length | 1.5 m |
| Frame size/design — Standard | Yes; For industrial applications |
| Frame size/design — 19" keyboard | Yes |
Installation type/mounting
| Rack mounting | Yes |
| Front mounting | No |
| Wall mounting/direct mounting | No |
| maximum permissible angle of inclination without external ventilation | 0° |
Supply voltage
| Design of the power supply | via PS/2 |
Input current
| Current consumption (rated value) | 10 mA; Typical |
Battery
| Battery-operated | No; maintenance-free |
Degree and class of protection
| Splashproof | No |
Standards, approvals, certificates
| CE mark | Yes |
| RoHS conformity | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 65 °C |
| Relative humidity — Operation, max. | 80 %; no condensation |
| Relative humidity — Condensation permissible | No |
Operating systems
| Runs under operating system — Windows CE | Yes |
| Runs under operating system — Windows Vista | Yes |
| Runs under operating system — Windows XP | Yes |
| Runs under operating system — Windows 7 | Yes |
| Runs under operating system — Windows 8 | Yes |
Connection method
| Connector type | PS/2 |
Mechanics/material
| Material — plastic | Yes; Keyboard itself |
| Material — Sheet metal | Yes; Powder-coated drawer |
| Service life — Number of operating cycles, keys | 20 000 000; Operations (approx.) |
Dimensions
| Width | 370 mm; Keyboard |
| Height | 20 mm; Keyboard |
| Depth | 138.5 mm; Keyboard |
| Width of the housing front | 485 mm; Keyboard incl. drawer |
| Height of housing front | 45 mm; Keyboard incl. drawer |
| Enclosure diameter | 465 mm; Mounting depth drawer |
Weights
| Weight (without packaging) | 8 000 g; Without accessories |
| Weight (with packaging) | 9 300 g |
Scope of supply
| Delivery quantity in pieces | 1; Keyboard incl. drawer |
Other
| Merchandise | Yes |
| Manufacturer name | ZF Friedrichshafen AG, Cherry GmbH, Electronic Systems |
| Manufacturer's address | Cherrystr., 91275 Auerbach/OPf., Germany |
| Target devices | Suitable for IPC and HMI devices with the corresponding interfaces (see manual) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GF6710-3BJ: frequently asked questions
When can 6GF6710-3BJ be shipped?
6GF6710-3BJ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GF6710-3BJ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GF6710-3BJ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GF6710-3BJ, subject to availability and destination.
