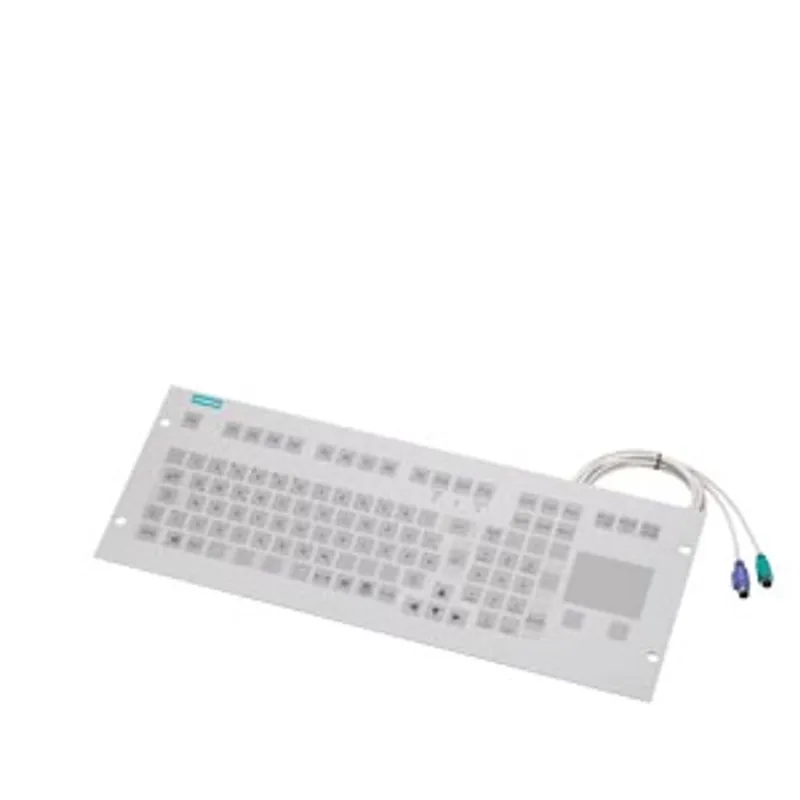

Siemens 6GF6710-3BE
PS2 keyboard 19", en, with touch pad, built-in keyboard for devices with corresponding interface
- MPN
- 6GF6710-3BE
- Category
- Input devices, cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GF6710-3BE?
PS2 keyboard 19", en, with touch pad, built-in keyboard for devices with corresponding interface, scope of supply: 1 keyboard
Specifications
General information
| Product type designation | PS/2 built-in keyboard INT |
Control elements
| Keyboard — Design | Membrane keyboard |
| Keyboard — Keyboard assignment | B3F, 101/102 or 104/105 OMRON |
| Keyboard — Key illumination | No |
| Keyboard — Function keys — Number of function keys | 12 |
| Keyboard — Function keys — Programmable | Yes |
| Keyboard — Number pad | Yes |
| Keyboard — status LED displays | Yes; Num, Caps and Scroll |
| Keyboard — status LED displays — for number pad | Yes |
| Keyboard — status LED displays — for Shift keys | Yes |
| Connection type — USB | Yes; With PS/2 USB adapter (not included in the scope of supply) |
| Connection type — PS/2 | Yes |
| Frame size/design — Standard | Yes; For industrial applications |
| Frame size/design — 19" keyboard | Yes |
Installation type/mounting
| Rack mounting | No; Built-in keyboard, 19" rack |
Input current
| Current consumption (rated value) | 25 mA; Typical |
Battery
| Battery-operated | No; maintenance-free |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas | Yes |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Splashproof | Yes |
Standards, approvals, certificates
| CE mark | Yes |
| RoHS conformity | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -10 °C |
| Ambient temperature during storage/transportation — max. | 50 °C |
| Relative humidity — Operation, max. | 90 %; no condensation |
| Relative humidity — Condensation permissible | No |
Operating systems
| Runs under operating system — Windows CE | Yes |
| Runs under operating system — Windows Vista | Yes |
| Runs under operating system — Windows XP | Yes |
| Runs under operating system — Windows 7 | Yes |
| Runs under operating system — Windows 10 | Yes |
Connection method
| Connector type | PS/2 |
Mechanics/material
| Material — Sheet metal | Yes |
| Enclosure material (front) — Plastic | Yes; AUTOTEX (R) V150 |
| Service life — Number of operating cycles, keys | 1 000 000; Operations (minimum) |
Dimensions
| Width | 482.6 mm |
| Height | 42.5 mm |
| Depth | 177.8 mm |
Weights
| Weight (without packaging) | 1 480 g |
| Weight (with packaging) | 1 665 g |
Scope of supply
| Delivery quantity in pieces | 1; Built-in keyboard rack mounting |
Other
| Merchandise | Yes; TIPRO no. K-647 (K-847) |
| Manufacturer name | TIPRO Representative Office |
| Manufacturer's address | Vogelweg 20, 31785 Hameln, Germany |
| Target devices | Suitable for IPC and HMI devices with the corresponding interfaces (see manual) |
| Note: | Suitable PS/2 USB adapter (keyboard/mouse): 1x USB 1.1, plug A on 2x PS/2 sockets, 0.20 m, black; manufacturer: Renkforce; supply by Conrad Elektronik, order no.: 1360251 - 62 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GF6710-3BE: frequently asked questions
When can 6GF6710-3BE be shipped?
6GF6710-3BE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GF6710-3BE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GF6710-3BE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GF6710-3BE, subject to availability and destination.
