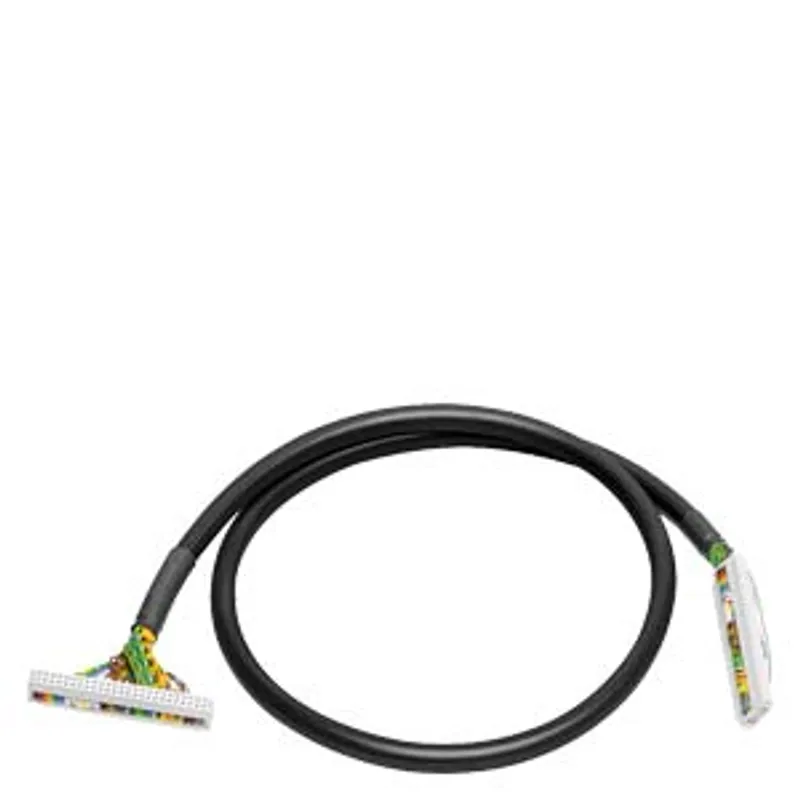

Siemens 6ES7923-5BB00-0GB0
Connecting cable unshielded for SIMATIC S7-1500 64 I/O between I/O modul X10 or X11 and connection module 32…
- MPN
- 6ES7923-5BB00-0GB0
- Category
- Connecting cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7923-5BB00-0GB0?
Connecting cable unshielded for SIMATIC S7-1500 64 I/O between I/O modul X10 or X11 and connection module 32 I/O 0.14 mm2, L = 1.0m, 1 pcs. 40 of 50 pole IDC connector
Specifications
General
| Technical Product Detail Page | https://i.siemens.com/1P6ES7923-5BB00-0GB0 |
| target system | SIMATIC S7-1500 |
| suitability for use | Digital I/O modules |
| suitability for interaction — input card PLC | Yes |
| suitability for interaction — PLC output card | Yes |
| suitability for use — digital signal transmission | Yes |
| suitability for use — analog signal transmission | No |
| product brand name | SIMATIC Top connect |
| product type designation | Fully modular connection |
| product designation | Pre-assembled round cable |
electrical data
| operating voltage / at DC — rated value | 24 V |
| operating voltage / at DC — maximum | 60 V |
connection method
| design of cable | Round cable |
| number of channels | 32 |
| wire length | 1 m |
| conductor cross section / rated value | 0.14 mm² |
| Product component / with shield | No |
| number of poles | 40 |
| number of poles — at the 1st interface | 40; control page |
| number of poles — at the 2nd interface | 50; on the connection module |
| connector type | IDC connector |
| type of electrical connection / on enclosure | Connector strip |
| type of electrical connection / in the field | Connector strip |
standards, specifications, approvals
| certificate of suitability — cULus approval | No |
| certificate of suitability — IECEx | Yes |
| certificate of suitability — ATEX | Yes |
| certificate of suitability — UKEX | Yes |
Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 2.505 kg |
| global warming potential [CO2 eq] — during manufacturing | 2.437 kg |
| global warming potential [CO2 eq] — during operation | 0 kg |
| global warming potential [CO2 eq] — after end of life | 0.006 kg |
ambient conditions
| ambient temperature — during operation | -30 ... +60 °C |
| ambient temperature — during storage | -30 ... +70 |
mechanical data
| outer diameter / of cable sheath | 10.3 mm |
| material / of the connection cable sheath | PVC |
| color / of cable sheath | Black |
| net weight | 0.2 kg |
internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: system cabling | https://siemens.com/simatic-top-connect |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified) |
| marketing text | The 40-pin round cable (unshielded) with a length of 1.0m is assembled on the side of the I/O card with 40-pin IDC plugs and on the side of the connection module with a 50-pin IDC plug. This pre-assembled cable enables a trouble-free and safe signal flow. Thus, even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for thefastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are connected to the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via connecting cable and front plug-in module. |
