Connecting cables Parts
Compare Connecting cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | wire length | global warming potential [CO2 eq] — total | global warming potential [CO2 eq] — during manufacturing | global warming potential [CO2 eq] — after end of life | net weight |
|---|---|---|---|---|---|
| 6ES7923-5BB50-0CB0 | 1.5 m | 4.115 kg | 4.002 kg | 0.01 kg | 0.15 kg |
| 6ES7923-5BB00-0GB0 | 1 m | 2.505 kg | 2.437 kg | 0.006 kg | 0.2 kg |

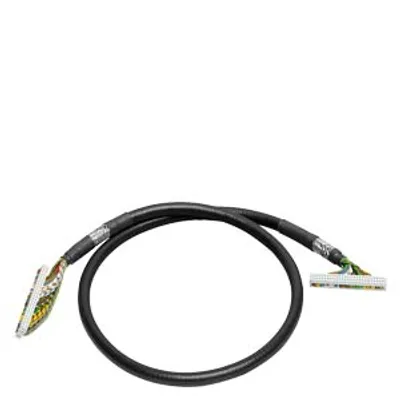

| 6ES7923-5BC00-0DB0 | 2 m | 5.137 kg | 4.996 kg | 0.012 kg | 0.19 kg |
| 6ES7923-5BC00-0CB0 | 2 m | 4.612 kg | 4.486 kg | 0.011 kg | 0.18 kg |

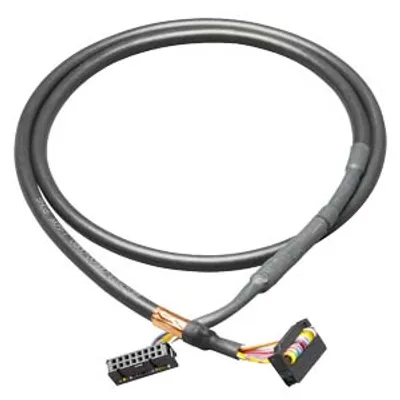

| 6ES7923-0BD00-0DB0 | 3 m | 3.879 kg | 3.772 kg | 0.009 kg | 0.25 kg |

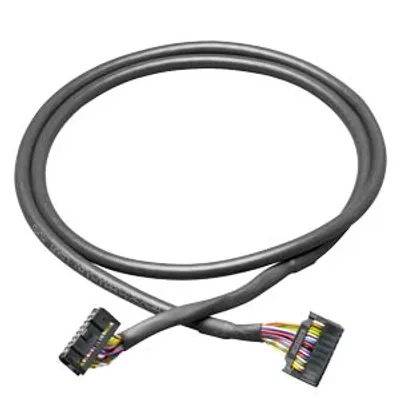

| 6ES7923-0BD00-0CB0 | 3 m | 2.904 kg | 2.824 kg | 0.007 kg | 0.235 kg |
| 6ES7923-0BC50-0DB0 | 2.5 m | 3.407 kg | 3.313 kg | 0.008 kg | 0.22 kg |
| 6ES7923-0BC50-0CB0 | 2.5 m | 2.595 kg | 2.523 kg | 0.006 kg | 0.21 kg |
| 6ES7923-0BC00-0DB0 | 2 m | 2.935 kg | 2.855 kg | 0.007 kg | 0.19 kg |
| 6ES7923-5CB00-0DB0 | 10 m | 21.49 kg | 20.9 kg | 0.052 kg | 0.68 kg |
| 6ES7923-5CB00-0CB0 | 10 m | 18.869 kg | 18.351 kg | 0.046 kg | 0.62 kg |
| 6ES7923-5BB00-0DB0 | 1 m | 3.092 kg | 3.008 kg | 0.007 kg | 0.13 kg |

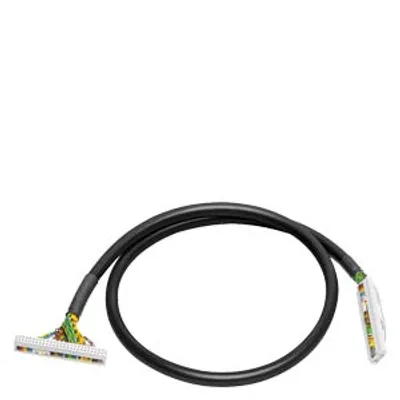

| 6ES7923-5BB00-0CB0 | 1 m | 2.83 kg | 2.753 kg | 0.007 kg | 0.125 kg |
Common to all listed parts
| suitability for interaction — input card PLC | Yes |
| suitability for interaction — PLC output card | Yes |
| suitability for use — digital signal transmission | Yes |
| product type designation | Fully modular connection |
| product designation | Pre-assembled round cable |
| operating voltage / at DC — rated value | 24 V |
| operating voltage / at DC — maximum | 60 V |
| design of cable | Round cable |
