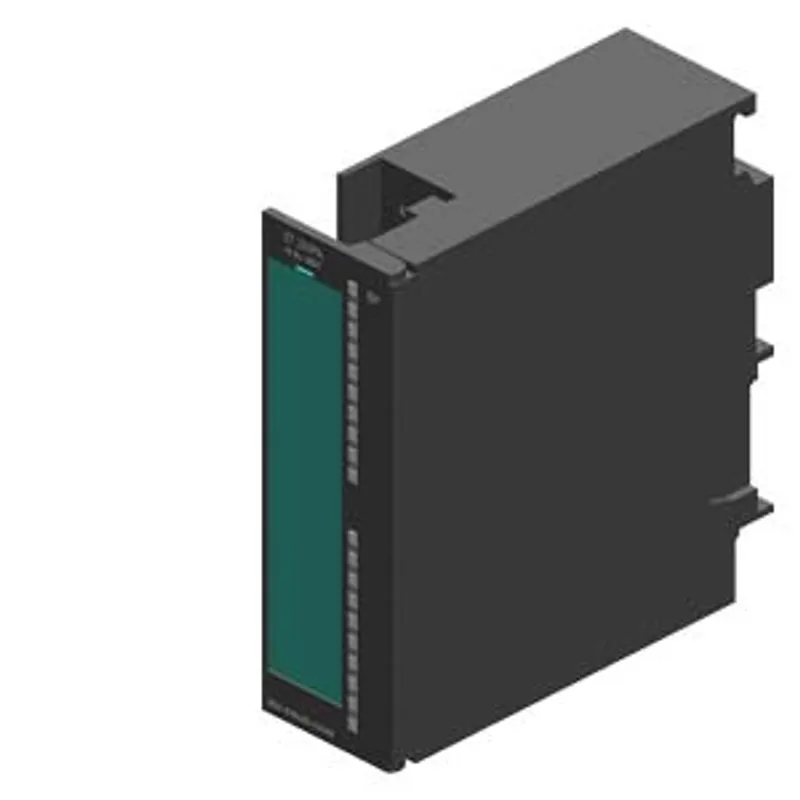

Siemens 6ES7650-8BT60-1AA0

ET 200PA SMART HART analog output 8 AQ, 0/4 - 20 mA HART 1 x 20-pole functions: HART auxiliary variables

MPN: 6ES7650-8BT60-1AA0
Category: CPU & Controllers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7650-8BT60-1AA0?

ET 200PA SMART HART analog output 8 AQ, 0/4 - 20 mA HART 1 x 20-pole functions: HART auxiliary variables, redundancy, IM 650-8PH required; conformal coating ISA-S71.04 severity level G1; G2; G3

Specifications

General information

Product function — Isochronous mode

Supply voltage

Rated value (DC)	24 V
Load voltage L+ — Rated value (DC)	24 V
Load voltage L+ — Reverse polarity protection	Yes

Input current

from load voltage L+ (without load), max.	350 mA
from backplane bus 5 V DC, max.	110 mA

Power loss

Power loss, typ.

6 W

Analog outputs

Number of analog outputs	8
Current output, no-load voltage, max.	24 V
Output ranges, current — 0 to 20 mA	Yes
Output ranges, current — 20 mA to +20 mA	No
Output ranges, current — 4 mA to 20 mA	Yes
Connection of actuators — for current output two-wire connection	Yes
Load impedance (in rated range of output) — with current outputs, max.	750 Ω
Load impedance (in rated range of output) — with current outputs, inductive load, max.	10 mH
Destruction limits against externally applied voltages and currents — Voltages at the outputs towards MANA	+60/-0.5 V
Cable length — shielded, max.	800 m

Analog value generation for the outputs

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	16 bit
Settling time — for resistive load	0.1 ms
Settling time — for inductive load	0.5 ms

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)	0.02 %
Linearity error (relative to output range), (+/-)	0.01 %
Temperature error (relative to output range), (+/-)	0.002 %/K
Crosstalk between the outputs, min.	70 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)	0.005 %
Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-)	0.1 %

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnostics indication LED — Group error SF (red)	Yes

Potential separation

Potential separation analog outputs — between the channels	No
Potential separation analog outputs — between the channels and backplane bus	Yes
Potential separation analog outputs — Between the channels and load voltage L+	Yes

Isolation

Isolation tested with

500 V DC

Connection method

required front connector

20-pin

Dimensions

Width	40 mm
Height	125 mm
Depth	117 mm

Weights

Weight, approx.

220 g
