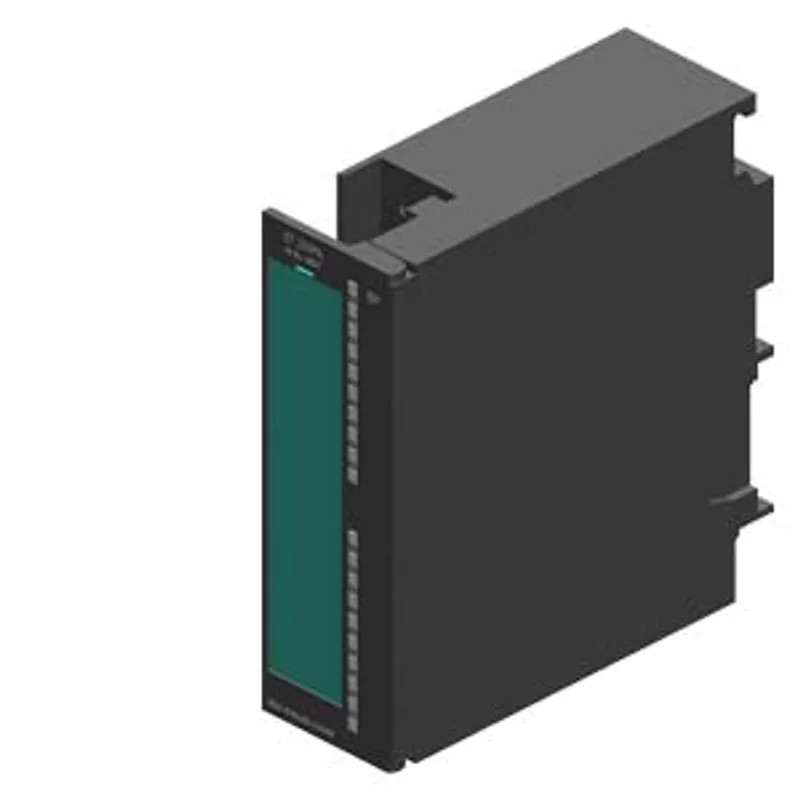

Siemens 6ES7650-8AT60-0AA0
ET 200PA SMART HART analog input 8 AI, 0/4 - 20 mA HART 1 x 20-pole HART auxiliary variables
- MPN
- 6ES7650-8AT60-0AA0
- Category
- CPU & Controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7650-8AT60-0AA0?
ET 200PA SMART HART analog input 8 AI, 0/4 - 20 mA HART 1 x 20-pole HART auxiliary variables, redundancy IM 650-8PH required
Specifications
General information
| Product function — Isochronous mode | No |
Supply voltage
| Rated value (DC) | 24 V |
| Load voltage L+ — Rated value (DC) | 24 V |
| Load voltage L+ — Reverse polarity protection | Yes |
Input current
| from load voltage L+ (without load), max. | 20 mA |
| from backplane bus 5 V DC, max. | 120 mA |
Output voltage
| Power supply to the transmitters — present | Yes |
| Power supply to the transmitters — Rated value (DC) | 24 V |
| Power supply to the transmitters — short-circuit proof | Yes |
| Power supply to the transmitters — Supply current, max. | 60 mA; per channel |
Power loss
| Power loss, typ. | 1.5 W |
Analog inputs
| Number of analog inputs | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V; 12 V continuous, 30 V for max. 1 s |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Input ranges (rated values), currents — 0 to 20 mA | Yes |
| Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA) | 140 Ω |
| Input ranges (rated values), currents — 20 mA to +20 mA | Yes |
| Input ranges (rated values), currents — 20 mA to +20 mA — Input resistance (-20 mA to +20 mA) | 140 Ω |
| Input ranges (rated values), currents — 4 mA to 20 mA | Yes |
| Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA) | 140 Ω |
| Cable length — shielded, max. | 800 m |
Analog value generation for the inputs
| Measurement principle | Sigma Delta |
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 16 bit |
| Integration and conversion time/resolution per channel — Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel — Integration time (ms) | 20 ms at 50 Hz; 16.6 ms at 60 Hz; 100 ms at 100 Hz |
| Integration and conversion time/resolution per channel — Basic conversion time, including integration time (ms) | 55 ms @ 60 Hz, 65 ms @ 50 Hz, 305 ms @ 100 Hz |
| Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz | 10 / 50 / 60 Hz |
| Smoothing of measured values — Parameterizable | Yes |
| Smoothing of measured values — Step: None | Yes |
| Smoothing of measured values — Step: low | Yes |
| Smoothing of measured values — Step: Medium | Yes |
| Smoothing of measured values — Step: High | Yes |
Encoder
| Connection of signal encoders — for current measurement as 2-wire transducer | Yes |
| Connection of signal encoders — for current measurement as 4-wire transducer | Yes |
Errors/accuracies
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.001 %/K |
| Crosstalk between the inputs, min. | 70 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.1 % |
| Operational error limit in overall temperature range — Current, relative to input range, (+/-) | 0.15 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-) | 0.1 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Series mode interference (peak value of interference < rated value of input range), min. | 40 dB |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode interference, min. | 100 dB |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Hardware interrupt | No |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Overrange | Yes |
| Diagnoses — Wire-break in signal transmitter cable | Yes |
| Diagnoses — Group error | Yes |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Channel fault indicator F (red) | No |
Potential separation
| Potential separation analog inputs — between the channels | No |
| Potential separation analog inputs — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 500 V DC |
Connection method
| required front connector | 20-pin |
Dimensions
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
Weights
| Weight, approx. | 220 g |
