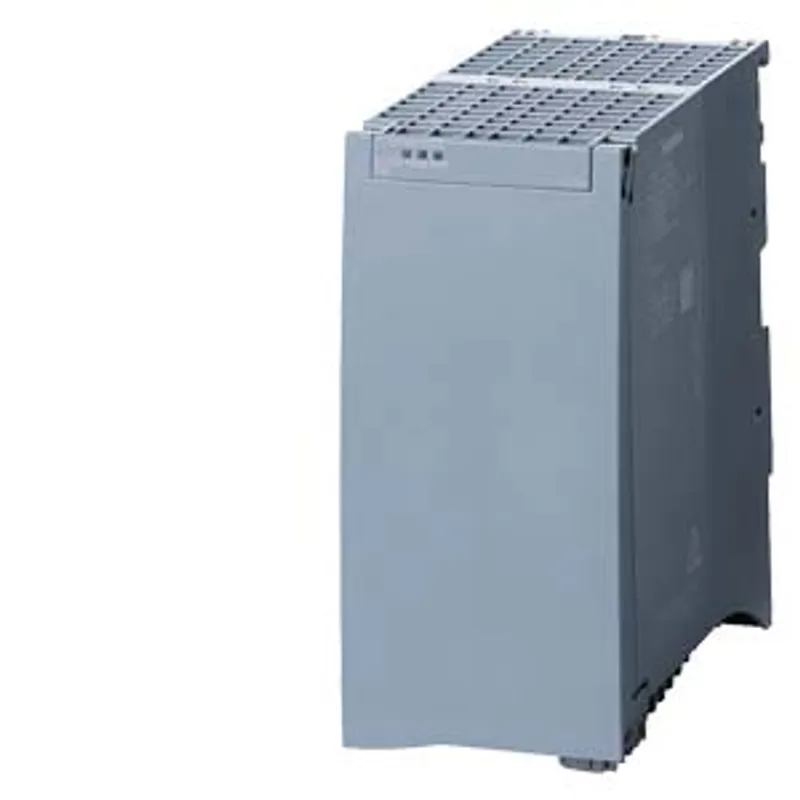

Siemens 6ES7507-0RA00-0AB0

SIMATIC S7-1500, system power supply PS 60W 120/230V AC/DC

MPN
6ES7507-0RA00-0AB0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7507-0RA00-0AB0?

SIMATIC S7-1500, system power supply PS 60W 120/230V AC/DC, supplies the backplane bus of S7-1500 with operating voltage

Specifications

General information

Product type designationPS 60 W 120/230 V AC/DC
HW functional statusfrom FS01
Firmware versionfrom V1.0.0
Engineering with — STEP 7 TIA Portal configurable/integrated from versionV12 / V12
Engineering with — STEP 7 configurable/integrated from versionV5.5 SP3 or higher

Supply voltage

Rated value (DC)120 V / 230 V
permissible range, lower limit (DC)88 V
permissible range, upper limit (DC)300 V
Rated value (AC)120 V / 230 V
permissible range, lower limit (AC)85 V
permissible range, upper limit (AC)264 V
Short-circuit protectionYes
Line frequency — Rated value 50 HzYes
Line frequency — permissible range, lower limit47 Hz
Line frequency — permissible range, upper limit63 Hz
Mains buffering — Mains/voltage failure stored energy time20 ms

Input current

Rated value at 120 V DC0.6 A
Rated value at 230 V DC0.3 A
Rated value at 120 V AC0.6 A
Rated value at 230 V AC0.34 A

Output current

Short-circuit protectionYes

Power

Infeed power to the backplane bus60 W

Power loss

Power loss at nominal rating conditions12 W

Interrupts/diagnostics/status information

Status indicatorYes

Potential separation

primary/secondaryYes

Isolation

Isolation tested with2 500 V DC/2 s (routine test)

EMC

Interference immunity against voltage surge — Interference immunity on supply lines acc. to IEC 61000-4-5Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required

Degree and class of protection

Equipment protection classI, with protective conductor

Ambient conditions

Ambient temperature during operation — min.-25 °C; up to FS04: 0 °C
Ambient temperature during operation — max.60 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.2 000 m

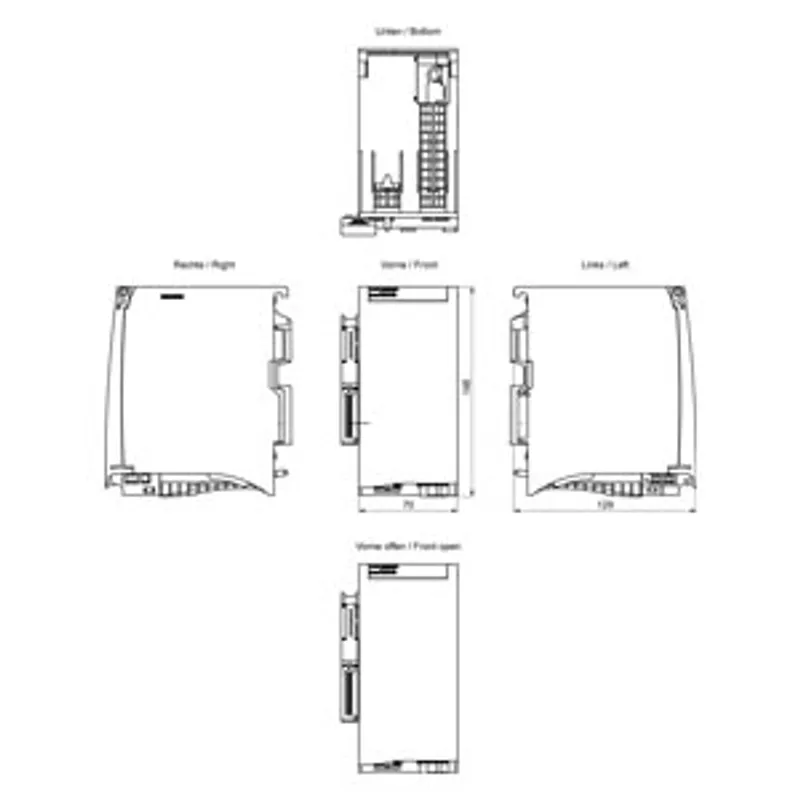

Dimensions

Width70 mm
Height147 mm
Depth129 mm

Weights

Weight, approx.600 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6ES7507-0RA00-0AB0: frequently asked questions

When can 6ES7507-0RA00-0AB0 be shipped?

6ES7507-0RA00-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7507-0RA00-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7507-0RA00-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7507-0RA00-0AB0, subject to availability and destination.
