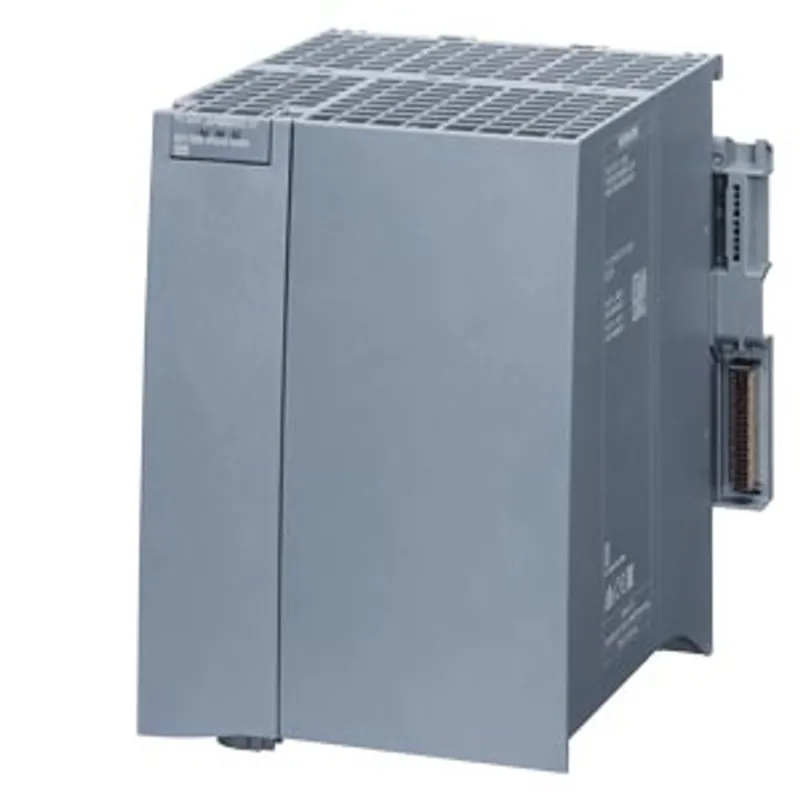

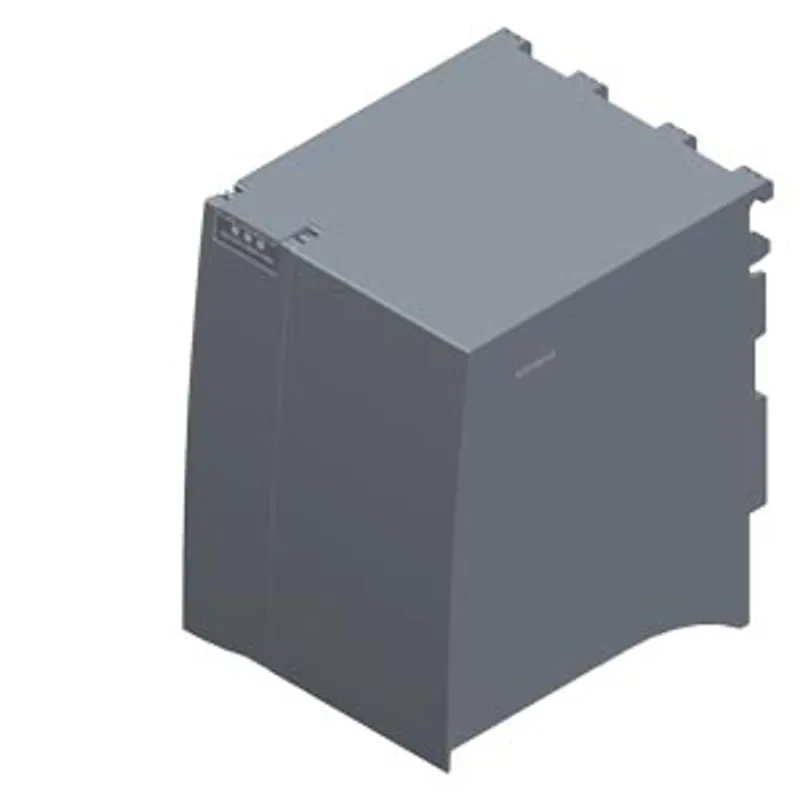

Siemens 6ES7505-0RB00-0AB0
SIMATIC S7-1500, System power supply with buffer functionality PS 60W 24/48/60V DC HF
- MPN
- 6ES7505-0RB00-0AB0
- Category
- System power supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7505-0RB00-0AB0?

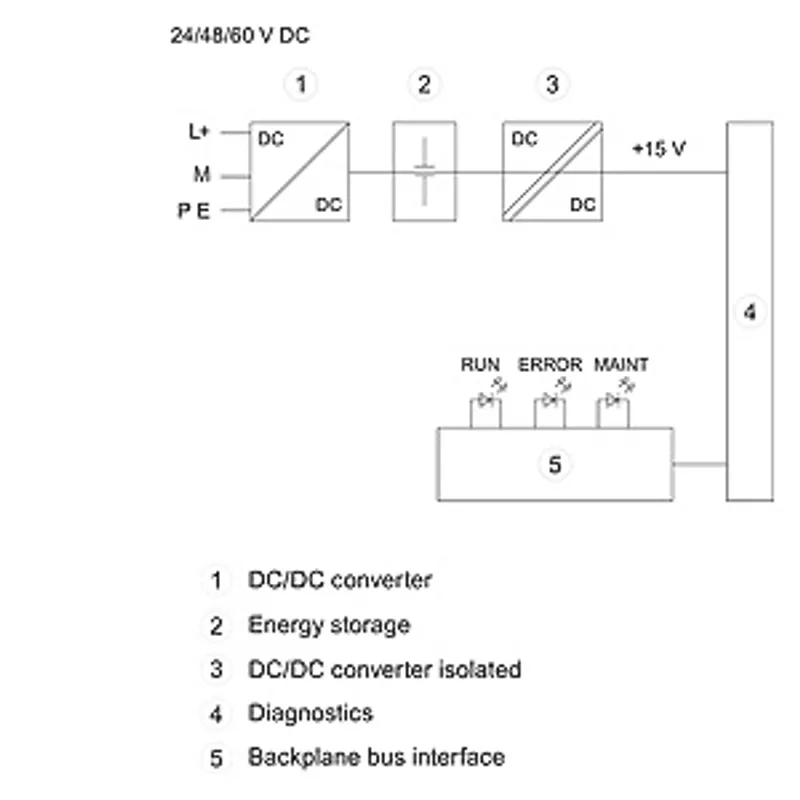

SIMATIC S7-1500, System power supply with buffer functionality PS 60W 24/48/60V DC HF, supplies the backplane bus of the S7-1500 with operating voltage and permits the CPU to retain RAM (data) retentively
Specifications
General information
| Product type designation | PS 60 W 24/48/60 V DC HF |
| HW functional status | from FS01 |
| Firmware version | from V1.0.0 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V14 SP1 |
Supply voltage
| Rated value (DC) | 24 V / 48 V / 60 V |
| permissible range, lower limit (DC) | 19.2 V; Static 19.2 V, dynamic 18.5 V |
| permissible range, upper limit (DC) | 72 V; Static 72 V, dynamic 75.5 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
Input current
| Rated value at 24 V DC | 3 A |
| Rated value at 48 V DC | 1.5 A |
| Rated value at 60 V DC | 1.2 A |
| Inrush current, max. | ≤ 8 A for t ≤ 1 s |
Output current
| Short-circuit protection | Yes |
Power
| Infeed power to the backplane bus | 60 W |
Power loss
| Power loss at nominal rating conditions | 12 W |
Interrupts/diagnostics/status information
| Status indicator | Yes |
Isolation
| Isolation tested with | 2 500 V DC (type test) |
EMC
| Interference immunity against voltage surge — Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required |
Degree and class of protection
| Equipment protection class | I, with protective conductor |
Ambient conditions
| Ambient temperature during operation — min. | -25 °C; up to FS02: 0 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -25 °C; up to FS02: 0 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -25 °C; up to FS02: 0 °C |
| Ambient temperature during operation — vertical installation, max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |

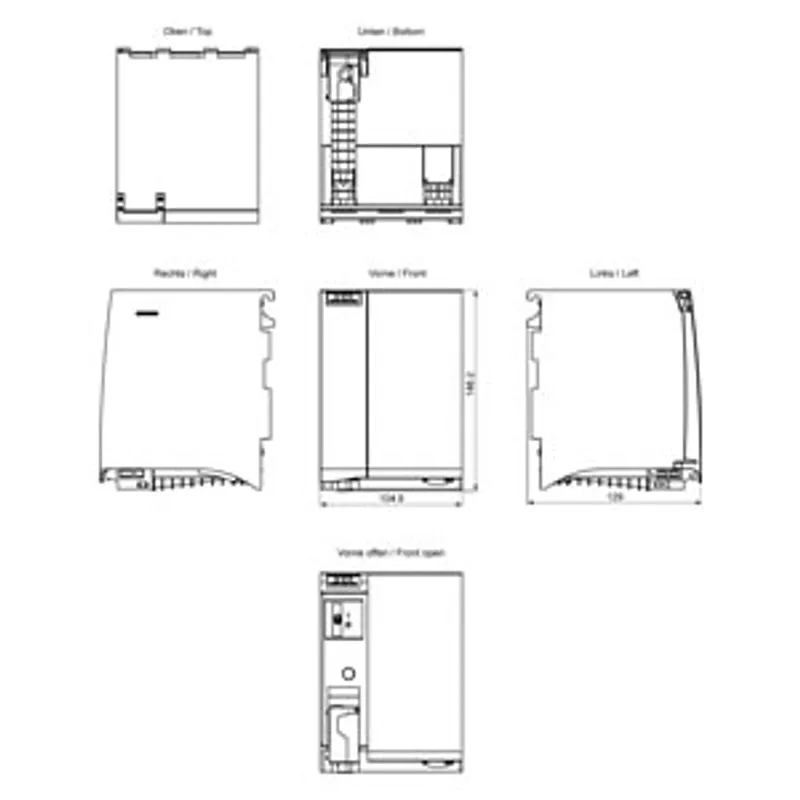

Dimensions
| Width | 105 mm |
| Height | 147 mm |
| Depth | 129 mm |
Weights
| Weight, approx. | 865 g |
