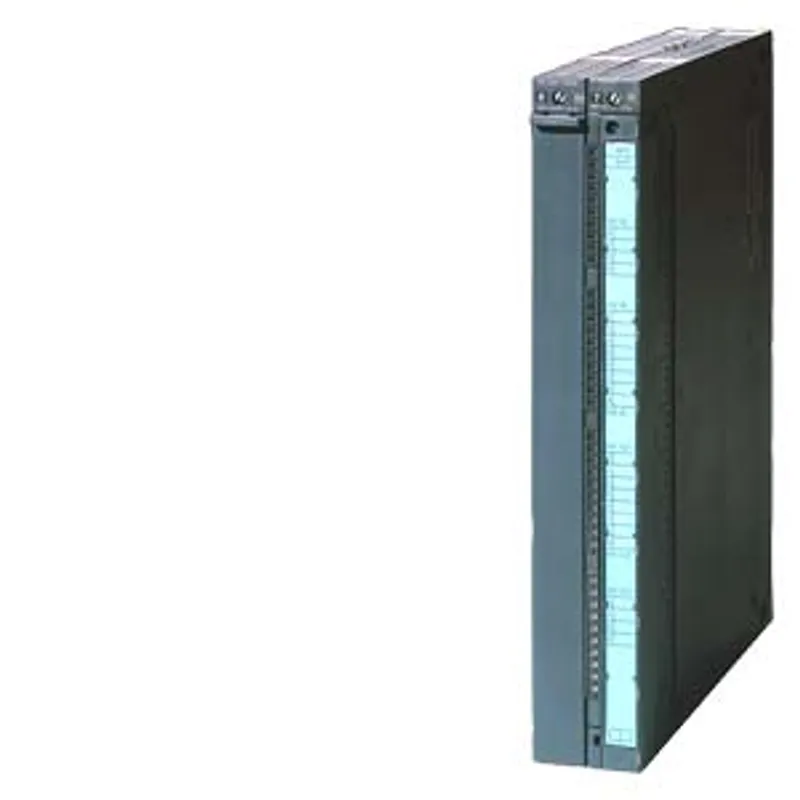

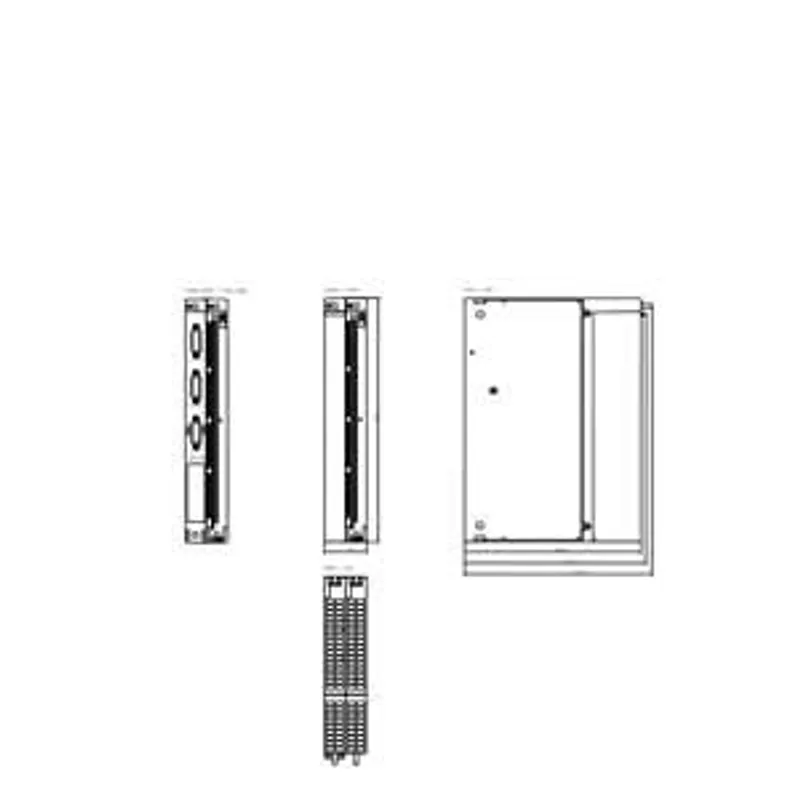

Siemens 6ES7453-3AH00-0AE0 – SIMATIC S7-400, function module FM 453

Name: Siemens 6ES7453-3AH00-0AE0 – SIMATIC S7-400, function module FM 453
Brand: Siemens
SKU: 6ES7453-3AH00-0AE0

MPN: 6ES7453-3AH00-0AE0 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	FM 453 positioning module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.81 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 6ES7453-3AH00-0AE0 be shipped?

6ES7453-3AH00-0AE0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7453-3AH00-0AE0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7453-3AH00-0AE0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7453-3AH00-0AE0, subject to availability and destination.

SIMATIC S7-400, function module FM 453, (3-channel) for positioning with servo and stepper motors, incl. configuration package on CD

Specifications

Supply voltage

Auxiliary voltage 1L+, load voltage 2L+ — Rated value (DC)	24 V
Auxiliary voltage 1L+, load voltage 2L+ — permissible range, lower limit (DC)	20.4 V; Dynamic 18.5 V
Auxiliary voltage 1L+, load voltage 2L+ — permissible range, upper limit (DC)	28.8 V; dynamic 30.2 V

Input current

from load voltage1L+, max.	1 A; with 24 V position encoder; 1 A for 5 V position encoder
from load voltage 2L+ to 4L+, max.	2 A; Per channel
from backplane bus 5 V DC, max.	1.6 A; Rated current

Encoder supply

5 V encoder supply — 5 V	Yes
5 V encoder supply — Output current, max.	300 mA
5 V encoder supply — Cable length, max.	35 m; at max. 210 mA; 25 m at max. 300 mA
24 V encoder supply — 24 V	Yes
24 V encoder supply — Cable length, max.	100 m; at max. 300 mA

Power loss

Power loss, typ.

8 W

Digital inputs

Number of digital inputs	6; for each channel/axis
Functions	configurable
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-3 to +5 V (max. 3 mA)
Input voltage — for signal "1"	11 to 30 V (max. 7 mA)
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.	15 µs; via input voltage range, 8 µs at 24 V DC
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.	45 µs; via input voltage range

Digital outputs

Number of digital outputs	4; for each channel/axis
Functions	configurable
Short-circuit protection	Yes
Output voltage — Rated value (DC)	24 V
Output voltage — for signal "1", min.	UP - 0,3 V
Output current — for signal "1" rated value	0.5 A; at 40 °C; 0.1 A at 60 °C
Output current — for signal "1" permissible range for 0 to 40 °C, min.	5 mA
Output current — for signal "1" permissible range for 0 to 40 °C, max.	0.6 A
Output current — for signal "1" permissible range for 40 to 60 °C, min.	5 mA
Output current — for signal "1" permissible range for 40 to 60 °C, max.	0.12 A
Output current — for signal "0" residual current, max.	2 mA
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	0.25 Hz

Encoder

Connectable encoders — Incremental encoder (symmetrical)	Yes
Connectable encoders — Absolute encoder (SSI)	Yes
Encoder signals, incremental encoder (symmetrical) — Input voltage	5 V difference signal (phys. RS 422)
Encoder signals, incremental encoder (symmetrical) — Input frequency, max.	1 MHz; for 10 m cable length; 0.5 MHz for 35 m cable length
Encoder signals, absolute encoder (SSI) — Input signal	5 V difference signal (phys. RS 422)
Encoder signals, absolute encoder (SSI) — Clock frequency, max.	1.25 Mbit/s at 10 cable length (2.5 Mbit/s available soon)
Encoder signals, absolute encoder (SSI) — Cable length, shielded, max.	250 m; At max. 156 kbit/s

Drive interface

Signal Input — Type	Drive interface step, signal input "READY 1"
Signal Input — Function	"Power section ready" where Ui < 1 V, Ii = 2 mA
Analog drive — Setpoint signal — Rated voltage range	-10 to +10V
Analog drive — Setpoint signal — Output current	-3 to +3 mA
Analog drive — Setpoint signal — Cable length, max.	30 m
Analog drive — Output controller enable — Switching voltage, max.	50 V
Analog drive — Output controller enable — Switching current, max.	1 A
Analog drive — Output controller enable — Switching capacity, max.	30 VA
Stepper drive — Differential output voltage, min.	2 V; RL = 100 Ohm
Stepper drive — Differential output voltage for signal "0", max.	1.1 V; Io = 30 mA
Stepper drive — Differential output voltage for signal "1", min.	3.7 V; Io = -30 mA
Stepper drive — Load resistance, min.	55 Ω
Stepper drive — Output current, max.	60 mA
Stepper drive — Pulse frequency	200 kHz; 500 kHz available soon
Stepper drive — Cable length, shielded, max.	35 m; 35 m with symm. transmission; 10 m with asymm. transmission

Potential separation

Potential separation digital inputs — Potential separation digital inputs	Yes; Optocoupler
Potential separation digital outputs — Potential separation digital outputs	Yes; Optocoupler

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	55 °C
Ambient temperature during storage/transportation — min.	-40 °C
Ambient temperature during storage/transportation — max.	70 °C
