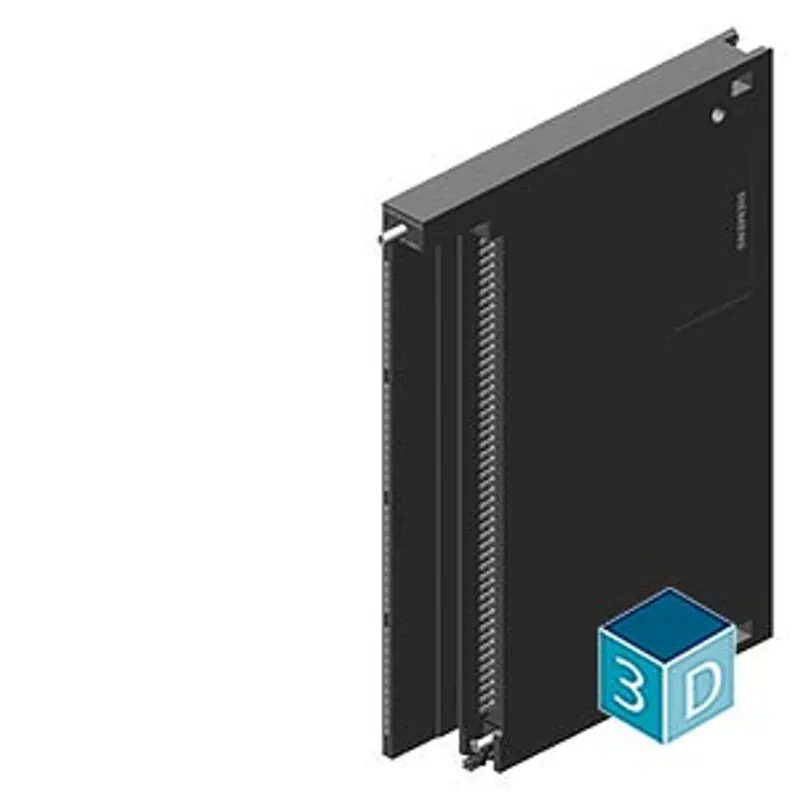

Siemens 6ES7450-1AP01-0AE0
SIMATIC S7-400, function module FM 450-1 for counter function with 2 channels incl. configuration package on…
- MPN
- 6ES7450-1AP01-0AE0
- Category
- FM 450-1 counter module
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7450-1AP01-0AE0?
SIMATIC S7-400, function module FM 450-1 for counter function with 2 channels incl. configuration package on CD
Specifications
Supply voltage
| Auxiliary voltage 1L+, load voltage 2L+ — Rated value (DC) | 24 V |
| Auxiliary voltage 1L+, load voltage 2L+ — permissible range, lower limit (DC) | 20.4 V; Dynamic 18.5 V |
| Auxiliary voltage 1L+, load voltage 2L+ — permissible range, upper limit (DC) | 28.8 V; dynamic 30.2 V |
Input current
| from load voltage 1L+ (without load), max. | 50 mA |
| from load voltage 2L+ (without load), max. | 60 µA |
| from backplane bus 5 V DC, max. | 300 mA |
Encoder supply
| 5 V encoder supply — 5 V | Yes; 5.2 V ±2 % |
| 5 V encoder supply — Short-circuit protection | Yes |
| 5 V encoder supply — Output current, max. | 300 mA |
| 24 V encoder supply — 24 V | Yes; 1L+ (-3 V) |
| 24 V encoder supply — Short-circuit protection | Yes |
| 24 V encoder supply — Output current, max. | 300 mA |
Power loss
| Power loss, typ. | 6 W |
Digital inputs
| Number of digital inputs | 6 |
| Functions | 1 for gate start, 1 for gate stop, 1 for setting the counter |
| Input voltage — for signal "0" | -28.8 ... +5V |
| Input voltage — for signal "1" | +11 to +28.8V |
| Input current — for signal "1", typ. | 9 mA |
| Input delay (for rated value of input voltage) — Input frequency (with a time delay of 0.1 ms), max. | 200 kHz |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 2.5 µs; ≥ 2.5 µs (200 kHz); ≤ 25 µs (20 kHz) |
Digital outputs
| Number of digital outputs | 4 |
| Short-circuit protection | Yes; Clocked electronically |
| Limitation of inductive shutdown voltage to | 2L+ (-39 V) |
| Output voltage — for signal "0", max. | 3 V |
| Output voltage — for signal "1", min. | 2L+ (-1,5 V) |
| Output current — for signal "1" rated value | 0.5 A; Res. / P.D. 5 W tungsten 24 V DC |
| Output current — for signal "1" permissible range for 0 to 60 °C, min. | 5 mA |
| Output current — for signal "1" permissible range for 0 to 60 °C, max. | 0.6 A |
| Output delay with resistive load — "0" to "1", max. | 300 µs |
Encoder
| Connectable encoders — Incremental encoder (symmetrical) | Yes; With 2 pulse trains offset by 90° |
| Connectable encoders — Incremental encoder (asymmetrical) | Yes |
| Connectable encoders — 24 V initiator | Yes |
| Connectable encoders — 24 V directional element | Yes; 1 pulse train, 1 direction level |
Interrupts/diagnostics/status information
| Status indicator | Yes; 14 green LEDs for status of CR, DIR, inputs and outputs |
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Alarms — Hardware interrupt | Yes; Parameterizable |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnostics indication LED — internal fault INTF (red) | Yes |
| Diagnostics indication LED — external fault EXTF (red) | Yes |
| Diagnostics indication LED — Status indicator digital input (green) | Yes |
| Diagnostics indication LED — Status indicator digital output (green) | Yes |
Counter
| Number of counter inputs | 2; 32 bit or ±31 bit |
| Counter input 5 V — Type | RS 422 |
| Counter input 5 V — terminating resistor | 220 Ω |
| Counter input 5 V — Differential input voltage | min. 0.5 V |
| Counter input 5 V — Counting frequency, max. | 500 kHz |
| Counter input 24 V — Input voltage for signal "0" | -30 to +5 V |
| Counter input 24 V — Input voltage for signal "1" | +11 to +30V |
| Counter input 24 V — Input current for signal "1", typ. | 9 mA |
| Counter input 24 V — Counting frequency, max. | 200 kHz |
| Counter input 24 V — Minimum pulse width | ≥ 2.5 µs (200 kHz); ≥ 25 µs (20 kHz) (parameterizable) |
Potential separation
| Potential separation digital inputs — between the channels and backplane bus | Yes; Optocoupler |
| Potential separation digital outputs — between the channels and backplane bus | Yes; Optocoupler |
| Potential separation counter — between the channels and backplane bus | Yes; Optocoupler |
Isolation
| Isolation tested with | 500 V |
Connection method
| required front connector | 1x 48-pin |

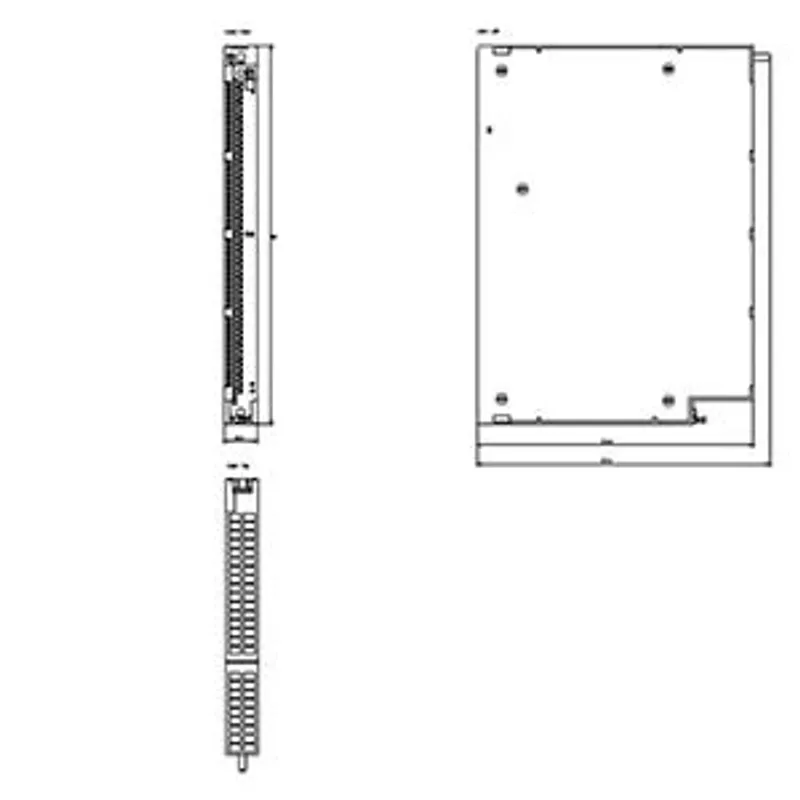

Dimensions
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
Weights
| Weight, approx. | 650 g |
