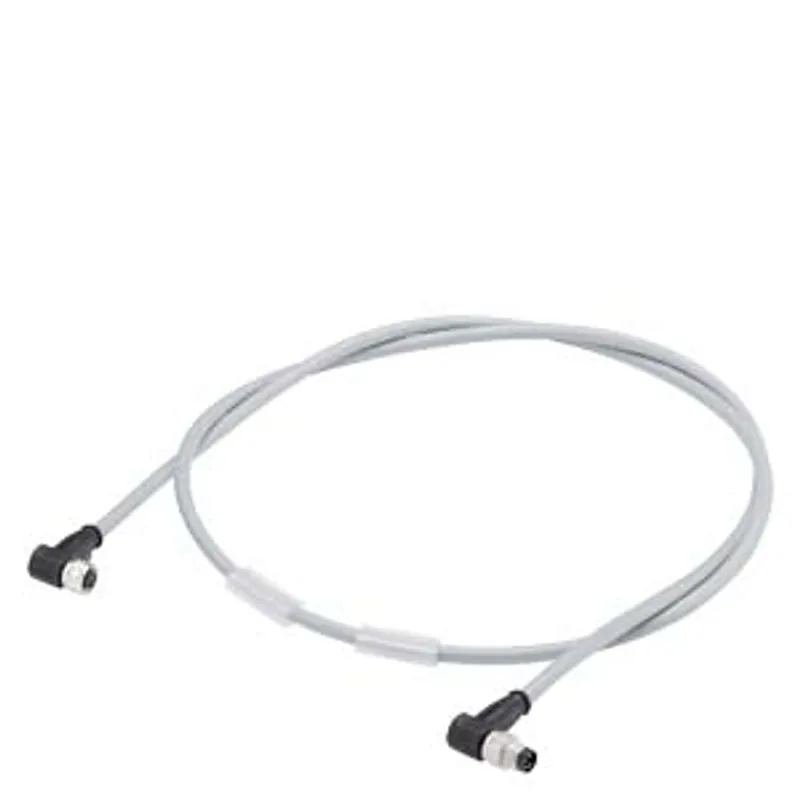

Siemens 6ES7194-2MN15-1AB0
Power cable M8, PUR cable both ends assembled with M8 connector angled and M8 socket angled, 4-pole
- MPN
- 6ES7194-2MN15-1AB0
- Category
- Cables and connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7194-2MN15-1AB0?
Power cable M8, PUR cable both ends assembled with M8 connector angled and M8 socket angled, 4-pole, Length 15 m
Specifications
General information
| Product type designation | Power cable |
| Product description | Flexible cable (4-core), preassembled at each end with a 4-pin M8 male / female connector, angled |
| Suitability for use | For connection to ET 200AL for 24 V DC power supply |
Degree and class of protection
| IP degree of protection | IP65/67 |
Ambient conditions
| Ambient temperature during assembly, min. | -25 °C |
| Ambient temperature during assembly, max. | 80 °C |
| Ambient temperature during storage/transportation — min. | -25 °C |
| Ambient temperature during storage/transportation — max. | 80 °C |
Cables
| Cable designation | LIF9Y11YFHF 4x 0.50 mm² |
| Cable length | 15 m |
| Number of electrical cores | 4 |
| Outer diameter of inner conductor | 1 mm |
| Outer diameter of core insulation | 1.46 mm |
| Outer diameter of cable sheath | 5.1 mm |
| Number of bending cycles | 2 000 000; cable carrier compliant for 2 million bending cycles with a bending radius of 51 mm, a speed of 5 m/s and an acceleration of 5 m/s² |
| Permissible bending radius, single bend, min. | 26 mm |
| Permissible bending radius, multiple bends, min. | 51 mm |
| Bending radius for continuous bending | 51 mm |
| Color of cable sheath | gray |
| Color of core insulation of energy core | white / brown / blue / black |
| Weight per length | 44 kg/km |
Mechanics/material
| Outgoing feeder type | 90 degree cable outlet |
| Material of cable sheath | PE-PUR |
| Material of core insulation | PP |
| Material property — Halogen-free | Yes |
| Material property — Silicone-free | Yes |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7194-2MN15-1AB0: frequently asked questions
When can 6ES7194-2MN15-1AB0 be shipped?
6ES7194-2MN15-1AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7194-2MN15-1AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7194-2MN15-1AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7194-2MN15-1AB0, subject to availability and destination.
