Cables and connectors Parts
Compare Cables and connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable designation | Cable length | Outer diameter of inner conductor | Outer diameter of cable sheath | Permissible bending radius, multiple bends, min. |
|---|---|---|---|---|---|
| 6ES7194-2LN10-1AC0 | 4 Li9Y 0.50 mm² Y | 10 m | 0.8 mm | 5.2 mm | 52 mm |

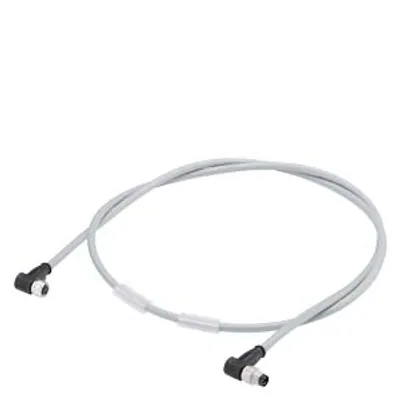

| 6ES7194-2LN10-1AB0 | 4 Li9Y 0.50 mm² Y | 10 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2LN10-1AA0 | 4 Li9Y 0.50 mm² Y | 10 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2LN10-0AC0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 10 m | 0.5 mm | 5 mm | 40 mm |

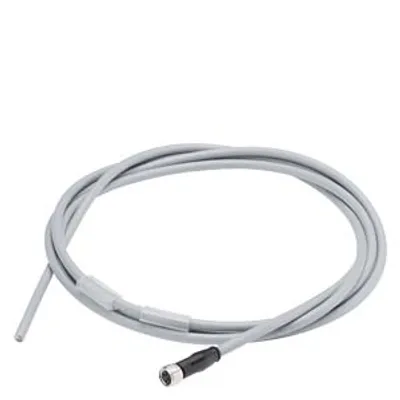

| 6ES7194-2LH50-1AC0 | 4 Li9Y 0.50 mm² Y | 5 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2LH03-0AB0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 0.3 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LH03-0AA0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 0.3 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LH02-1AA0 | 4 Li9Y 0.50 mm² Y | 0.19 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2MN15-1AC0 | LIF9Y11YFHF 4x 0.50 mm² | 15 m | 1 mm | 5.1 mm | 51 mm |
| 6ES7194-2MN15-1AB0 | LIF9Y11YFHF 4x 0.50 mm² | 15 m | 1 mm | 5.1 mm | 51 mm |

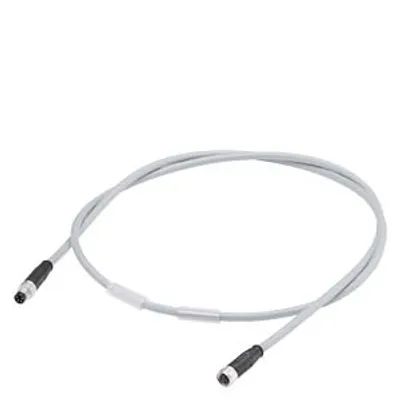

| 6ES7194-2MN15-1AA0 | LIF9Y11YFHF 4x 0.50 mm² | 15 m | 1 mm | 5.1 mm | 51 mm |

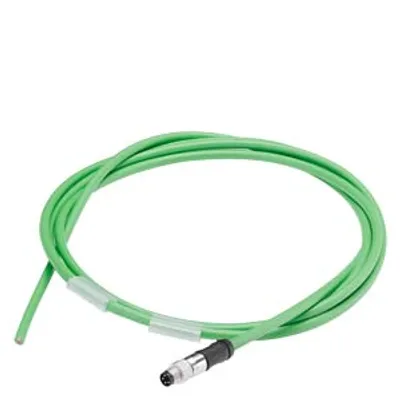

| 6ES7194-2MN10-0AC0 | 2Y(ST)C11Y 2x2x0.5/1.0-100-GN | 10 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2MN10-0AB0 | 2Y(ST)C11Y 2x2x0.5/1.0-100-GN | 10 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2MN10-0AA0 | 2Y(ST)C11Y 2x2x0.5/1.0-100-GN | 10 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LN15-1AA0 | 4 Li9Y 0.50 mm² Y | 15 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2LN15-0AC0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 15 m | 0.5 mm | 5 mm | 40 mm |

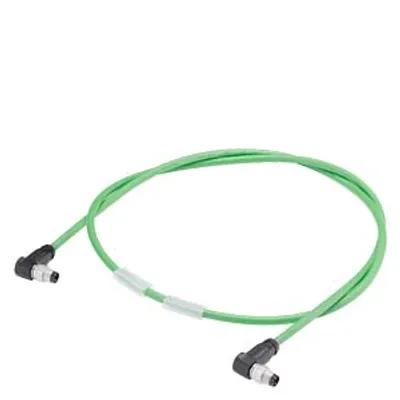

| 6ES7194-2LN15-0AB0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 15 m | 0.5 mm | 5 mm | 40 mm |

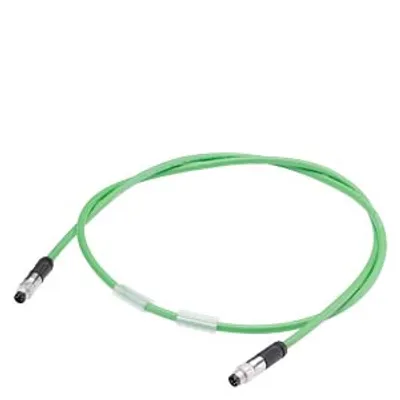

| 6ES7194-2LN15-0AA0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 15 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LH20-0AC0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 2 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LH20-0AB0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 2 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LH20-0AA0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 2 m | 0.5 mm | 5 mm | 40 mm |
| 6ES7194-2LH10-1AB0 | 4 Li9Y 0.50 mm² Y | 1 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2LH10-1AA0 | 4 Li9Y 0.50 mm² Y | 1 m | 0.8 mm | 5.2 mm | 52 mm |
| 6ES7194-2LH10-0AB0 | 2Y(ST)CY 1x4x0.5/1.0-100-GN | 1 m | 0.5 mm | 5 mm | 40 mm |
Common to all listed parts
| IP degree of protection | IP65/67 |
| Ambient temperature during assembly, max. | 80 °C |
| Ambient temperature during storage/transportation — max. | 80 °C |
| Number of electrical cores | 4 |
| Material property — Silicone-free | Yes |
