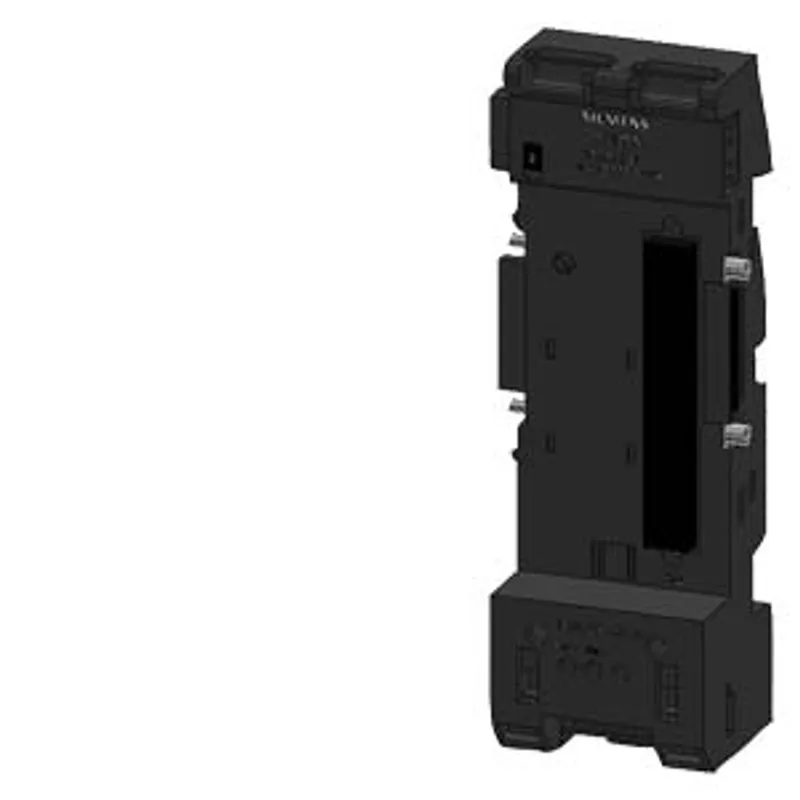

Siemens 6ES7193-7DB20-0AA0

SIMATIC, terminal module TM-PS-B for ET200iSP, in addition to TM-PS-A

MPN: 6ES7193-7DB20-0AA0
Category: Power supply unit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7193-7DB20-0AA0?

SIMATIC, terminal module TM-PS-B for ET200iSP, in addition to TM-PS-A, for holding the redundant power supply module 120/230 V AC and 24 V DC, Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb

Specifications

General information

Product type designation

TM-PS-B UC

Installation type/mounting

Rack mounting	No
Front mounting	Yes
Rail mounting	Yes
Wall mounting/direct mounting	No

Supply voltage

Type of supply voltage	AC
permissible range, lower limit (AC)	85 V
permissible range, upper limit (AC)	264 V

Input current

At 50 Hz AC, max.	6 A
At 60 Hz AC, max.	6 A

Output voltage

Type of output voltage	DC
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V

Output current

At DC, max.

5 A

Hardware configuration

Slots — Number of slots	1
Slots — Plug-in modules, analog I/O	No
Slots — Plug-in modules, digital I/O	No
Slots — Plug-in modules, function modules and technology modules	No
Slots — Plug-in modules, communication modules	No
Slots — Plug-in modules, CPUs	No
Slots — Plug-in modules, others	Yes

Isolation

Isolation tested with

2500 V AC between control supply voltages and all output voltages

Standards, approvals, certificates

CE mark	CE 0344
UKCA mark	DEKRA 21UKEX0032 Importer UK: Siemens plc Manchester M20 2UR
cULus	LISTED E334384
FM approval	CLASSIFIED 3025852
Suitable for safety functions	Yes
INMETRO certificate	UL-BR 12.0077
Use in hazardous areas — ATEX marking	II 2 G (1) G Ex eb [ia Ga/ib] IIC T4 Gb II 2 G (1) D Ex eb [ia IIIC Da] IIC T4 Gb I M2 Ex eb [ia/ib] I Mb
Use in hazardous areas — ATEX certificate	KEMA 04 ATEX 2242
Use in hazardous areas — IECEx	IECEx KEM 05.0003
Use in hazardous areas — CCC Ex	2020322310002881
Use in hazardous areas — Explosion protection category for gas	ATEX gas explosion protection, Zone 1
Use in hazardous areas — Explosion protection category for dust	ATEX dust explosion protection, Zone 21 always install in corresponding enclosure
Use in hazardous areas — associated equipment (Ex ia)	No
Use in hazardous areas — associated equipment (Ex ib)	No

Connection method

Terminals — Conductor cross-section, min.	0.5 mm²; note "Wiring rules for ET 200iSP"
Terminals — Conductor cross-section, max.	4 mm²

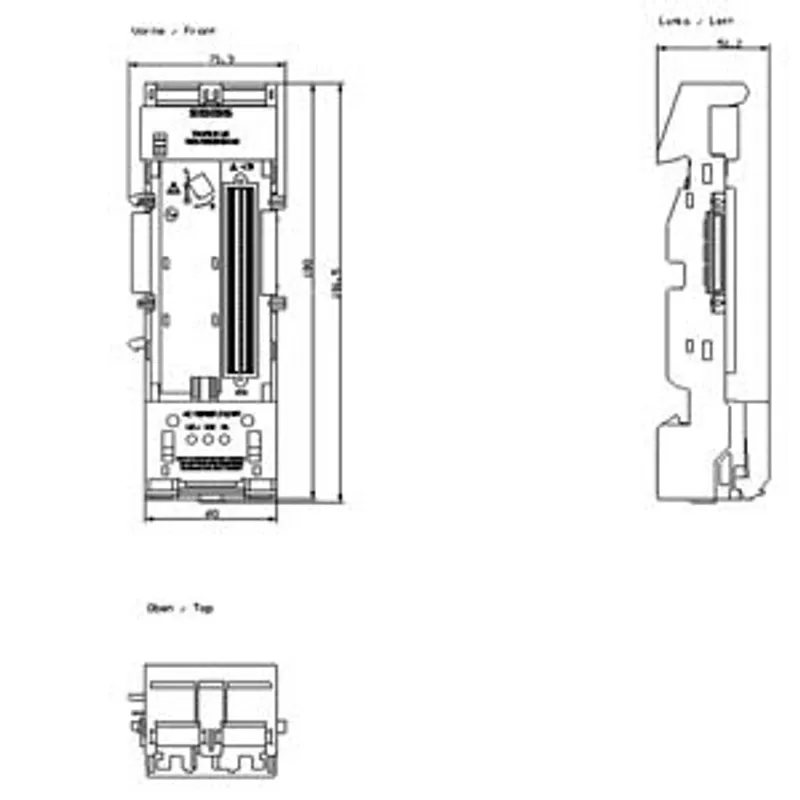

Dimensions

Width	60 mm
Height	190 mm
Depth	52 mm

Weights

Weight, approx.

230 g
