Siemens 6ES7193-7AB00-0AA0
SIMATIC, terminal module TM-IM/IM for ET200iSP, for holding two IM152-1 units, in redundant operation
- MPN
- 6ES7193-7AB00-0AA0
- Category
- Interface modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

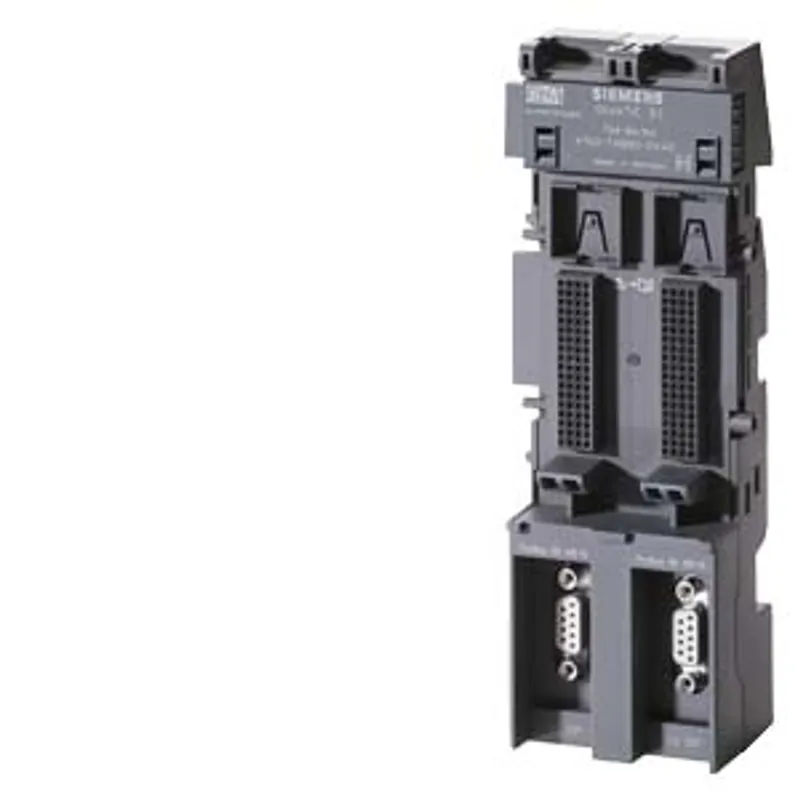

What is the Siemens 6ES7193-7AB00-0AA0?
SIMATIC, terminal module TM-IM/IM for ET200iSP, for holding two IM152-1 units, in redundant operation, incl. power bus termination module, Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
Specifications
General information
| Product type designation | TM-IM/IM |
Installation type/mounting
| Rack mounting | No |
| Front mounting | Yes |
| Rail mounting | Yes |
| Wall mounting/direct mounting | No |
Supply voltage
| Type of supply voltage | DC |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| At DC, max. | 4 A |
Output voltage
| Type of output voltage | DC |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Output current
| At DC, max. | 4 A |
Hardware configuration
| Slots — Number of slots | 2 |
| Slots — Plug-in modules, analog I/O | No |
| Slots — Plug-in modules, digital I/O | No |
| Slots — Plug-in modules, function modules and technology modules | No |
| Slots — Plug-in modules, communication modules | No |
| Slots — Plug-in modules, CPUs | Yes |
| Slots — Plug-in modules, others | Yes |
Standards, approvals, certificates
| CE mark | CE 0344 |
| UKCA mark | DEKRA 21UKEX0032 Importer UK: Siemens plc Manchester M20 2UR |
| cULus | LISTED E334384 |
| FM approval | CLASSIFIED 3025852 |
| Suitable for safety functions | Yes |
| INMETRO certificate | UL-BR 12.0077 |
| reference designation according to IEC 81346-2 (2009) | XX |
| Use in hazardous areas — ATEX marking | II 2 G (1) G Ex eb [ia Ga/ib] IIC T4 Gb II 2 G (1) D Ex eb [ia IIIC Da] IIC T4 Gb I M2 Ex eb [ia/ib] I Mb |
| Use in hazardous areas — ATEX certificate | KEMA 04 ATEX 2242 |
| Use in hazardous areas — IECEx | IECEx KEM 05.0003 |
| Use in hazardous areas — CCC Ex | 2020322310002881 |
| Use in hazardous areas — Explosion protection category for gas | ATEX gas explosion protection, Zone 1 |
| Use in hazardous areas — Explosion protection category for dust | ATEX dust explosion protection, Zone 21 always install in corresponding enclosure |
| Use in hazardous areas — associated equipment (Ex ia) | Yes |
| Use in hazardous areas — associated equipment (Ex ib) | Yes |
| Marine approval — Germanischer Lloyd (GL) | Yes |
| Marine approval — American Bureau of Shipping (ABS) | Yes |
| Marine approval — Bureau Veritas (BV) | Yes |
| Marine approval — Det Norske Veritas (DNV) | Yes |

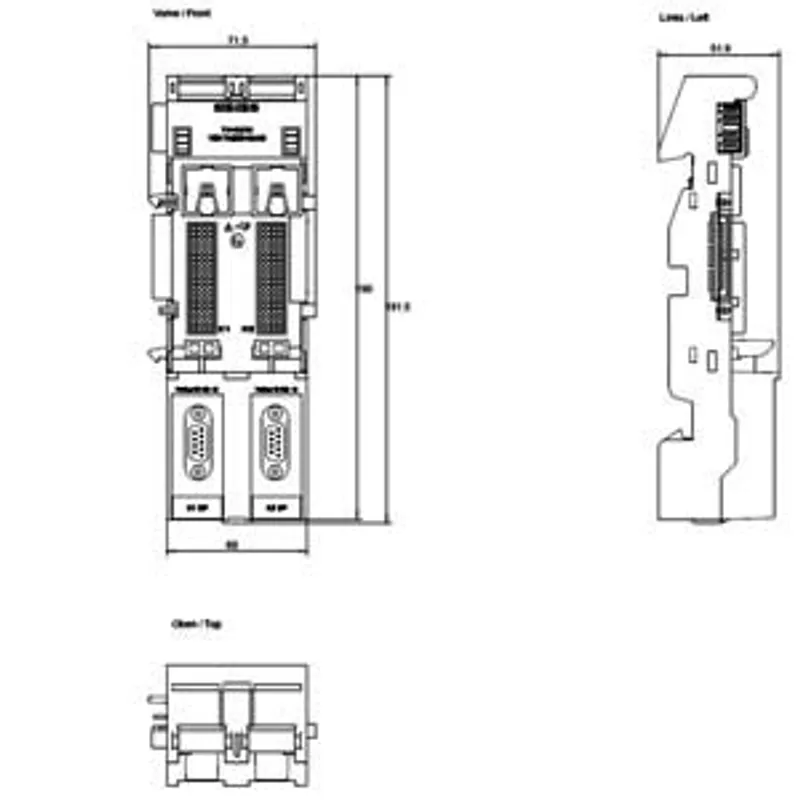

Dimensions
| Width | 60 mm |
| Height | 190 mm |
| Depth | 52 mm |
Weights
| Weight, approx. | 195 g |
