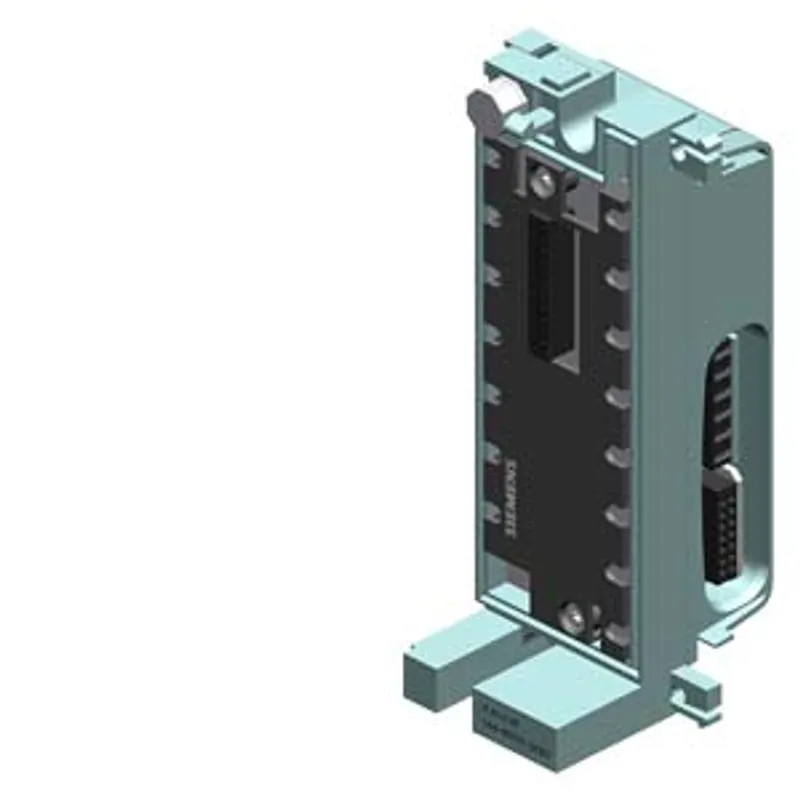

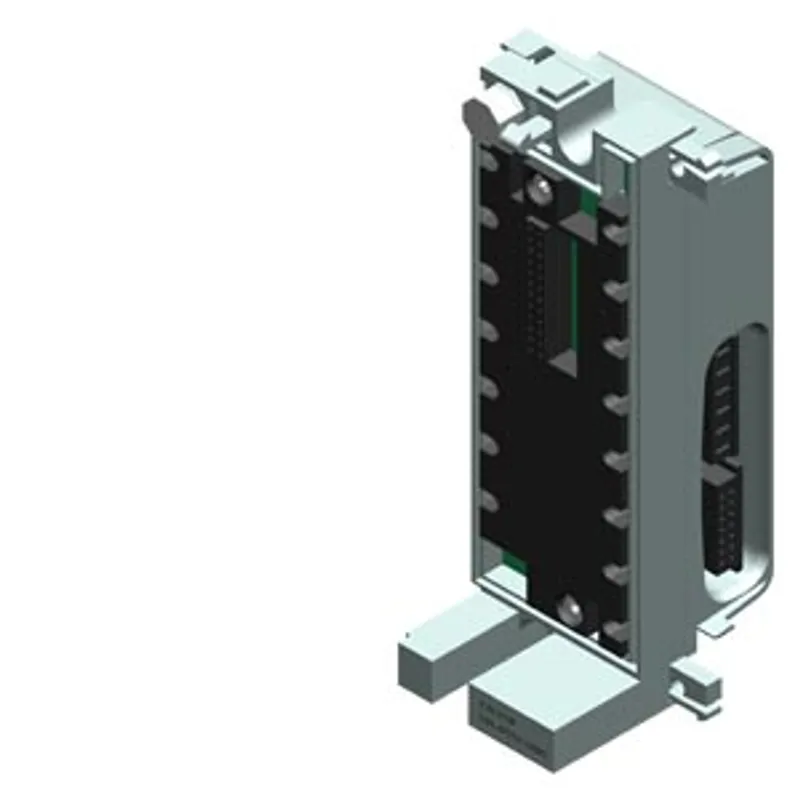

Siemens 6ES7144-4FF01-0AB0
SIMATIC DP, Electronic module for ET 200 PRO 4 AI U High Feature, +-10 V; 0...10 V; +-5 V; 1...5V
- MPN
- 6ES7144-4FF01-0AB0
- Category
- Analog expansion modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7144-4FF01-0AB0?
SIMATIC DP, Electronic module for ET 200 PRO 4 AI U High Feature, +-10 V; 0...10 V; +-5 V; 1...5V; Channel diagnostics; incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately
Specifications
Supply voltage
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes; against destruction |
Input current
| from supply voltage 1L+, max. | 40 mA; Typical |
| from backplane bus 3.3 V DC, max. | 12 mA; Typical |
Encoder supply
| Number of outputs | 4 |
| Short-circuit protection | Yes; per module, electronic to frame |
| Output current — up to 55 °C, max. | 1 A |
Power loss
| Power loss, typ. | 1.1 W |
Address area
| Address space per module — Address space per module, max. | 8 byte |
Analog inputs
| Number of analog inputs | 4 |
| permissible input voltage for voltage input (destruction limit), max. | 35 V |
| Cycle time (all channels) max. | 5 ms |
| Input ranges (rated values), voltages — 0 to +10 V | Yes |
| Input ranges (rated values), voltages — 1 V to 5 V | Yes |
| Input ranges (rated values), voltages — 10 V to +10 V | Yes |
| Input ranges (rated values), voltages — 5 V to +5 V | Yes |
| Cable length — shielded, max. | 30 m |
Analog value generation for the inputs
| Measurement principle | integrating |
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 15 bit; 15 bit + sign at ±10 V, at ±5 V; 15 bit at 0 V to 10 V, at 1 V to 5 V |
| Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz | 16,67 / 50 / 60 / 3 600 |
| Smoothing of measured values — Parameterizable | Yes |
| Smoothing of measured values — Step: None | Yes; 1x cycle time |
| Smoothing of measured values — Step: low | Yes; 4x cycle time |
| Smoothing of measured values — Step: Medium | Yes; 16x cycle time |
| Smoothing of measured values — Step: High | Yes; 64x cycle time |
Encoder
| Connection of signal encoders — for voltage measurement | Yes |
Errors/accuracies
| Linearity error (relative to input range), (+/-) | 0.0075 % |
| Temperature error (relative to input range), (+/-) | 0.00075 %/K |
| Crosstalk between the inputs, min. | -70 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.004 % |
| Operational error limit in overall temperature range — Voltage, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-) | 0.075 % |
| Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency — Series mode interference (peak value of interference < rated value of input range), min. | 60 dB |
| Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency — Common mode interference (USS < 2.5 V), min. | 80 dB; Interference voltage < 10 V |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Alarms — Hardware interrupt | Yes; (limit value alarm), can be parameterized for channel 0 |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Wire break | Yes; at 1 to 5 V |
| Diagnoses — short-circuit | Yes; at 1 to 5 V |
| Diagnostics indication LED — Group error SF (red) | Yes |
Potential separation
| Potential separation analog inputs — between the channels | No |
| Potential separation analog inputs — between the channels and backplane bus | Yes |
Permissible potential difference
| Between the inputs and MANA (UCM) | 10 Vpp AC |
Isolation
| Isolation tested with | 707 V DC (type test) |

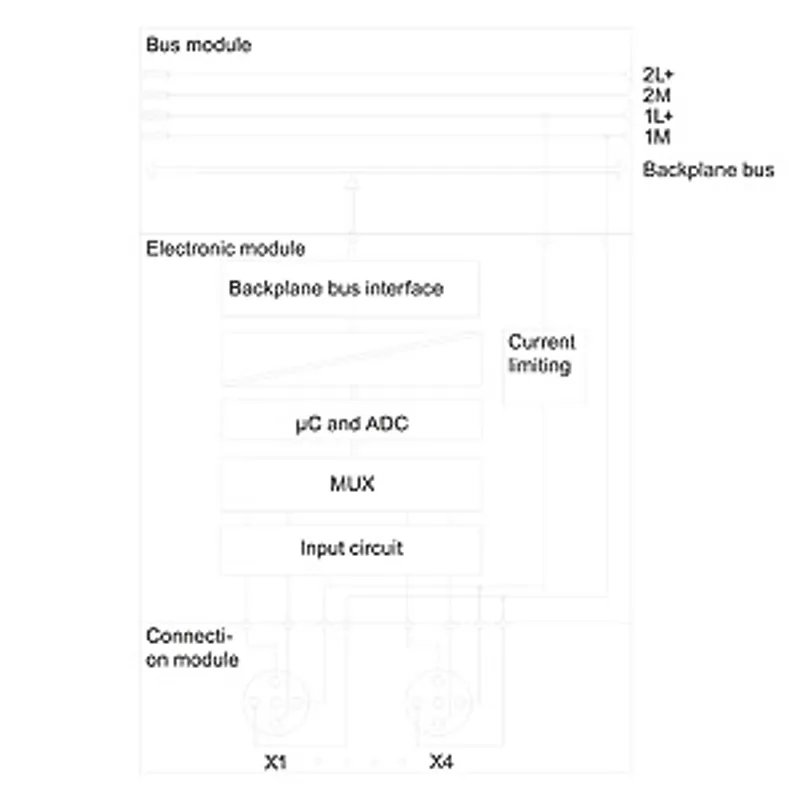

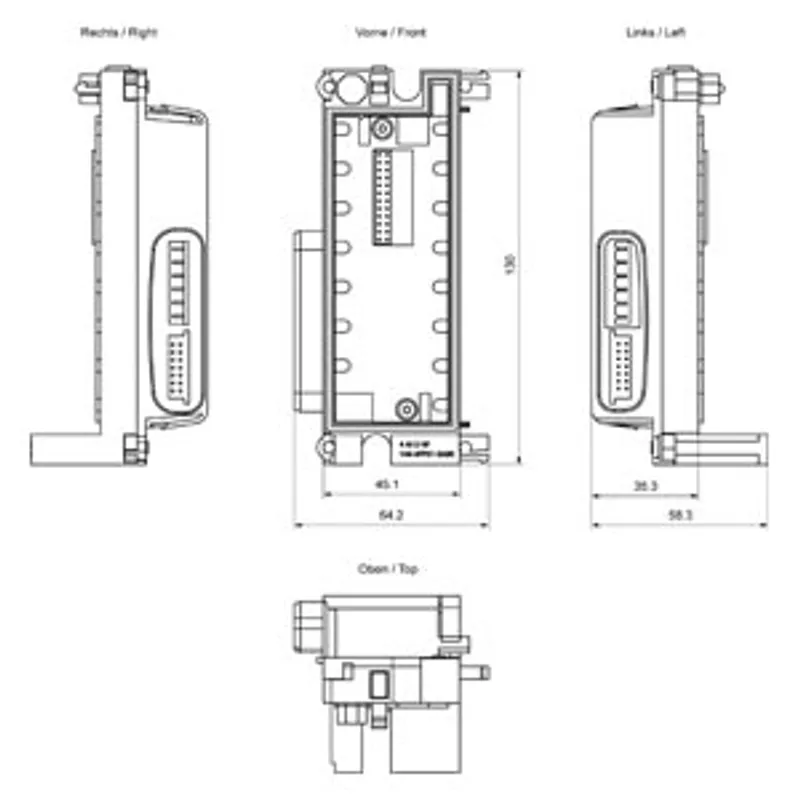

Dimensions
| Width | 45 mm |
| Height | 130 mm |
| Depth | 35 mm |
Weights
| Weight, approx. | 150 g |
