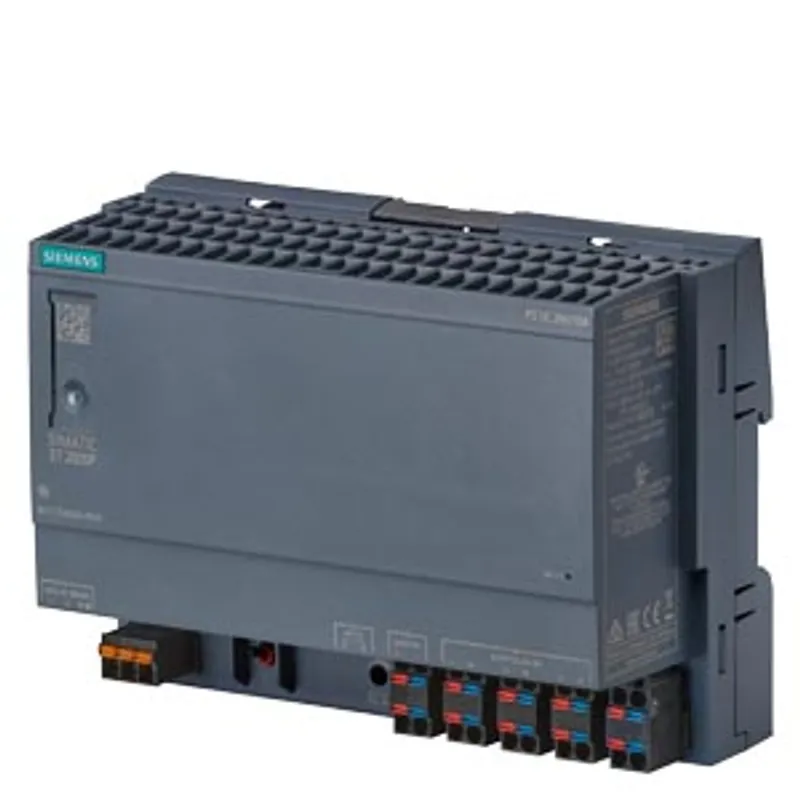

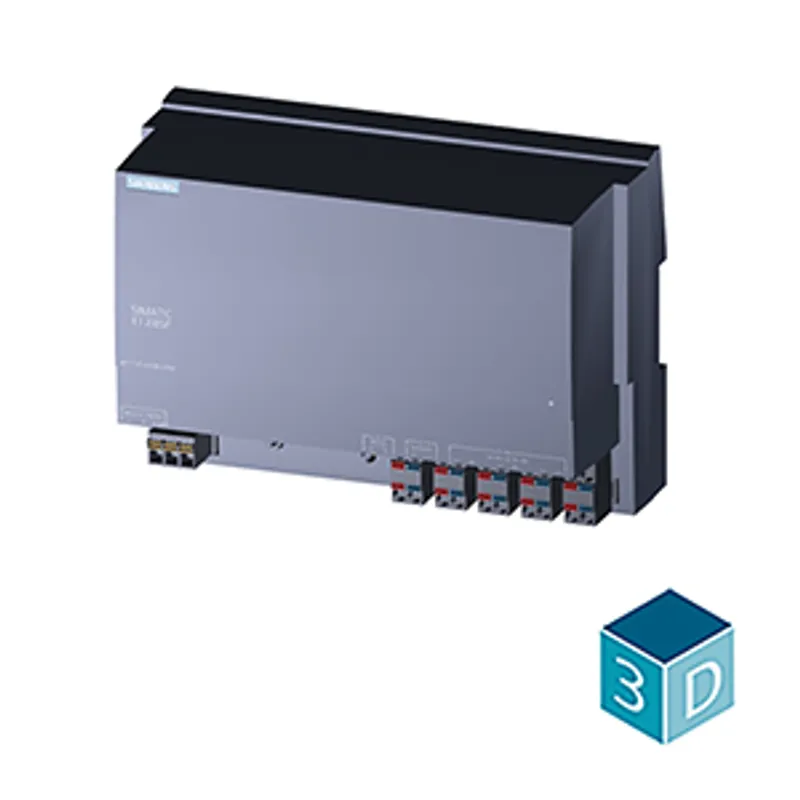

What is the Siemens 6EP7133-6AE00-0BN0?
SIMATIC ET 200SP PS 24V/10A Stabilized power supply Input: 120/230 V AC Output: 24 V DC/10 A
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP7133-6AE00-0BN0 |
| product brand name | SIMATIC |
| product type designation | ET 200SP |
| product designation | Design power supply for SIMATIC ET 200SP |
| type of current supply | 24 V/10 A |
input
| type of the power supply network | 1-phase AC |
| phase number | 1 |
| voltage curve at input | AC |
| supply voltage at AC | Automatic range selection |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 170 ... 264 V |
| supply voltage — at 50 Hz | 230 V |
| supply voltage — at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| line frequency | 47 ... 63 Hz |
| wide range input | No |
| overvoltage overload capability | 2.3 × Vin rated, 1.3 ms |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| input current — at rated input voltage 120 V | 4.34 A |
| input current — at rated input voltage 230 V | 1.92 A |
| current limitation of inrush current at 25 °C maximum | 60 A |
| I2t value maximum | 6.3 A²·s |
| fuse protection type | T 6.3 A/250 V (not accessible) |
| fuse protection type in the feeder | recommended LS switch: B/C 10 A/6 A |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 22.8 ... 28 V |
| relative overall tolerance of the voltage | 3 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.1 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 1 % |
| residual ripple — maximum | 150 mV |
| residual ripple — typical | 50 mV |
| voltage peak — maximum | 240 mV |
| voltage peak — typical | 150 mV |
| display version for normal operation | Green LED for 24 V OK |
| type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" |
| behavior of the output voltage when switching on | Overshoot of Vout < 3 % |
| response delay maximum | 0.3 s |
| voltage increase time of the output voltage — typical | 30 ms |
| output current — rated value | 10 A |
| output current — rated range | 0 ... 12 A; 10 A up to +60°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 240 W |
| short-term overload current — on short-circuiting during the start-up typical | 30 A |
| short-term overload current — at short-circuit during operation typical | 30 A |
| duration of overloading capability for excess current — on short-circuiting during the start-up | 750 ms |
| duration of overloading capability for excess current — at short-circuit during operation | 800 ms |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
efficiency
| efficiency in percent | 90 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 26 W |
| power loss [W] — during no-load operation maximum | 2.8 W |
closed-loop control
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3 % |
| setting time — load step 10 to 90% typical | 1 ms |
| setting time — load step 90 to 10% typical | 1 ms |
protection and monitoring
| design of the overvoltage protection | protection against overvoltage in case of internal fault Vout < 31.8 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| response value current limitation | 14 ... 15 A |
| overcurrent overload capability — in normal operation | overload capability 150 % Iout rated up to 5 s/min |
| enduring short circuit current RMS value — typical | 14.1 A |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current — maximum | 3.5 mA |
| leakage current — typical | 1 mA |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 61000-6-3 Class B |
| standard — for mains harmonics limitation | EN 61000-3-2 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL61010-2-201, CSA C22.2 No.142) |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — NEC Class 2 | No |
| type of certification — CB-certificate | Yes |
| MTBF at 40 °C | 1 114 510 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | Yes; IECEx Ex ec nC IIC T3 Gc |
| certificate of suitability — ATEX | Yes; ATEX (EX) II 3G Ex ec nC IIC T3 Gc |
| certificate of suitability — ULhazloc approval | Yes |
| certificate of suitability — UKEX | Yes |
| certificate of suitability — CCC for hazardous zone according to GB standard | Yes |
standards, specifications, approvals marine classification
| shipbuilding approval | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | Yes |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 725 kg |
| global warming potential [CO2 eq] — during manufacturing | 13.2 kg |
| global warming potential [CO2 eq] — during operation | 711.1 kg |
| global warming potential [CO2 eq] — after end of life | 0.48 kg |
ambient conditions
| ambient temperature — during operation | -30 ... +70 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |

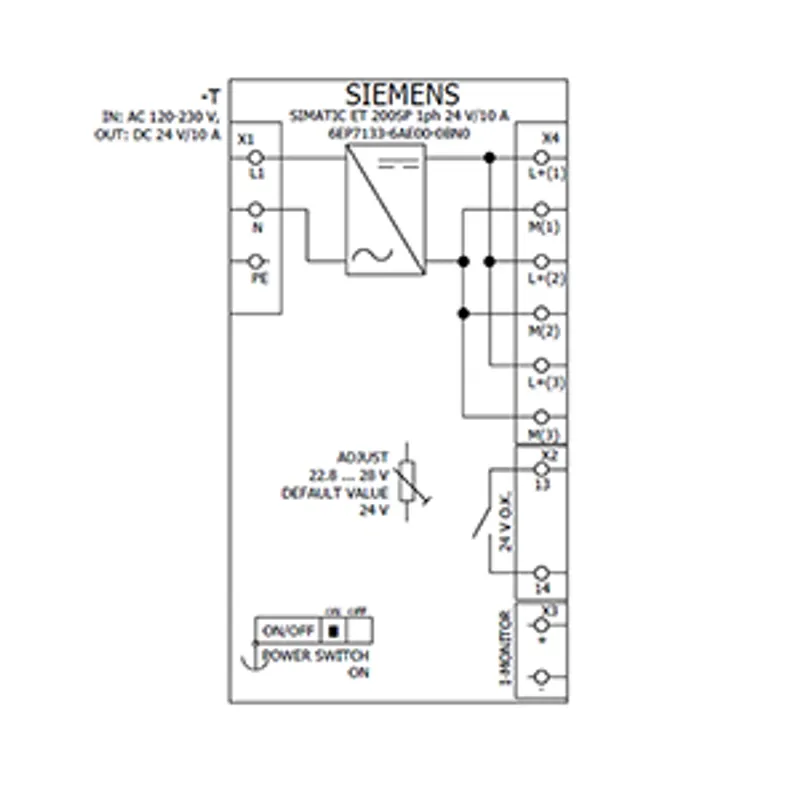

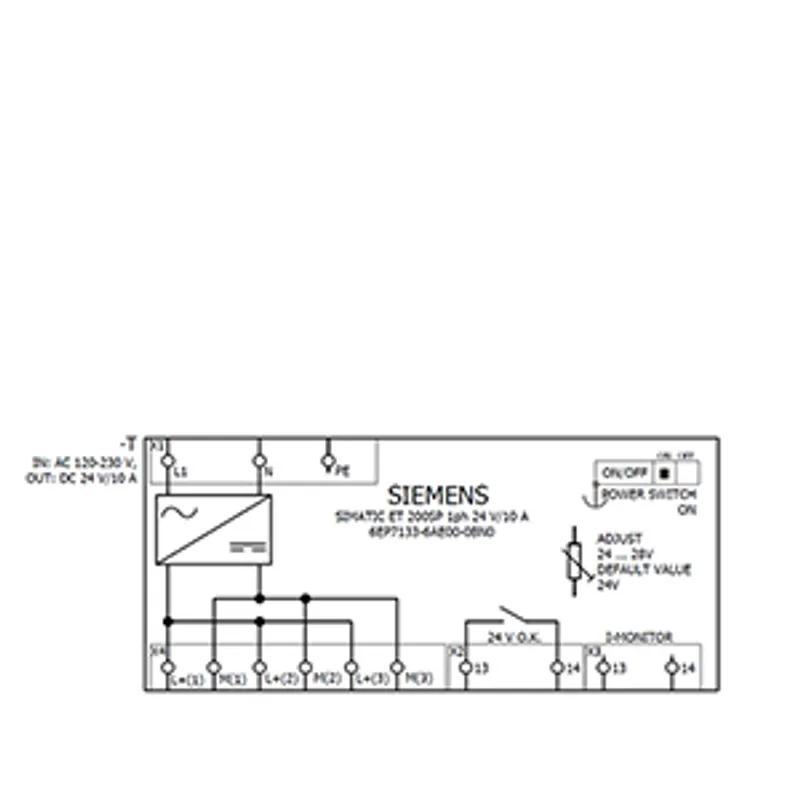

connection method
| type of electrical connection | push-in terminals |
| type of electrical connection — at input | L, N, PE: 1 push-in terminal each for 0.2 ... 2.5 mm² single-core/finely stranded |
| type of electrical connection — at output | +, -: 2 push-in terminals each for 0.2 ... 2.5 mm² |
| type of electrical connection — for auxiliary contacts | Signaling contact: 2 push-in terminals for 0.2 ... 2.5 mm² |
| type of electrical connection — for signaling contact | 2 push-in terminals for 0.2 ... 2.5 mm² |
| removable terminal at input | Yes |
| removable terminal at output | Yes |

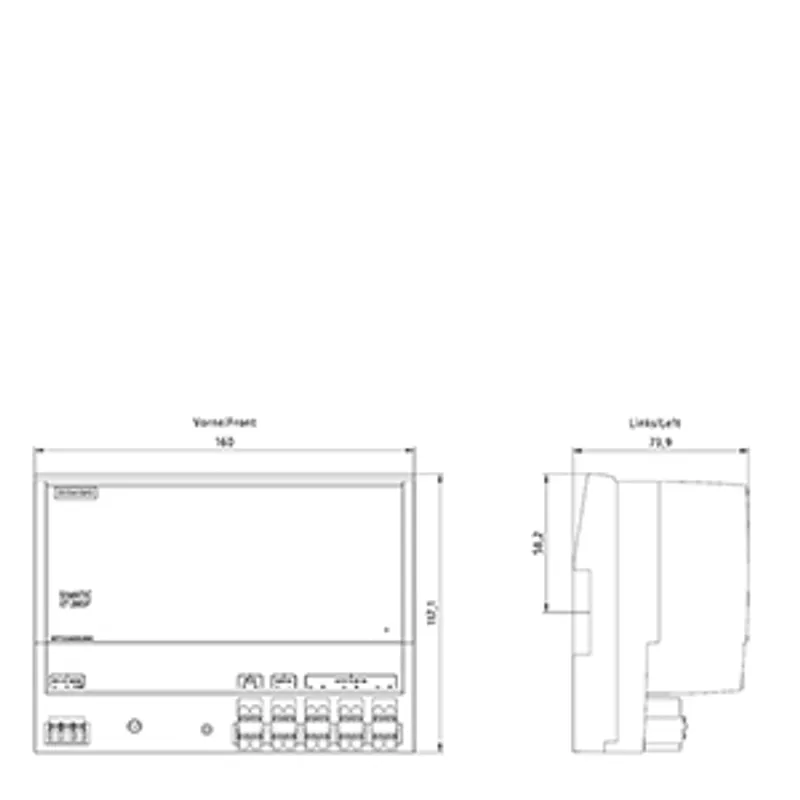

mechanical data
| width × height × depth of the enclosure | 160 × 117 × 74 mm |
| installation width × mounting height | 160 mm × 174 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 50 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| fastening method — DIN-rail mounting | Yes |
| fastening method — S7 rail mounting | No |
| fastening method — wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.7 kg |
accessories
| electrical accessories | Redundancy module, buffer module, selectivity module, DC UPS |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 13.2 kg |
| global warming potential [CO2 eq] / during operation | 711.1 kg |
| global warming potential [CO2 eq] / after end of life | 0.48 kg |
| global warming potential [CO2 eq] / total | 725 kg |
