Siemens 6EP5406-5AA00

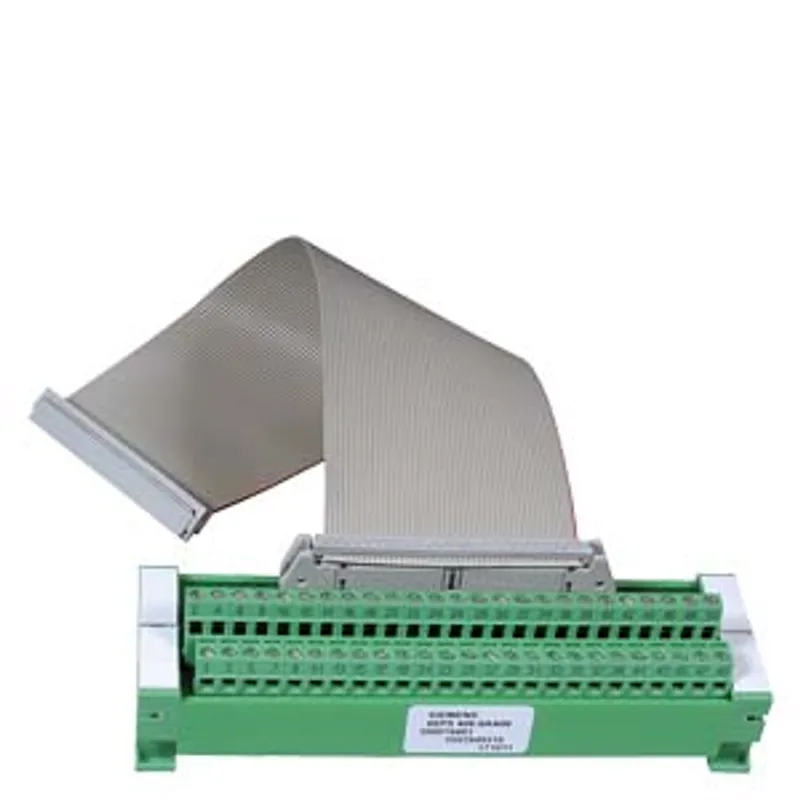

Transf. Module 50PIN. 1TO1 W/O LED Terminal strip converter from 50-pin IDC connector to Screw terminals for…

MPN: 6EP5406-5AA00
Category: Terminal Blocks & Connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP5406-5AA00?

Transf. Module 50PIN. 1TO1 W/O LED Terminal strip converter from 50-pin IDC connector to Screw terminals for 1 to 1 connection O. LED

Specifications

electrical data

Technical Product Detail Page	https://i.siemens.com/1P6EP5406-5AA00
operating voltage — at DC / rated value	60 V
operating voltage — rated value	60 V
operating voltage — at DC / maximum	60 V
ampacity / per pin / maximum	1 A
continuous current / at DC / per signal cable / maximum	1 A
product function / infeed function	No
product component — PE connection	No
product component — shield connection	No
product component — disconnector	No
product feature / cross-connectable	No

connection method

number of terminals	50
type of connecting terminal	Screw-type terminal
position / of the terminal	Top
number of terminal levels	1
design of terminal / terminal levels internally linked	No
type of electrical connection / for connecting cable	Plug-in connection
number of poles / at the 1st interface	50; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection	1
type of connectable conductor cross-sections / solid	No
connectable conductor cross-section — for flexible conductor / with core end processing	0.14 ... 1.5 mm²
connectable conductor cross-section — stranded	0.14 ... 1.5 mm²
connectable conductor cross-section — finely stranded / without core end processing	0.14 ... 1.5 mm²
connectable conductor cross-section — finely stranded / with core end processing	0.14 ... 1.5 mm²
number of cables / per connection	1
width of screwdriver blade	3.5 mm

standards, specifications, approvals

design tested acc. to type of protection / EEx e	No
overvoltage category	2
degree of pollution	2

ambient conditions

ambient temperature — during operation	-20 ... +50 °C
ambient temperature — during storage	-20 ... +70

mechanical data

width × height × depth	151 mm × 45 mm × 50 mm
mounting position	any
height / with lowest-profile installation	50 mm
net weight	0.16 kg
color — of the enclosure	green
color — of the light source	without
product component / required / end cover plate	No

further information / internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: system cabling	https://siemens.com/simatic-top-connect
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
marketing text	the terminal strip converter of 50-pole IDC plug to screw terminals for 1-to-1 connection without LED
