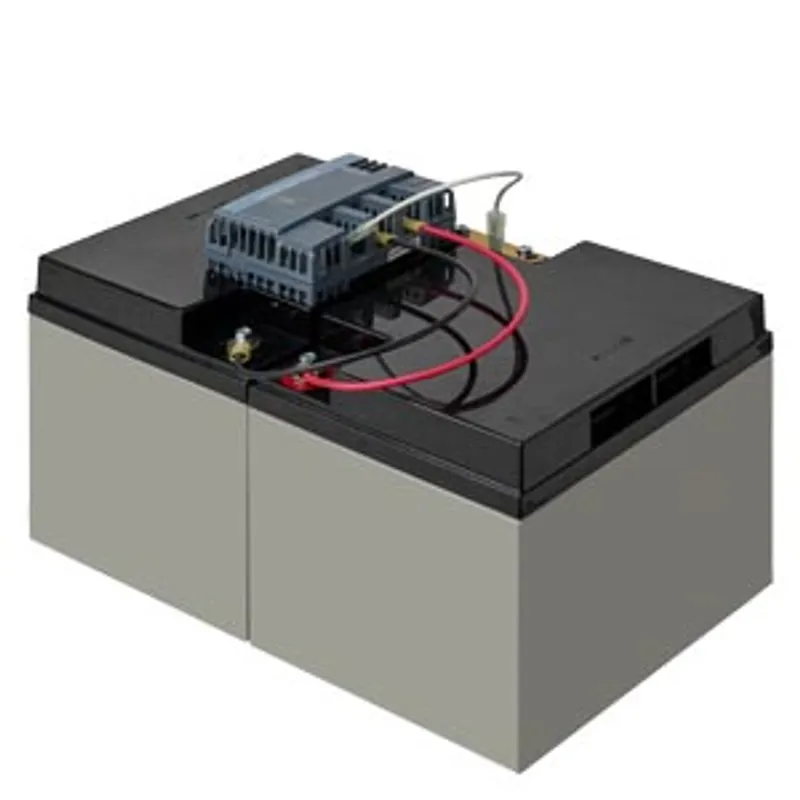

Siemens 6EP4137-0GE00-0AY0

SITOP BAT1600/Battery module/24V/38AH SITOP BAT1600 24 V DC 38 Ah Pb battery module with maintenance- fee…

MPN: 6EP4137-0GE00-0AY0
Category: Power Supplies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP4137-0GE00-0AY0?

SITOP BAT1600/Battery module/24V/38AH SITOP BAT1600 24 V DC 38 Ah Pb battery module with maintenance- fee closed lead-acid battery for SITOP UPS1600

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP4137-0GE00-0AY0
Technical Product Detail Page	https://i.siemens.com/1P6EP4137-0GE00-0AY0
product brand name	SITOP
product type designation	BAT1600
product designation	38 Ah Pb
type of battery	maintenance-free lead-acid batteries
product version	Extension module/battery module

electrical data

end-of-charge voltage at DC — at -10 °C recommended	28 V
end-of-charge voltage at DC — at 0 °C recommended	28 V
end-of-charge voltage at DC — at 10 °C recommended	27.8 V
end-of-charge voltage at DC — at 20 °C recommended	27.3 V
end-of-charge voltage at DC — at 30 °C recommended	26.8 V
end-of-charge voltage at DC — at 40 °C recommended	26.6 V
end-of-charge voltage at DC — at 50 °C recommended	26.3 V

output

battery capacity	38 A·h
output current rated value	40 A
output current in buffering mode maximum	40 A
peak current	120 A; for 30 ms
charging current maximum	9 A
output voltage at DC rated value	24 V

interfaces

communication function

Yes

protection and monitoring

design of short-circuit protection	50A / 32V Maxi flat fuse
design of the overload protection	Valve control
display version for normal operation	Three-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible

safety

operating resource protection class	Class III
protection class IP	IP20

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 61010-1, UL61010-2-201 , CSA C22.2 No. 61010-1, CSA C22.2 NO 61010-2-201), File E143289
certificate of suitability — UKCA marking	Yes
type of certification CB-certificate	Yes

standards, specifications, approvals hazardous environments

certificate of suitability — ATEX

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — Det Norske Veritas (DNV)	in preparation

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	82.936 kg
global warming potential [CO2 eq] — during manufacturing	68.82 kg
global warming potential [CO2 eq] — during operation	1.778 kg
global warming potential [CO2 eq] — after end of life	3.627 kg

ambient conditions

ambient condition	For storage, mounting and operation of batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed.
ambient temperature — during operation	-15 ... +50 °C
ambient temperature — during transport	-30 ... +70 °C
ambient temperature — during storage	-20 ... +40 °C
relative temporary capacity loss at 20 °C in a month typical	3 %

service life

service life of energy storage — typical	capacity falls to 80 % of original capacity (according to EUROBAT)
service life of energy storage — at 20 °C typical	10 a
service life of energy storage — at 30 °C typical	5 a
service life of energy storage — at 40 °C typical	2.5 a
service life of energy storage — at 50 °C typical	1.25 a
note	In addition to the storage temperature, additional factors, such as storage duration and charging status during storage, have a major impact on the potential service life. This means batteries should preferably be stored fully charged for short periods of time in a dry, cool and frost-proof (temperature range 0 to +20 °C) location.

connection method

type of electrical connection	Plug-in terminals with screwed connection
for UPS module	1 screw terminal each for 0.5 ... 16 mm² for + BAT and - BAT
for control circuit and status message	1 screw terminal each for 0.2 ... 2.5 mm²

mechanical data

width × height × depth of the enclosure	394 × 212 × 165 mm
installation width × mounting height	330 mm × 262 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Floor mounting
DIN-rail mounting	No
S7 rail mounting	No
wall mounting	No
net weight	27.9 kg
number of cells	2

accessories

product component included

2x Maxi Fuse 50 A/32 V

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
