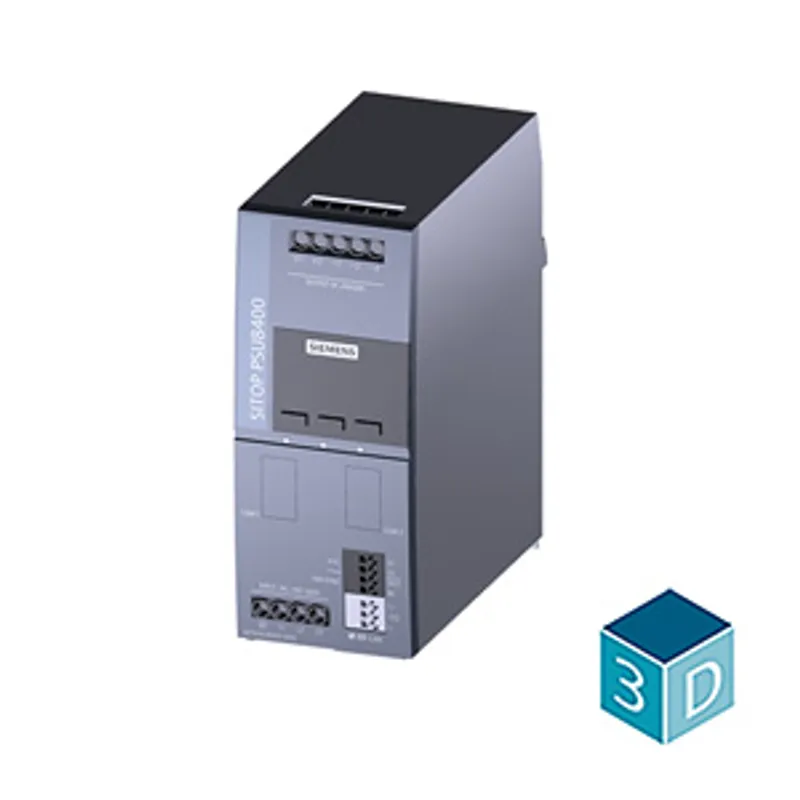

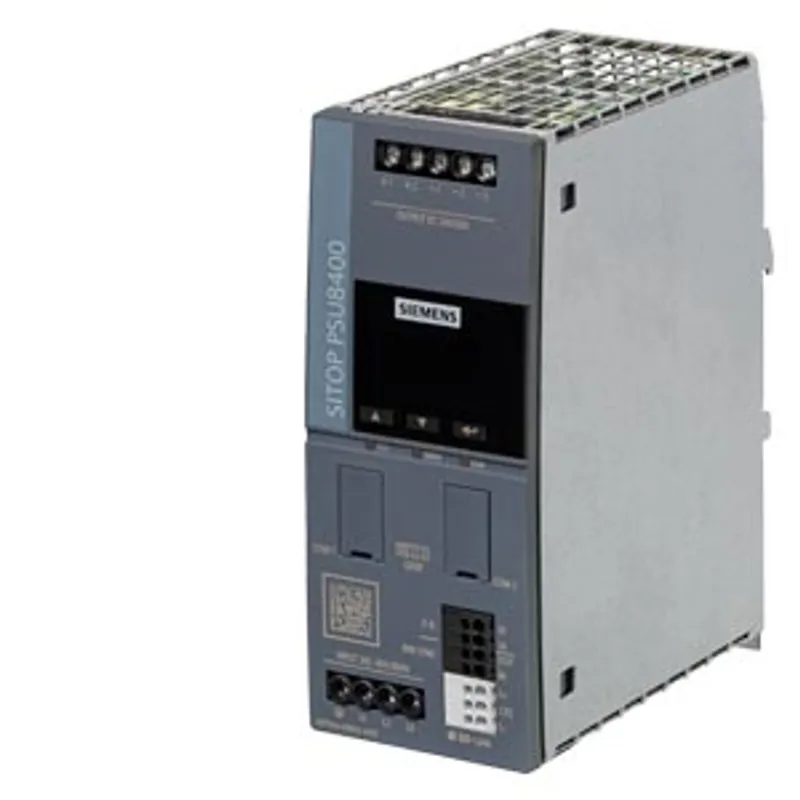

Siemens 6EP3436-8SB00-4AY0
SITOP PSU8400 3AC 20A IOL stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A with IO-Link…
- MPN
- 6EP3436-8SB00-4AY0
- Category
- SITOP PSU8400
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6EP3436-8SB00-4AY0?
SITOP PSU8400 3AC 20A IOL stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A with IO-Link connection
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP3436-8SB00-4AY0 |
| product brand name | SITOP |
| product type designation | PSU8400 |
| product designation | Power supply SITOP PSU8400 |
| type of current supply | 24 V/20 A |
input
| type of the power supply network | 3-phase AC or DC |
| phase number | 3 |
| voltage curve at input | AC/DC |
| supply voltage at AC — minimum rated value | 400 V |
| supply voltage at AC — maximum rated value | 500 V |
| supply voltage at AC — initial value | 323 V |
| supply voltage at AC — full-scale value | 576 V |
| supply voltage at AC | Derating 323 ... 360 and 550 ... 576 V |
| supply voltage at DC | 500 ... 550 V |
| input voltage at DC | 450 ... 600 V |
| supply voltage — at 50 Hz | 400 V |
| supply voltage — at 60 Hz | 500 V |
| line frequency | 50/60 Hz |
| line frequency | 47 ... 63 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 30 ms |
| operating condition of the mains buffering | at Vin = 400 V |
| input current — at rated input voltage 400 V | 0.9 A |
| input current — at rated input voltage 500 V | 0.7 A |
| input current at DC — at rated input voltage 500 V | 1.4 A |
| input current at DC — at rated input voltage 550 V | 1 A |
| current limitation of inrush current at 25 °C maximum | 3 A |
| I2t value maximum | 0.1 A²·s |
| fuse protection type | none |
| fuse protection type in the feeder | required: 3-pole coupled miniature circuit breaker (IEC 898; for UL: UL489-listed/category DIVQ) characteristic C: 4 - 16 A, or circuit breaker (e.g. 3RV2011-1EA10, 3RV2711-1ED10 (UL489)), alternatively slow fuses (for UL: UL248-listed); suitable DC protection must be provided when operating with DC power supply. |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via display and IO-Link interface |
| adjustable output voltage | 22 ... 28 V; Derating > 24 V: max. 480 W power output (576 W to 45°C) |
| relative overall tolerance of the voltage | 3 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.2 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 0.2 % |
| residual ripple — maximum | 20 mV |
| voltage peak — maximum | 100 mV |
| display version for normal operation | display and 3-color LED for operating, fault and communication status |
| type of signal at output | relay contact (NO contact, contact rating DC 30 V/0.1 A) for "24 V O.K."; configurable via IO-Link |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 0.5 s |
| voltage increase time of the output voltage — typical | 50 ms |
| voltage increase time of the output voltage — maximum | 50 ms |
| output current — rated value | 20 A |
| output current — per output | 20 A |
| output current — at output 1 rated value | 20 A |
| output current — rated range | 0 ... 20 A; 24 A up to 45 °C; +60 ... +70 °C: derating 3.75%/K |
| supplied active power typical | 480 W |
| short-term overload current — at short-circuit during operation typical | 60 A |
| duration of overloading capability for excess current — at short-circuit during operation | 25 ms |
| constant overload current — at short-circuit during operation typical | 24 A |
| bridging of equipment | Yes; active load distribution via control contact or inclined output characteristic can be selected via display and IO-Link |
| number of parallel-switched equipment resources for increasing the power | 2 |
efficiency
| efficiency in percent | 96 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 20 W |
| power loss [W] — during no-load operation maximum | 3.3 W |
closed-loop control
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 1 % |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3 % |
| setting time — maximum | 3 ms |
protection and monitoring
| design of the overvoltage protection | max. 32 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | constant current characteristic or latching shutdown (selectable via display and IO-Link) |
| response value current limitation | 15 ... 24.5 A |
| design of the current limitation | adjustable via display and IO-Link |
| overcurrent overload capability — in normal operation | 150 % IaRated up to 5 s/min (configurable via display and IO-Link) |
| enduring short circuit current RMS value — maximum | 28 A |
| enduring short circuit current RMS value — typical | 24 A |
| display version for overload and short circuit | display and 3-color LED for operating status |
| design of the reset device/resetting mechanism | via display and IO-Link |
interfaces
| product function communication function | Yes |
| design of the interface | IO-Link |
| protocol is supported — IO-Link protocol | Yes |
| IO-Link transfer rate | COM3 (230.4 kBaud) |
| number of IO-Link ports | 1 |
| point-to-point cycle time between master and IO-Link device minimum | 10 ms |
| data volume of the address range of the outputs with cyclical transfer for all IO-Link ports maximum | 3 byte |
| data volume of the address range of the inputs with cyclical transfer for all IO-Link ports maximum | 13 byte |
| protocol between master and IO-Link device Version 1.1 | Yes |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current — maximum | 3.5 mA |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 55022 Class B |
| standard — for mains harmonics limitation | EN 61000-3-2 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability — UKCA marking | Yes |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability — NEC Class 2 | No |
| certificate of suitability — SEMI F47 | Yes |
| type of certification — CB-certificate | Yes |
| MTBF at 40 °C | 440 000 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — UKEX | No |
| certificate of suitability — CCC for hazardous zone according to GB standard | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | No |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 541.3 kg |
| global warming potential [CO2 eq] — during manufacturing | 33.8 kg |
| global warming potential [CO2 eq] — during operation | 506.8 kg |
| global warming potential [CO2 eq] — after end of life | 0.3 kg |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |

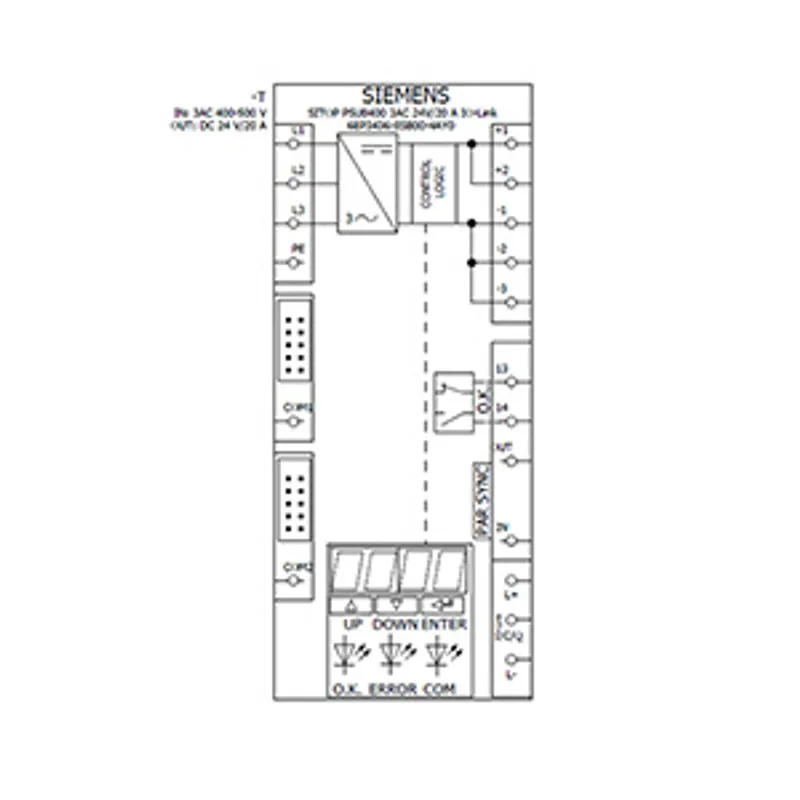

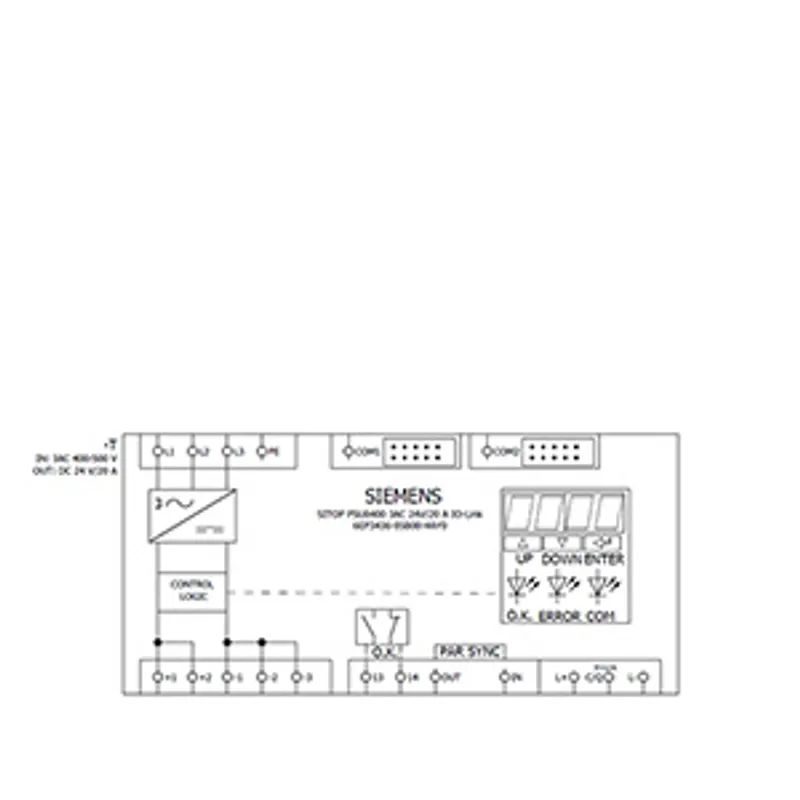

connection method
| type of electrical connection | screw-type terminals and push-in terminals |
| type of electrical connection — at input | L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded |
| type of electrical connection — at output | +1, +2, -1, -2, -3: 1 screw terminal each for 0.5 ... 6 mm² solid/finely stranded (4 mm² with ferrule) |
| type of electrical connection — for auxiliary contacts | PAR SYNC OUT/IN: 1 push-in terminal each for 0.2 ... 1.5 mm² |
| type of electrical connection — for signaling contact | 13, 14: 1 push-in terminal each for 0.2 ... 1.5 mm² |
| removable terminal at input | No |
| removable terminal at output | No |
| design of the interface for communication | L+, C/Q, L- (IO-Link): 1 push-in terminal each for 0.2 ... 1.5 mm² |

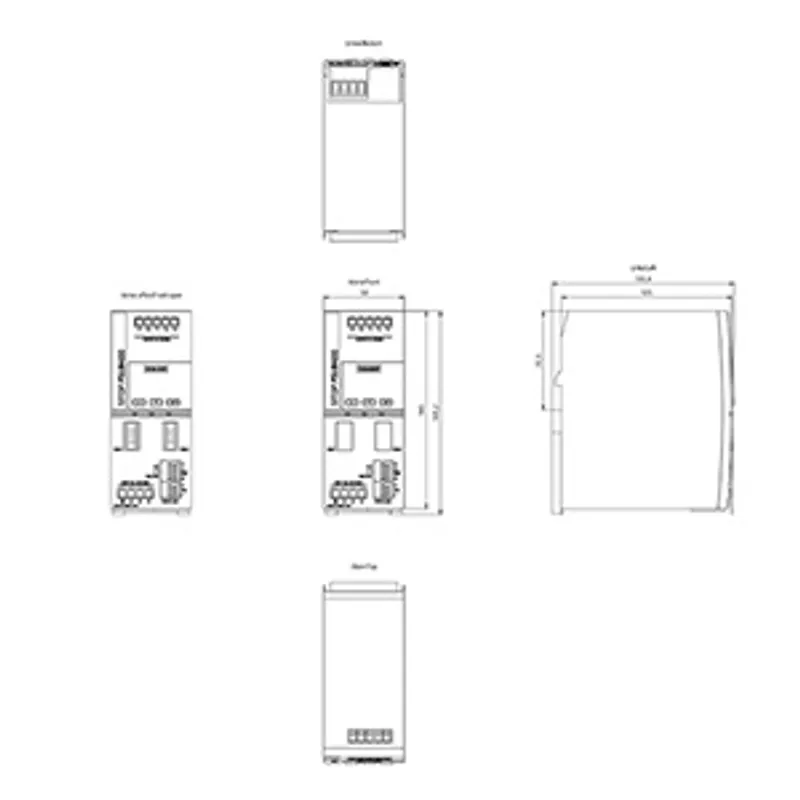

mechanical data
| width × height × depth of the enclosure | 59 × 145 × 125 mm |
| installation width × mounting height | 59 mm × 225 mm |
| required spacing — top | 40 mm |
| required spacing — bottom | 40 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| fastening method — DIN-rail mounting | Yes |
| fastening method — S7 rail mounting | No |
| fastening method — wall mounting | No |
| housing can be lined up | Yes |
| net weight | 1.15 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
| identification link | Yes; acc. to IEC 61406-1:2022 |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 33.8 kg |
| global warming potential [CO2 eq] / during operation | 506.8 kg |
| global warming potential [CO2 eq] / after end of life | 0.3 kg |
| global warming potential [CO2 eq] / total | 541.3 kg |
