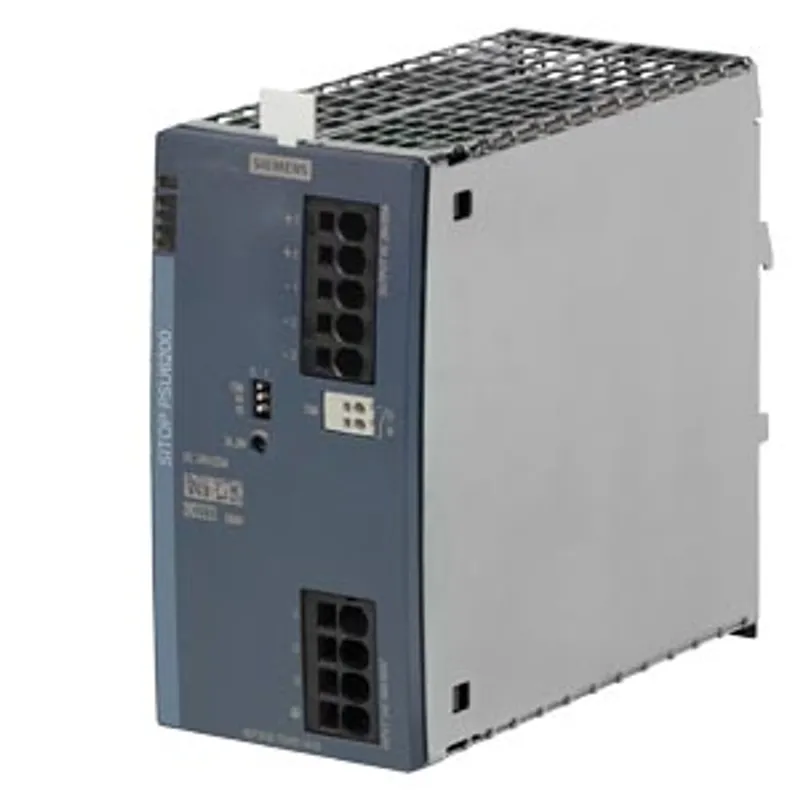

Siemens 6EP3436-7SC00-3AX0

Q: When can 6EP3436-7SC00-3AX0 be shipped?

6EP3436-7SC00-3AX0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6EP3436-7SC00-3AX0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6EP3436-7SC00-3AX0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6EP3436-7SC00-3AX0, subject to availability and destination.

SITOP PSU6200/3AC/24VDC/20A/EX SITOP PSU6200 Ex 24 V/20 A stabilized power supply input: 400 - 500 V AC…

MPN: 6EP3436-7SC00-3AX0
Category: Power Supplies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP3436-7SC00-3AX0?

SITOP PSU6200/3AC/24VDC/20A/EX SITOP PSU6200 Ex 24 V/20 A stabilized power supply input: 400 - 500 V AC output: 24 V DC/20 A with diagnostic interface with painted printed-circuit boards

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP3436-7SC00-3AX0
Technical Product Detail Page	https://i.siemens.com/1P6EP3436-7SC00-3AX0
product brand name	SITOP
product type designation	PSU6200
product designation	Power supply SITOP PSU6200
type of current supply	24 V/20 A

input

type of the power supply network	3-phase AC or DC
phase number	3
voltage curve at input	AC/DC
supply voltage at AC — minimum rated value	400 V
supply voltage at AC — maximum rated value	500 V
supply voltage at AC — initial value	323 V
supply voltage at AC — full-scale value	576 V
supply voltage at DC	500 ... 550 V
input voltage at DC	450 ... 600 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
buffering time for rated value of the output current in the event of power failure minimum	25 ms
operating condition of the mains buffering	at Vin = 400 V
input current — at rated input voltage 400 V	0.77 A
input current — at rated input voltage 500 V	0.62 A
current limitation of inrush current at 25 °C maximum	17 A
fuse protection type in the feeder	three-poled coupled circuit breaker from 4 A characteristic C to 16 A characteristic C or circuit breaker 3RV2011-1EA10 (setting 4 A) or 3RV2711-1ED10 (UL 489)

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
number of outputs	1
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	24 V
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	24 ... 28 V; max. 480 W (576 W up to 45°C)
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.2 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.1 %
residual ripple — maximum	30 mV
residual ripple — typical	20 mV
voltage peak — maximum	30 mV
voltage peak — typical	20 mV
display version for normal operation	Green LED for 24 V OK
type of signal at output	Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface
behavior of the output voltage when switching on	Overshoot of Vout < 2 %
response delay maximum	0.5 s
voltage increase time of the output voltage — typical	100 ms
output current — rated value	20 A
output current — rated range	0 ... 20 A; 24 A up to +45°C; +60 ... +70 °C: Derating 3%/K
supplied active power typical	480 W
short-term overload current — on short-circuiting during the start-up typical	24 A
short-term overload current — at short-circuit during operation typical	24 A
parallel switching of outputs	can be set with DIP switch
bridging of equipment	Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	95.9 %
power loss [W] — at rated output voltage for rated value of the output current typical	23 W
power loss [W] — during no-load operation maximum	2.9 W

closed-loop control

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical	3 %
setting time — load step 10 to 90% typical	2 ms
setting time — load step 90 to 10% typical	2 ms
setting time — maximum	3 ms

protection and monitoring

design of the overvoltage protection	< 32 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Shutdown and periodic restart attempts
typical	24 A
overcurrent overload capability — in normal operation	overload capability 150 % Iout rated up to 5 s/min

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current — maximum	3.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — UKCA marking	Yes
certificate of suitability — EAC approval	Yes
certificate of suitability — Regulatory Compliance Mark (RCM)	Yes
certificate of suitability — NEC Class 2	No
certificate of suitability — SEMI F47	Yes
type of certification — BIS	Yes; R-41188271
type of certification — CB-certificate	Yes

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	Yes; IECEx Ex ec IIC T4 Gc
certificate of suitability — ATEX	Yes; ATEX (EX) II 3G Ex ec IIC T4 Gc
certificate of suitability — ULhazloc approval	Yes
certificate of suitability — UKEX	Yes
certificate of suitability — CCC for hazardous zone according to GB standard	Yes
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	No

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	621.6 kg
global warming potential [CO2 eq] — during manufacturing	38.5 kg
global warming potential [CO2 eq] — during operation	582 kg
global warming potential [CO2 eq] — after end of life	0.63 kg

ambient conditions

ambient temperature — during operation	-30 ... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	push-in terminals
at input	L1, L2, L3, PE: push-in for 0.5 ... 10 mm²
at output	+1, +2, -1, -2, -3: push-in for 0.5 ... 6 mm²
for auxiliary contacts	13, 14 (alarm signal): 1 push-in terminal each for 0.2 ... 1.5 mm²

mechanical data

width × height × depth of the enclosure	70 × 135 × 155 mm
installation width × mounting height	70 mm × 225 mm
required spacing — top	45 mm
required spacing — bottom	45 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	1.5 kg

accessories

electrical accessories	Buffer module, redundancy module
mechanical accessories	Identification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com
identification link	Yes; acc. to IEC 61406-1:2022

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP3436-7SC00-3AX0PDF
