What is the Siemens 6EP3343-0SA00-0AY0?

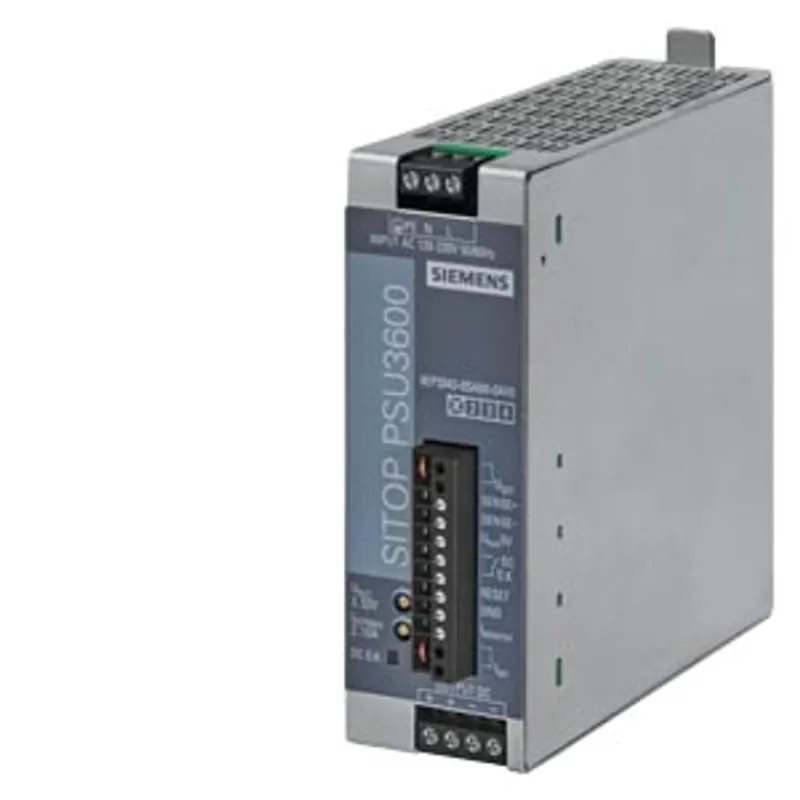

SITOP PSU3600 FLEXI/1AC/3-52VDC/10A/120W SITOP PSU3600 flexi Stabilized power supply Input: 120-230 V AC Output: 3-52 V DC/10 A, 120 W

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP3343-0SA00-0AY0
Technical Product Detail Page	https://i.siemens.com/1P6EP3343-0SA00-0AY0
product brand name	SITOP
product type designation	PSU3600
product designation	Power supply SITOP PSU3600 flexi
type of current supply	3-52 V/10 A, 120 W

input

type of the power supply network	1-phase AC or DC
phase number	1
voltage curve at input	AC/DC
supply voltage at AC — minimum rated value	120 V
supply voltage at AC — maximum rated value	230 V
supply voltage at AC — initial value	85 V
supply voltage at AC — full-scale value	264 V
supply voltage at AC	Derating at < 110 V AC/DC: output power max. 100 W
supply voltage at DC	110 ... 220 V
input voltage at DC	88 ... 250 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
buffering time for rated value of the output current in the event of power failure minimum	80 ms
operating condition of the mains buffering	With Pa = 120 W and Ue = 230 V AC
input current — at rated input voltage 110 V	1.3 A
input current — at rated input voltage 120 V	2.6 A
input current — at rated input voltage 220 V	0.7 A
input current — at rated input voltage 230 V	1.3 A
current limitation of inrush current at 25 °C maximum	35 A
I2t value maximum	1 A²·s
fuse protection type	T 3.15 A (not accessible)
fuse protection type in the feeder	Recommended miniature circuit breaker: 6-10 A characteristic C

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
formula for output voltage	3-52 V DC
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	3 ... 52 V
output voltage adjustable	Yes; via potentiometer (adjustment range 3 ... 52 V) or analog control voltage signal 0 to 2.5 V (adjustment range 0 ... 52 V)
adjustable output voltage	0 ... 52 V
relative overall tolerance of the voltage	1 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	1 %
voltage compensation per sense line	0.5 V
residual ripple — maximum	50 mV
voltage peak — maximum	100 mV
display version for normal operation	Two-color LED: green for 24 V o.k., red for overload
type of signal at output	DC OK via relay contact, current monitor signal (0 ... 2.5 V correspond to 0 ... 10 A)
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	0.5 s
voltage increase time of the output voltage — typical	20 ms
output current — rated value	10 A
output current — rated range	0 ... 10 A; Output power max. 120 W
supplied active power typical	120 W
constant overload current — on short-circuiting during the start-up typical	12 A
constant overload current — at short-circuit during operation typical	12 A
bridging of equipment	Yes
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	88 %
power loss [W] — at rated output voltage for rated value of the output current typical	16 W
power loss [W] — during no-load operation maximum	3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.3 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	5 %
setting time — maximum	0.2 ms

protection and monitoring

design of the overvoltage protection	< 60 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Electronic current limiting (2 ... 10 A) in the range 3 ... 12 V or power limiting (120 W) in the range 12 ... 52 V
response value current limitation	2 ... 10 A
design of the current limitation	Can be set with potentiometer or analog control voltage signal 0.5 ... 2.5 V
enduring short circuit current RMS value — maximum	12 A

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current — maximum	3.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — EAC approval	Yes
certificate of suitability — Regulatory Compliance Mark (RCM)	Yes
certificate of suitability — NEC Class 2	No
type of certification — CB-certificate	Yes
MTBF at 40 °C	1 200 000 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	No
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No

ambient conditions

ambient temperature — during operation	-25 ... +70 °C; Derating > 60°C: 2%/°K
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
at output	+, -: 2 screw terminals each for 0.5 ... 2.5 mm² single-core/finely stranded
for auxiliary contacts	Alarm signals, control inputs: screw-type terminals for 0.14 ... 1.5 mm² single-core/finely stranded

mechanical data

width × height × depth of the enclosure	42 × 125 × 135 mm
installation width × mounting height	42 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	0.55 kg

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information
