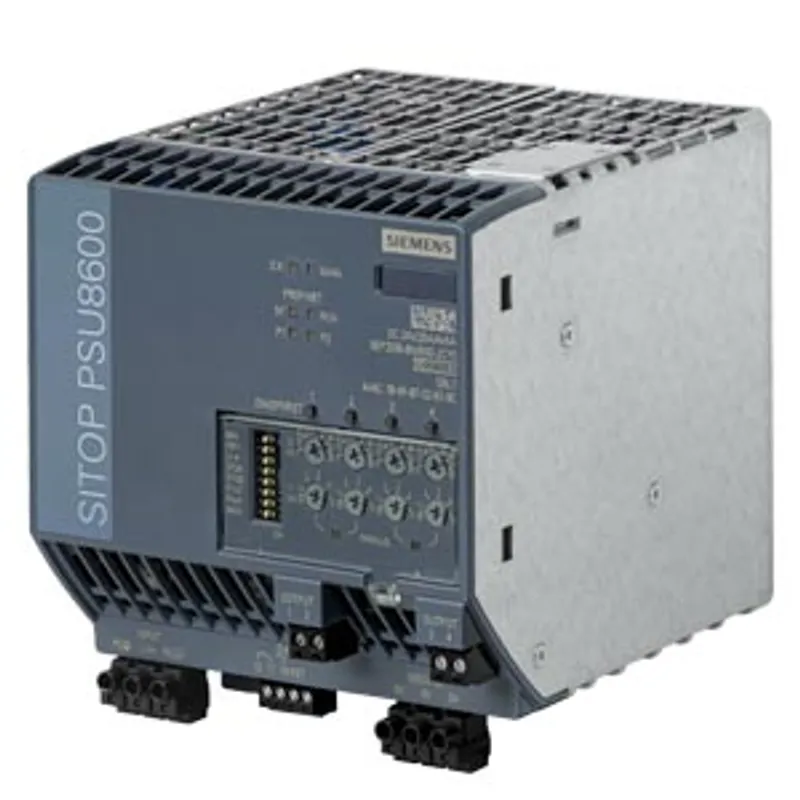

Siemens 6EP3336-8MB00-2CY0

SITOP PSU8600/1AC/24VDC/20A/4X5A PN SITOP PSU8600 1AC 20 A/4x5 A PN stabilized power supply input: 100-240 V…

MPN: 6EP3336-8MB00-2CY0
Category: Power Supplies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP3336-8MB00-2CY0?

SITOP PSU8600/1AC/24VDC/20A/4X5A PN SITOP PSU8600 1AC 20 A/4x5 A PN stabilized power supply input: 100-240 V AC output: 24 V DC/20 A/4x 5 A with PN/IE connection web server integrated OPC UA server integrated

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP3336-8MB00-2CY0
Technical Product Detail Page	https://i.siemens.com/1P6EP3336-8MB00-2CY0
product brand name	SITOP
product type designation	PSU8600
product designation	Power supply SITOP PSU8600
type of current supply	24 V/20 A/4x 5 A

input

type of the power supply network	1-phase and 2-phase AC or DC
phase number	1
voltage curve at input	AC/DC
supply voltage at AC — minimum rated value	100 V
supply voltage at AC — maximum rated value	240 V
supply voltage at AC — initial value	85 V
supply voltage at AC — full-scale value	275 V
supply voltage at DC	110 ... 220 V
input voltage at DC	93 ... 275 V
supply voltage — at 50 Hz	230 V
supply voltage — at 60 Hz	120 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
buffering time for rated value of the output current in the event of power failure minimum	20 ms
operating condition of the mains buffering	at Vin = 100 V; Prioritized supply of Output 1 in case of power failure selectable via DIP switch
input current — at rated input voltage 100 V	5.4 A
input current — at rated input voltage 110 V	4.8 A
input current — at rated input voltage 120 V	4.5 A
input current — at rated input voltage 220 V	2.4 A
input current — at rated input voltage 230 V	2.5 A
input current — at rated input voltage 240 V	2.4 A
current limitation of inrush current at 25 °C maximum	15 A
I2t value maximum	4.33 A²·s
fuse protection type	internal
fuse protection type in the feeder	required: circuit breaker (for UL: UL489-listed/DIVQ) characteristic C, 10-32 A, alternatively slow-response fuses (for UL: UL248-listed)

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
number of outputs	4
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 2 at DC rated value	24 V
output voltage — at output 3 at DC rated value	24 V
output voltage — at output 4 at DC rated value	24 V
output voltage — at output 1 at DC	5 ... 24 V
output voltage — at output 2 at DC	5 ... 24
output voltage — at output 3 at DC	5 ... 24
output voltage — at output 4 at DC	5 ... 24
output voltage adjustable	Yes; via potentiometer or IE/PN interface
adjustable output voltage	4 ... 28 V; Derating > 24 V: 4%/V; max. 120 W per output, max. 480 W overall system
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.2 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.1 %
residual ripple — maximum	100 mV
voltage peak — maximum	200 mV
display version for normal operation	3-color LED for operating state device; LED for operating mode manual/remote; 4 LEDs for communication PROFINET; 3-color LED per output for operating state output; LED green for parallel operation Output 1 and 2 / 3 and 4
type of signal at output	Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK"
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	1 s; Without on-delay of the outputs
type of outputs connection	simultaneous switch-on of all outputs after device power-up or delay time of 25 ms, 100 ms, or "load-optimized" for sequential switch-on of the outputs via DIP switch configurable
voltage increase time of the output voltage — maximum	500 ms
output current — rated value	20 A
output current — per output	5 A
output current — at output 1 rated value	5 A
output current — at output 2 rated value	5 A
output current — at output 3 rated value	5 A
output current — at output 4 rated value	5 A
output current — rated range	0 ... 20 A
supplied active power typical	480 W
parallel switching of outputs	Yes; Parallel circuit Output 1 with 2 or Output 3 with 4 can be selected via DIP switch
bridging of equipment	No

efficiency

efficiency in percent	92 %
power loss [W] — at rated output voltage for rated value of the output current typical	39 W
power loss [W] — during no-load operation maximum	14 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	0.4 %
setting time — maximum	10 ms

protection and monitoring

design of the overvoltage protection	max. 35 V (max. 500 ms)
property of the output short-circuit proof	Yes
design of short-circuit protection	electronic overload cut-off; optionally constant current operation can be selected for Output 4 via DIP switches
adjustable current response value current of the current-dependent overload release	0.5 ... 5 A
type of response value setting	via potentiometer or IE/PN interface
switching characteristic — of the excess current	Ia >1.0...<1.5 x Ia threshold for 5 s permissible; Ia limit (= 1.5 x Ia threshold) for 200 ms permissible
switching characteristic — of the current limitation	Ia limit (= 1.5 x Ia threshold) permissible for 5 s, afterwards Ia threshold continuous
overcurrent overload capability — in normal operation	Total system overloadable 150% Ia rated to 5 s/min
display version for overload and short circuit	3-color LED for operating state device; 3-color LED per output for operating state output
design of the reset device/resetting mechanism	via sensor per output or IE/PN interface
remote reset function	non-isolated 24 V input (signal level "high" at > 15 V)

interfaces

product function communication function	Yes
design of the interface	Ethernet/PROFINET
design of the interface PROFINET protocol	Yes
protocol is supported — OPC UA	Yes

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current — maximum	3.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — EAC approval	Yes
certificate of suitability — NEC Class 2	No
certificate of suitability — SEMI F47	Yes
type of certification — BIS	Yes; R-41188271
type of certification — CB-certificate	Yes
MTBF at 40 °C	186 700 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	1 051 kg
global warming potential [CO2 eq] — during manufacturing	62.2 kg
global warming potential [CO2 eq] — during operation	987.6 kg
global warming potential [CO2 eq] — after end of life	0.52 kg

ambient conditions

ambient temperature — during operation	-25 ... +60 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	Plug-in terminals with screwed connection
at input	L1/+, N/L2/-, PE: Plug-in terminal with 1 screwed connection each for 0.2 ... 4 mm² single-wire / fine stranded
at output	1, 2, 3, 4: Two plug-in terminals (1, 2 and 3, 4) with 2 screwed connections each for 0.2 ... 2.5 mm²; 0 V: Plug-in terminal with 3 screwed connections for 0.2 ... 4 mm²
for auxiliary contacts	RST (Reset): Plug-in terminal (together with alarm signal) with 1 screwed connection for 0.2 ... 1.5 mm²
for signaling contact	11, 12, 14 (alarm signal): Plug-in terminal (together with Reset) with 1 screwed connection each for 0.2 ... 1.5 mm²
removable terminal at input	Yes
removable terminal at output	Yes
design of the interface for communication	PROFINET/Ethernet: two RJ45 sockets (2-port switch)
suitability for interaction modular system	Yes

mechanical data

width × height × depth of the enclosure	125 × 125 × 150 mm
installation width × mounting height	125 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	2.6 kg

accessories

electrical accessories	Expansion modules CNX8600, buffer modules BUF8600, module UPS8600
mechanical accessories	Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information
