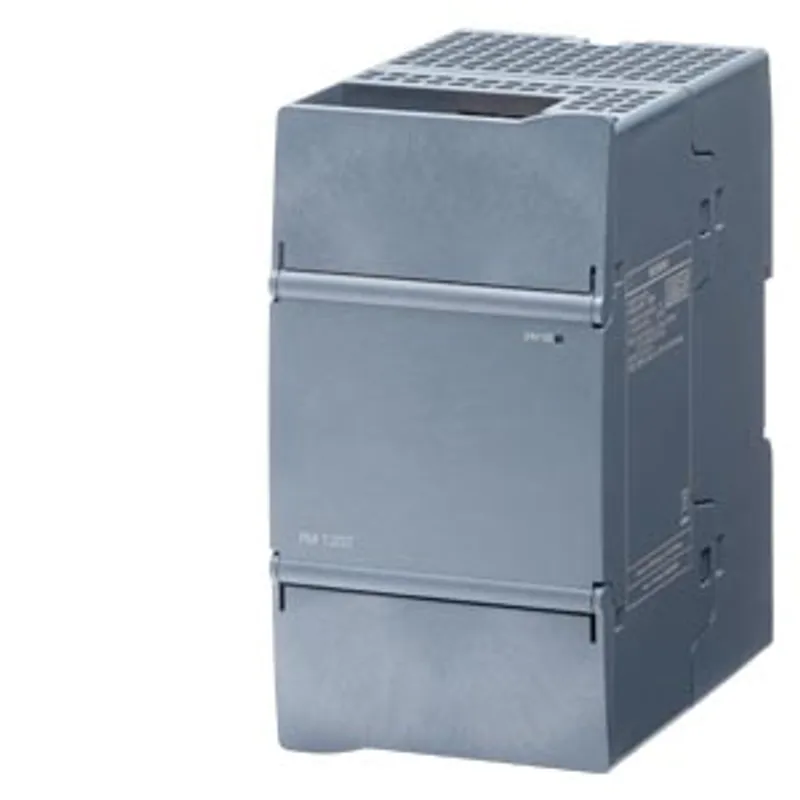

Siemens 6EP3333-4SB00-3AX0
SIMATIC PM1207/1AC/24VDC/5A SIMATIC S7-1200 power module PM 1207 24 V/5 A stabilized power supply input: 120…
- MPN
- 6EP3333-4SB00-3AX0
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP3333-4SB00-3AX0?
SIMATIC PM1207/1AC/24VDC/5A SIMATIC S7-1200 power module PM 1207 24 V/5 A stabilized power supply input: 120 - 240 V AC/DC output: 24 V DC/5 A with diagnostic interface
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP3333-4SB00-3AX0 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP3333-4SB00-3AX0 |
| product brand name | SIMATIC |
| product type designation | PM 1207 |
| product designation | S7-1200 Power Module |
| type of current supply | 24 V/5 A |
input
| type of the power supply network | 1-phase AC or DC |
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC — minimum rated value | 120 V |
| supply voltage at AC — maximum rated value | 240 V |
| supply voltage at AC — initial value | 85 V |
| supply voltage at AC — full-scale value | 264 V |
| supply voltage at DC | 120 ... 240 V |
| input voltage at DC | 99 ... 275 V |
| supply voltage — at 50 Hz | 240 V |
| supply voltage — at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| line frequency | 47 ... 63 Hz |
| wide range input | Yes |
| overvoltage overload capability | 300 V AC for 30 s |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 120/240 V |
| input current — at rated input voltage 120 V | 1.9 A |
| input current — at rated input voltage 240 V | 1.1 A |
| input current — at rated input voltage 120 V AC | 1.8 A |
| input current — at rated input voltage 120 V DC | 1.1 A |
| input current — at rated input voltage 240 V AC | 1 A |
| input current — at rated input voltage 240 V DC | 0.6 A |
| current limitation of inrush current at 25 °C maximum | 45 A |
| I2t value maximum | 1.8 A²·s |
| fuse protection type | internal |
| fuse protection type in the feeder | recommended miniature circuit breaker: 16 A characteristic B/C for UL489-listed/Cat. Div. Q |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 24 V |
| output voltage adjustable | No |
| relative overall tolerance of the voltage | 1.5 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.1 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 0.2 % |
| residual ripple — maximum | 150 mV |
| voltage peak — maximum | 240 mV |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | Overshoot of Vout < 1 % |
| response delay maximum | 2 s |
| voltage increase time of the output voltage — typical | 220 ms |
| output current — rated value | 5 A |
| output current — rated range | 0 ... 5 A; 6 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 120 W |
| short-term overload current — on short-circuiting during the start-up typical | 6 A |
| short-term overload current — at short-circuit during operation typical | 6 A |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
efficiency
| efficiency in percent | 88 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 15 W |
| power loss [W] — during no-load operation maximum | 3 W |
closed-loop control
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 1.5 % |
| setting time — load step 10 to 90% typical | 1 ms |
| setting time — load step 90 to 10% typical | 1 ms |
| setting time — maximum | 1 ms |
protection and monitoring
| design of the overvoltage protection | < 33 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| response value current limitation | 5.5 A |
interfaces
| product function communication function | Yes |
| design of the interface | unidirectional, can only send data to the higher-level control and analysis system |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current — maximum | 3.5 mA |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 55032 |
| standard — for mains harmonics limitation | EN 61000-3-2 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-listed (UL 61010, CSA C22.2 No. 107.1), File E143289 |
| certificate of suitability — UKCA marking | Yes |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| type of certification — CB-certificate | Yes |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ULhazloc approval | No |
standards, specifications, approvals marine classification
| shipbuilding approval | Yes |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 419.2 kg |
| global warming potential [CO2 eq] — during manufacturing | 8.5 kg |
| global warming potential [CO2 eq] — during operation | 410.3 kg |
| global warming potential [CO2 eq] — after end of life | 0.31 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
ambient conditions
| ambient temperature — during operation | -25 ... +70 °C; with natural convection |
| ambient temperature — in horizontal mounting position during operation | -25 ... +70 °C |
| ambient temperature — in vertical mounting position during operation | -25 ... +40 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | push-in terminal block can be removed |
| at input | L, N, PE: 1 push-in terminal can be removed as terminal block for 0.5 ... 2.5 mm² |
| at output | L+, M: 2 push-in terminals can be removed as terminal block for 0.5 ... 2.5 mm² |
| removable terminal at input | Yes |
| removable terminal at output | Yes |
| design of the interface for communication | 13, 14 (contacts): 1 push-in terminal can be removed as terminal block for 0.2 ... 1.5 mm² |
mechanical data
| width × height × depth of the enclosure | 70 × 125 × 100 mm |
| installation width × mounting height | 70 mm × 175 mm |
| required spacing — top | 25 mm |
| required spacing — bottom | 25 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15, wall mounting |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | Yes |
| housing can be lined up | Yes |
| net weight | 0.45 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
| identification link | Yes; acc. to IEC 61406-1:2022 |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
