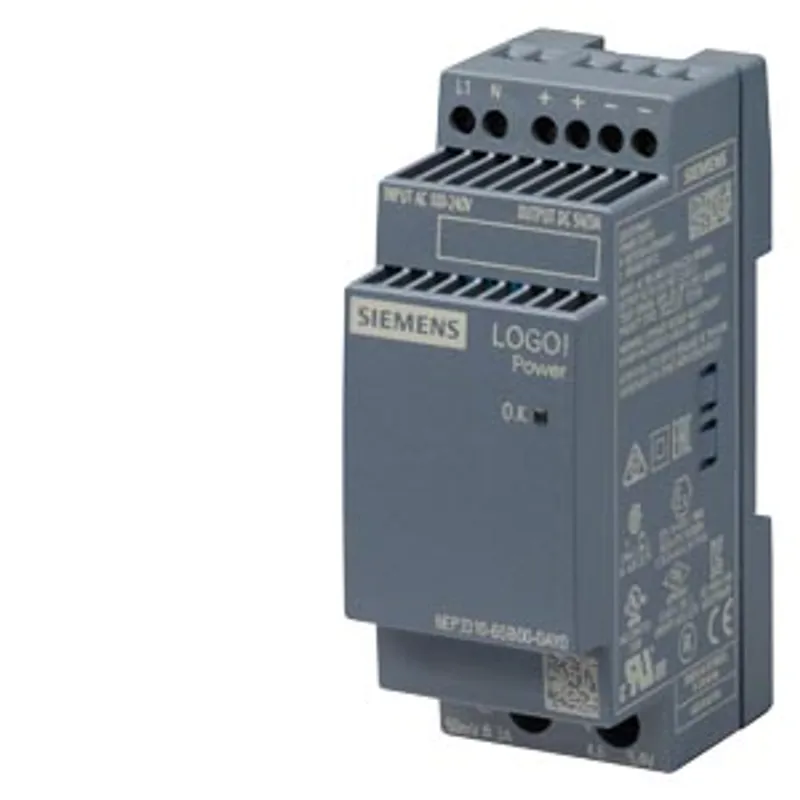

Siemens 6EP3310-6SB00-0AY0

Q: When can 6EP3310-6SB00-0AY0 be shipped?

6EP3310-6SB00-0AY0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6EP3310-6SB00-0AY0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6EP3310-6SB00-0AY0 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6EP3310-6SB00-0AY0, subject to availability and destination.

LOGO!Power/1AC/5VDC/3A LOGO!POWER 5 V / 3 A stabilized power supply input: 100-240 V AC output: 5 V DC / 3 A

MPN: 6EP3310-6SB00-0AY0
Category: Power Supplies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP3310-6SB00-0AY0?

LOGO!Power/1AC/5VDC/3A LOGO!POWER 5 V / 3 A stabilized power supply input: 100-240 V AC output: 5 V DC / 3 A

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP3310-6SB00-0AY0
Technical Product Detail Page	https://i.siemens.com/1P6EP3310-6SB00-0AY0
product brand name	LOGO!Power
product type designation	LOGO!Power
product designation	Power supply LOGO!Power
type of current supply	5 V/3 A

input

type of the power supply network	1-phase AC or DC
phase number	1
voltage curve at input	AC/DC
supply voltage at AC — minimum rated value	100 V
supply voltage at AC — maximum rated value	240 V
supply voltage at AC — initial value	85 V
supply voltage at AC — full-scale value	264 V
input voltage at DC	110 ... 300 V
supply voltage — at 50 Hz	240 V
supply voltage — at 60 Hz	100 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
overvoltage overload capability	300 V AC for 1 s
buffering time for rated value of the output current in the event of power failure minimum	40 ms
operating condition of the mains buffering	at Vin = 187 V
input current — at rated input voltage 120 V	0.36 A
input current — at rated input voltage 230 V	0.22 A
current limitation of inrush current at 25 °C maximum	26 A
I2t value maximum	0.8 A²·s
fuse protection type	internal
fuse protection type in the feeder	Recommended miniature circuit breaker: from 6 A characteristic B or from 2 A characteristic C

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	5 V
output voltage — at output 1 at DC rated value	5 V
output voltage — at output 1 at DC	5 V
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	4.6 ... 5.4 V
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.1 %
residual ripple — maximum	100 mV
residual ripple — typical	30 mV
voltage peak — maximum	100 mV
voltage peak — typical	50 mV
display version for normal operation	Green LED for output voltage OK
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	0.5 s
voltage increase time of the output voltage — typical	100 ms
output current — rated value	3 A
output current — rated range	0 ... 3 A; +55 ... +70 °C: Derating 2%/K
supplied active power typical	15 W
bridging of equipment	Yes
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	76 %
power loss [W] — at rated output voltage for rated value of the output current typical	4.7 W
power loss [W] — during no-load operation maximum	0.3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.2 %
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical	5 %
setting time — load step 10 to 90% typical	1 ms
setting time — load step 90 to 10% typical	1 ms

protection and monitoring

design of the overvoltage protection	< 60 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Constant current characteristic
typical	3.8 A
overcurrent overload capability — when switching on	150% Iout rated typ. 200 ms
overcurrent overload capability — in normal operation	overload capability 150% Iout rated typ. 200 ms
enduring short circuit current RMS value — maximum	3.8 A
measuring point for output current	Yes; 50 mV =^ 3 A

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class II (without protective conductor)
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	not applicable
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)
certificate of suitability — EAC approval	Yes
certificate of suitability — NEC Class 2	Yes; according to UL1310, File E151273
certificate of suitability — SEMI F47	Yes
type of certification — CB-certificate	Yes
MTBF at 40 °C	2 931 709 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — French marine classification society (BV)	Yes
Marine classification association — Det Norske Veritas (DNV)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	131 kg
global warming potential [CO2 eq] — during manufacturing	2.3 kg
global warming potential [CO2 eq] — during operation	128.6 kg
global warming potential [CO2 eq] — after end of life	0.08 kg
Siemens eco profile (SEP)	Siemens EcoTech

ambient conditions

ambient temperature — during operation	-25 ... +70 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded
at output	+, -: 1 screw terminal each for 0.5 ... 2.5 mm²
for auxiliary contacts	-

mechanical data

width × height × depth of the enclosure	36 × 90 × 53 mm
installation width × mounting height	36 mm × 130 mm
required spacing — top	20 mm
required spacing — bottom	20 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	Yes
housing can be lined up	Yes
net weight	0.12 kg

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP3310-6SB00-0AY0PDF
