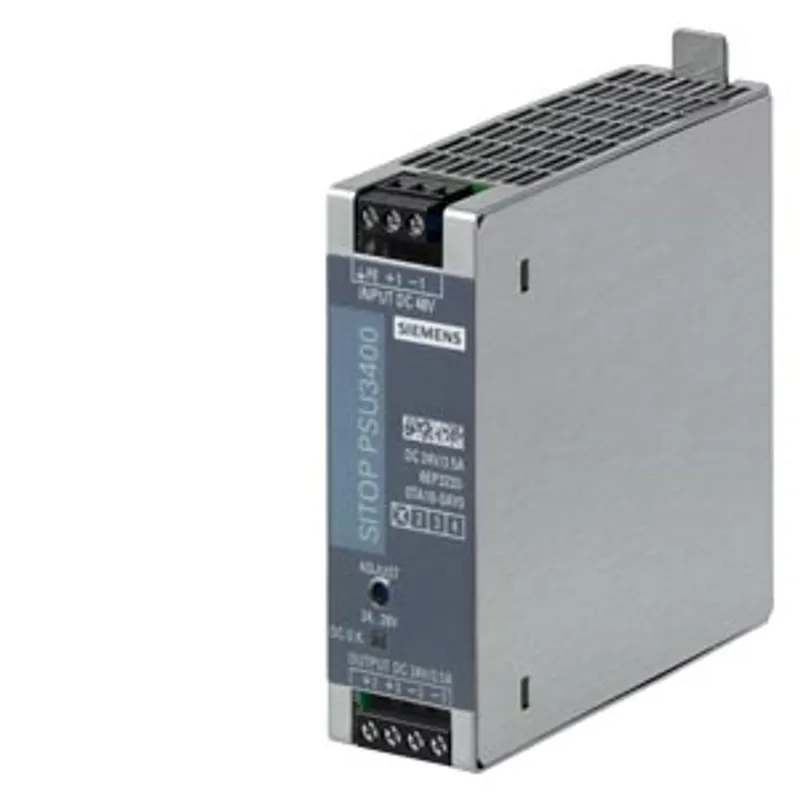

Siemens 6EP3233-0TA10-0AY0
SITOP PSU3400/DC/DC/48V/24V/3.5A SITOP PSU3400 24 V/3.5 A Stabilized power supply Input: 48 V DC (28…60 V)…
- MPN
- 6EP3233-0TA10-0AY0
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP3233-0TA10-0AY0?
SITOP PSU3400/DC/DC/48V/24V/3.5A SITOP PSU3400 24 V/3.5 A Stabilized power supply Input: 48 V DC (28…60 V) Output: 24 V DC/3.5 A NEC CLASS2
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP3233-0TA10-0AY0 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP3233-0TA10-0AY0 |
| product brand name | SITOP |
| product type designation | PSU3400 |
| product designation | Power supply SITOP DC-DC converter |
| type of current supply | 24 V/3.5 A |
input
| type of the power supply network | DC voltage |
| voltage curve at input | DC |
| supply voltage at AC | Startup as of 36 V, derating necessary for 28 ... 36 V DC |
| supply voltage at DC | 48 V |
| input voltage at DC | 28 ... 60 V |
| wide range input | No |
| overvoltage overload capability | - |
| buffering time for rated value of the output current in the event of power failure minimum | 5 ms |
| operating condition of the mains buffering | at Vin = 48 V |
| input current — at rated input voltage 48 V | 1.9 A |
| current limitation of inrush current at 25 °C maximum | 15 A |
| I2t value maximum | 0.09 A²·s |
| fuse protection type | 15 A (not accessible), breaking capacity 100 A |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 16 A characteristic B or C |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28 V |
| relative overall tolerance of the voltage | 1 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.1 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 0.2 % |
| residual ripple — maximum | 150 mV |
| residual ripple — typical | 30 mV |
| voltage peak — maximum | 250 mV |
| voltage peak — typical | 70 mV |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 0.5 s |
| voltage increase time of the output voltage — typical | 10 ms |
| voltage increase time of the output voltage — maximum | 20 ms |
| output current — rated value | 3.5 A |
| output current — rated range | 0 ... 3.5 A; +60 to +70 °C: without derating |
| supplied active power typical | 91 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
efficiency
| efficiency in percent | 90 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 7 W |
| power loss [W] — during no-load operation maximum | 1.5 W |
closed-loop control
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 2 % |
| setting time — load step 50 to 100% typical | 1 ms |
| setting time — load step 100 to 50% typical | 1 ms |
protection and monitoring
| design of the overvoltage protection | Ua < 35 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| typical | 3.8 A |
| display version for overload and short circuit | LED yellow for "overload" |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class III |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 61000-6-3 |
| standard — for mains harmonics limitation | not applicable |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability — NEC Class 2 | Yes; according to UL1310 |
| type of certification — CB-certificate | Yes |
| MTBF at 40 °C | 1 934 648 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
ambient conditions
| ambient temperature — during operation | -25 ... +70 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | screw terminal |
| at input | L, N, FE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.5 ... 2.5 mm² |
mechanical data
| width × height × depth of the enclosure | 32 × 100 × 100 mm |
| installation width × mounting height | 32 mm × 200 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 50 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.32 kg |
accessories
| electrical accessories | Buffer module |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
