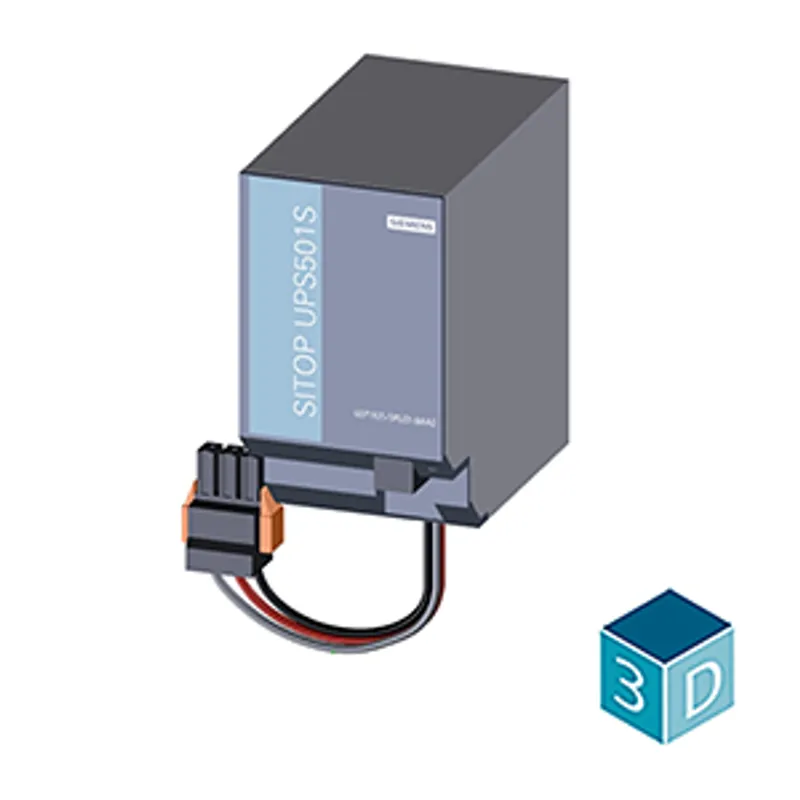

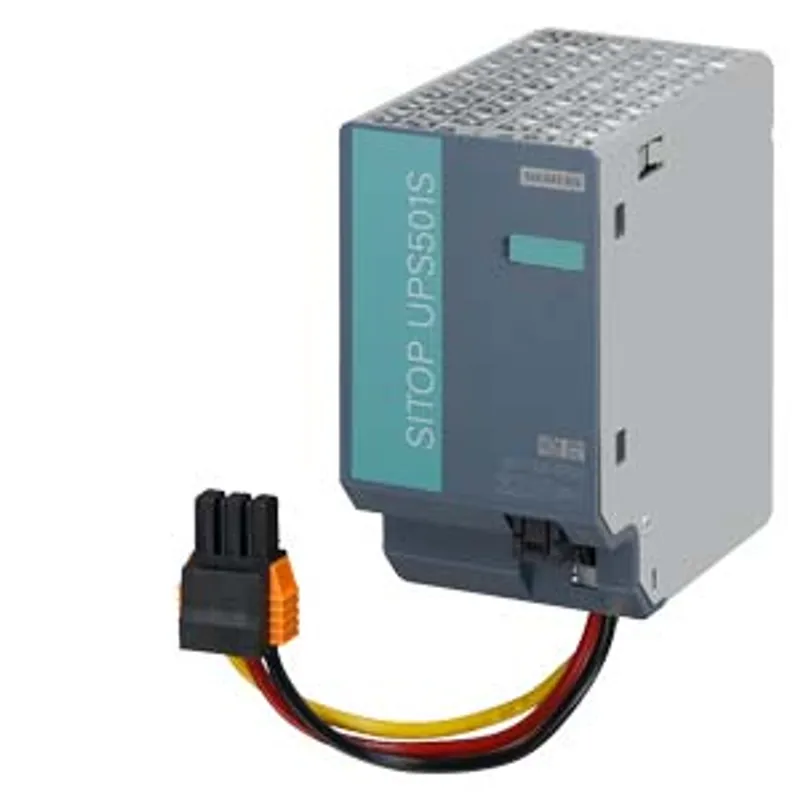

Siemens 6EP1935-5PG01-8AA0
SITOP UPS501S EX expansion module 5 kWs for UPS500S (2.5 kWs, 5 kWs) degree of protection IP20
- MPN
- 6EP1935-5PG01-8AA0
- Category
- DC UPS with capacitors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 6EP1935-5PG01-8AA0?
SITOP UPS501S EX expansion module 5 kWs for UPS500S (2.5 kWs, 5 kWs) degree of protection IP20
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP1935-5PG01-8AA0 |
| product brand name | SITOP |
| product type designation | UPS501 |
| type of current supply | Extension module |
input
| voltage curve at input | DC |
memory
| type of energy storage | with capacitors |
| product function DC-UPS modularly expandable | No |
| energy content of energy storage | 5 kW.s |
protection and monitoring
| display version — for normal operation | - |
interfaces
| product component PC interface | No |
| product function communication function | No |
| design of the interface | without |
safety
| operating resource protection class | Class III |
| protection class IP | IP20 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — UKCA marking | Yes |
| MTBF at 40 °C | 350 000 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | Yes |
| certificate of suitability — ATEX | Yes; ATEX (Ex) II 3G Ex ec IIC T4 Gc |
| certificate of suitability — CCC for hazardous zone according to GB standard | Yes |
standards, specifications, approvals marine classification
| shipbuilding approval | No |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — Det Norske Veritas (DNV) | No; in preparation |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 20.2 kg |
| global warming potential [CO2 eq] — during manufacturing | 11.1 kg |
| global warming potential [CO2 eq] — during operation | 8.7 kg |
| global warming potential [CO2 eq] — after end of life | 0.21 kg |
ambient conditions
| ambient temperature — during operation | 0 ... 60 °C; with natural convection |
| ambient temperature — during transport | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |

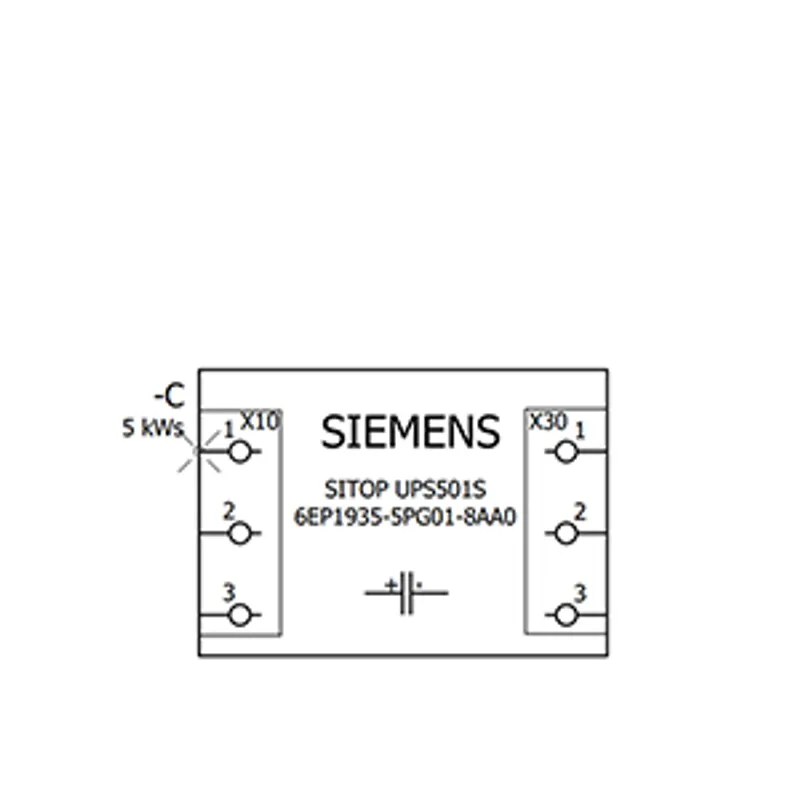

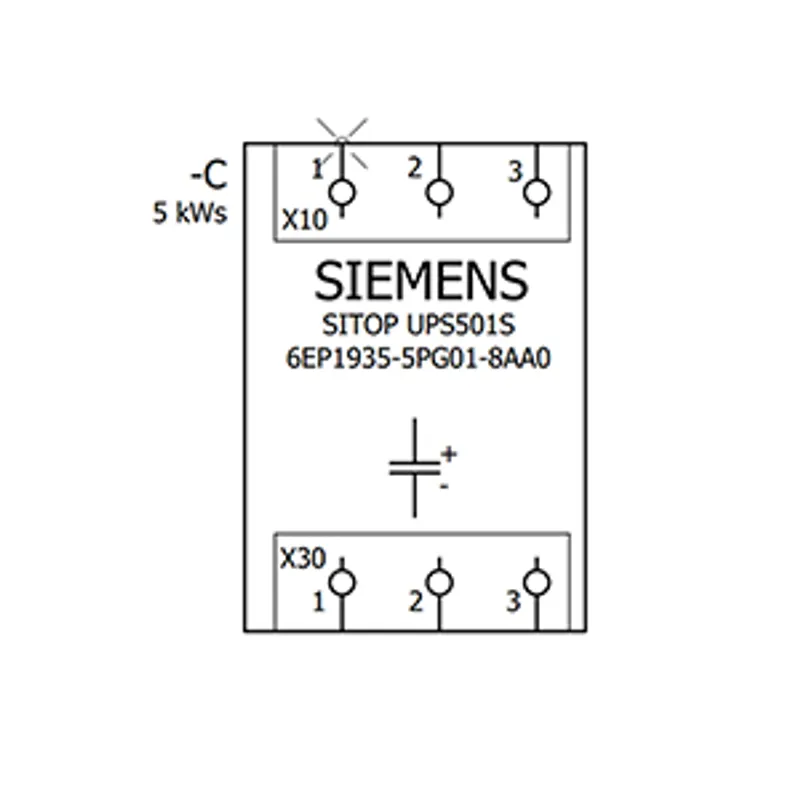

connection method
| type of electrical connection | screw terminal |
| type of electrical connection — at output | can be connected to SITOP UPS500S via a plug-in system |

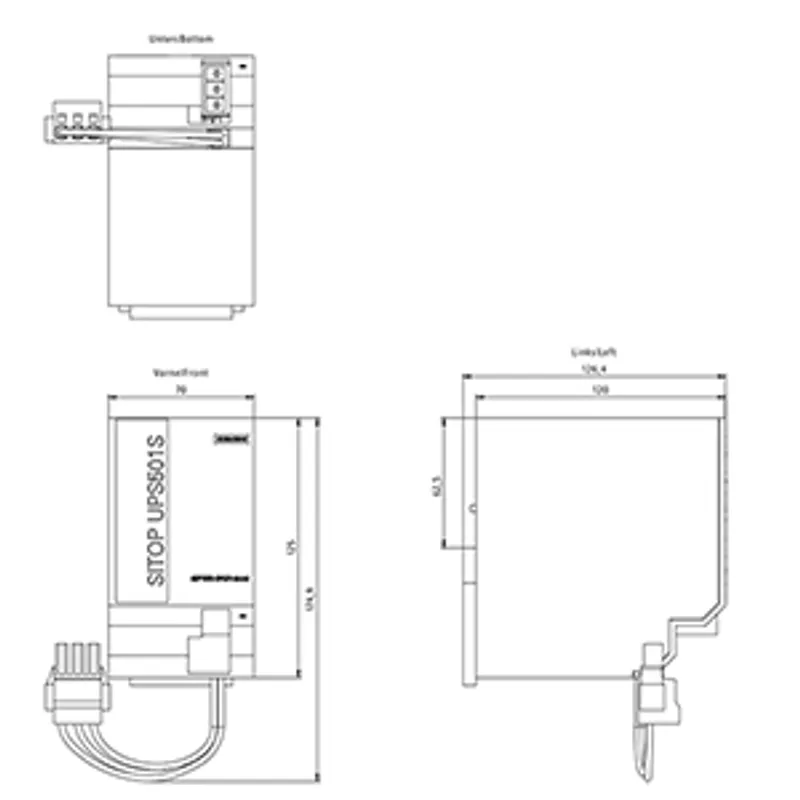

mechanical data
| width × height × depth of the enclosure | 70 × 125 × 125 mm |
| installation width × mounting height | 70 mm × 225 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 50 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| fastening method — DIN-rail mounting | Yes |
| fastening method — S7 rail mounting | No |
| fastening method — wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.7 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
No matching specifications
