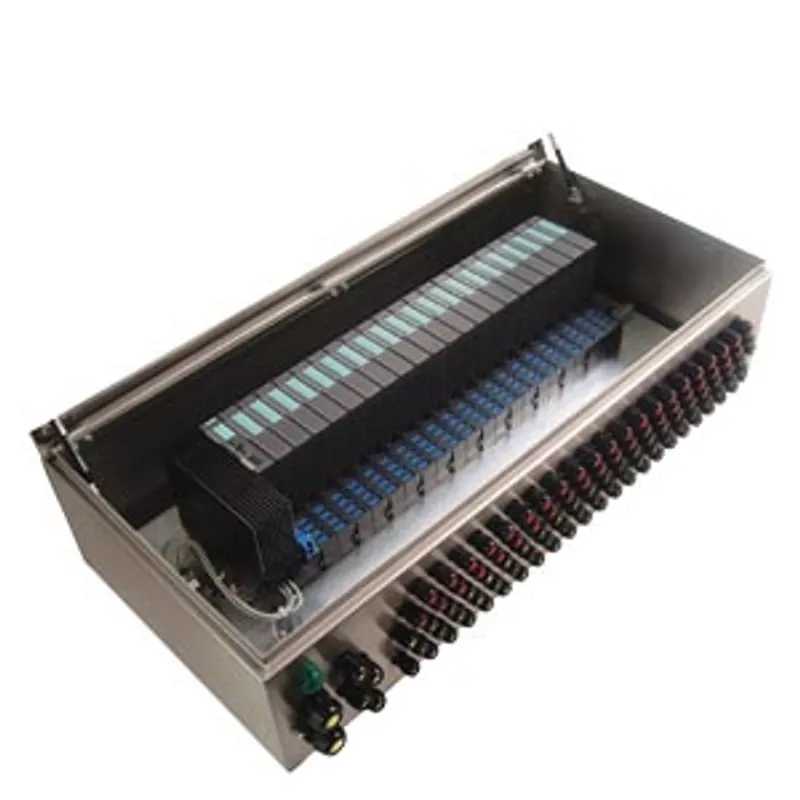

Siemens 6DL2804-1AE50
Ex device made of stainless steel, IP65
- MPN
- 6DL2804-1AE50
- Category
- Stainless steel wall enclosure
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL2804-1AE50?
Ex device made of stainless steel, IP65. With installation of the ET 200iSP components (these must be ordered separately). II 2 (1) G Ex eb db ib [ia Ga] IIC T4 Gb. Size (WxHxD): 950x450x230, for max. 24 iSP modules (EM/IM). Cable entries: 2x M32 power supply, 4x M20 bus cables and 110x M16 (4.5-9 mm) for signals in 5 rows, version in plastic black. Ambient operating temperature minimum -20 degrees Celsius. The ET 200iSP components to be installed in the enclosure must be ordered with the cabinet.
Specifications
General information
| Product type designation | SIMATIC ET 200iSP stainless steel Ex device |
| Suitability for use | gas, hazardous zone 1 and 2 |
| Product version | width 950 mm, IP65, cable glands M16 plastic black |
Installation type/mounting
| Wall mounting/direct mounting | Yes |
Supply voltage
| Type of supply voltage | 24 V DC, 120 V AC, 230 V AC |
Standards, approvals, certificates
| CE mark | Yes |
| UKCA mark | Yes |
| UL approval | No |
| RoHS conformity | Yes |
| China RoHS compliance | No |
| Use in hazardous areas — ATEX marking | II 2 (1) G Ex eb db ib [ia Ga] IIC T4 Gb |
| Use in hazardous areas — ATEX certificate | BVS 04 ATEX E 157 |
| Use in hazardous areas — EAC Ex | No |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; down to -40 °C when using heater |
| Ambient temperature during operation — max. | 45 °C; dependent on the power loss of the installed components |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
Connection method
| Supply voltage connection — Conductor cross-section in mm² — Connectable cable cross-sections for massive cables, min. | 0.5 mm²; direct connection to ET 200iSP power supply TM-PS |
| Supply voltage connection — Conductor cross-section in mm² — Connectable cable cross-sections for massive cables, min. | 4 mm²; direct connection to ET 200iSP power supply TM-PS. For larger cross-sections, order additional supply terminals 6DL9910-8E* |
| Supply voltage connection — Conductor cross-section in mm² — Connectable cable cross-sections for flexible cables without end sleeve, min. | 0.5 mm²; direct connection to ET 200iSP power supply TM-PS |
| Supply voltage connection — Conductor cross-section in mm² — Connectable cable cross-sections for flexible cables without end sleeve, max. | 2.5 mm²; direct connection to ET 200iSP power supply TM-PS. For larger cross-sections, order additional supply terminals 6DL9910-8E* |
| Supply voltage connection — Conductor cross-section in mm² — Connectable cable cross-sections for flexible cables with end sleeve, min. | 0.5 mm²; direct connection to ET 200iSP power supply TM-PS |
| Supply voltage connection — Conductor cross-section in mm² — Connectable cable cross-sections for flexible cables with end sleeve, max. | 2.5 mm²; direct connection to ET 200iSP power supply TM-PS. For larger cross-sections, order additional supply terminals 6DL9910-8E* |
Mechanics/material
| Design of housing | width 950 mm, IP65, cable glands M16 plastic black |
Dimensions
| Width | 950 mm |
| Height | 450 mm |
| Depth | 230 mm |
| Thickness | 1.5 mm; sheet thickness, stainless steel DIN 1.4404 (SS 316L) |
Weights
| Weight, approx. | 26 kg |
