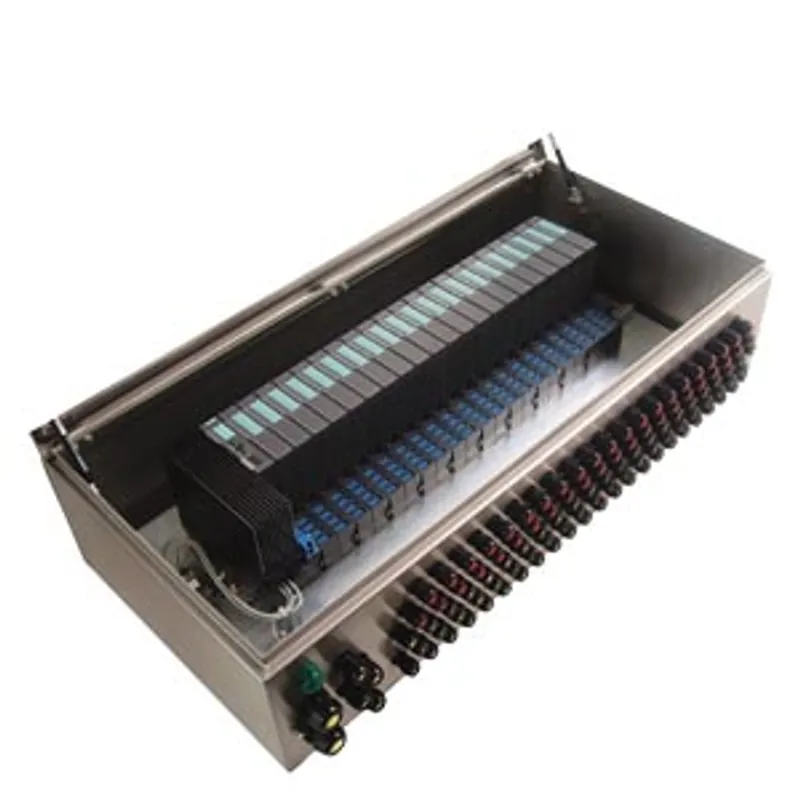

Siemens 6DL2804-0AD62
Ex enclosure made of stainless steel, IP65
- MPN
- 6DL2804-0AD62
- Category
- Stainless steel wall enclosure
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL2804-0AD62?
Ex enclosure made of stainless steel, IP65. Empty enclosure prepared for installation of the ET 200iSP. II 2G Ex eb IIC Gb Size (WxHxD): 650x450x230, for max. 14 iSP modules (EM/IM). Cable entries: 2x M32 power supply, 4x M20 bus cables and 60x M20 (7-13 mm) for signals in 5 rows, version in plastic blue. Ambient operating temperature -40...+70 °C.
Specifications
General information
| Product type designation | Ex enclosure |
| Suitability for use | gas, hazardous zone 1 and 2 |
| Product version | width 650 mm, IP65, cable glands M20 plastic blue |
Installation type/mounting
| Wall mounting/direct mounting | Yes |
Supply voltage
| Type of supply voltage | 24 V DC, 120 V AC, 230 V AC |
Standards, approvals, certificates
| CE mark | Yes |
| UKCA mark | Yes |
| UL approval | No |
| RoHS conformity | Yes |
| China RoHS compliance | No |
| Use in hazardous areas — ATEX marking | II 2G Ex eb IIC Gb |
| Use in hazardous areas — ATEX certificate | DMT 02 ATEX E 249 U |
| Use in hazardous areas — EAC Ex | No |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; down to -40 °C when using heater |
| Ambient temperature during operation — max. | 45 °C; dependent on the power loss of the installed components |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
Mechanics/material
| Design of housing | width 650 mm, IP65, cable glands M20 plastic blue |
Dimensions
| Width | 650 mm |
| Height | 450 mm |
| Depth | 230 mm |
| Thickness | 1.5 mm; sheet thickness, stainless steel DIN 1.4404 (SS 316L) |
Weights
| Weight, approx. | 18.5 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6DL2804-0AD62: frequently asked questions
When can 6DL2804-0AD62 be shipped?
6DL2804-0AD62 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6DL2804-0AD62 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6DL2804-0AD62 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL2804-0AD62, subject to availability and destination.
