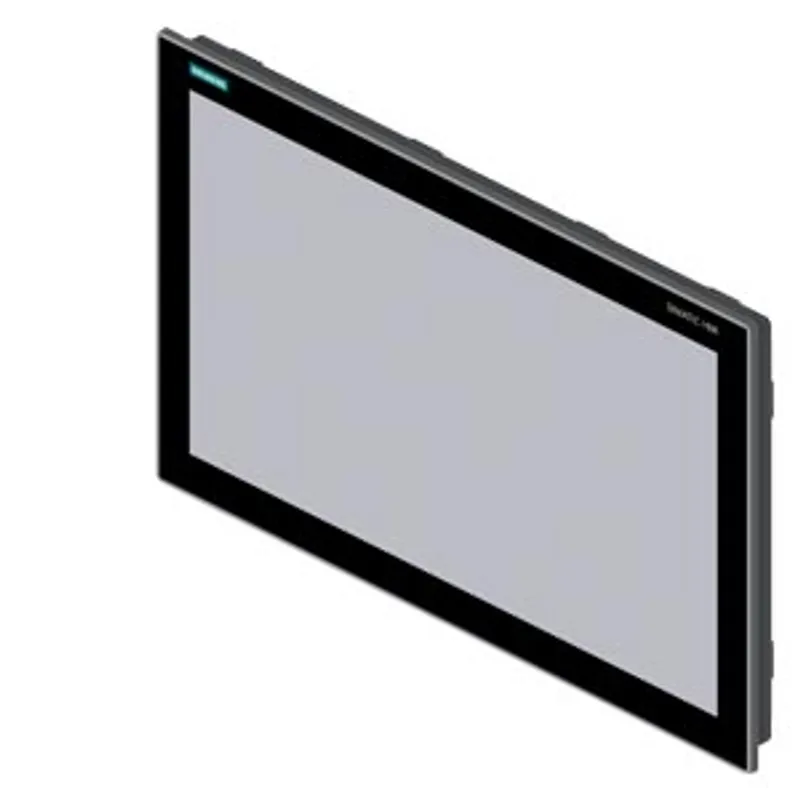

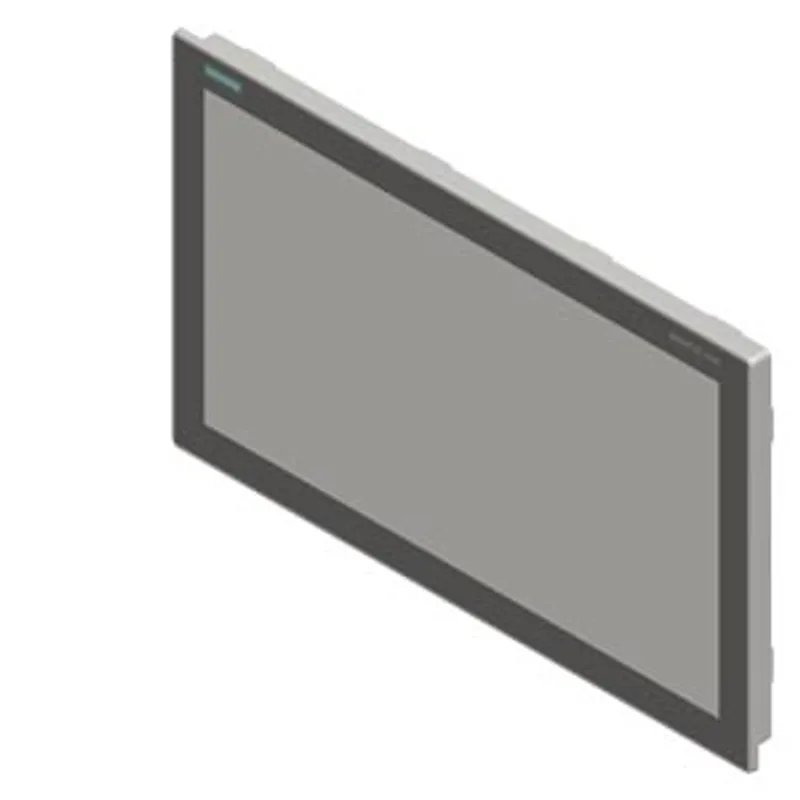

Siemens 6AV7862-2BF00-0AA0
SIMATIC IFP2200 Basic Flat Panel 22" display (16:9) Touch, 1920 x 1080 pixels, standard up to 5 m, for 24V DC
- MPN
- 6AV7862-2BF00-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7862-2BF00-0AA0?
SIMATIC IFP2200 Basic Flat Panel 22" display (16:9) Touch, 1920 x 1080 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA interface
Specifications
General information
| Product type designation | IFP2200 Basic |
| Short designation | Basic Flat Panel 22" Touch |
Display
| Design of display | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| On Screen Display (OSD) configuration | No |
| Number of colors | 16 000 000; 16 million |
| Resolution (pixels) — Image resolution | 1 920 x 1 080 |
| Resolution (pixels) — Horizontal image resolution | 1 920 pixel |
| Resolution (pixels) — Vertical image resolution | 1 080 pixel |
| General features — Detachable from computer unit | 5 m |
| Backlighting — Type of backlighting | LED |
| Backlighting — MTBF backlighting (at 25 °C) | 30 000 h |
| Backlighting — Backlight dimmable | Yes; 0-100 % |
Control elements
| Control elements | single-touch screen |
| Input device — Integrated mouse cursor control | No |
| Touch operation — Design as touch screen | Yes; Analog-resistive |
Installation type/mounting
| Design | Built-in unit |
| Front mounting | Yes |
| VESA mounting | Yes; VESA 100 x 100 integrated |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| Built-in unit | Yes; Portrait mode possible |
| maximum permitted forward tilt angle from vertical | 45° |
| maximum permitted backward tilt angle from vertical | 45° |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Power loss
| Power loss, typ. | 24 W |
| Power loss, max. | 60 W |
Interfaces
| Number of USB interfaces | 2; USB 2.0 (downstream) |
| USB on the rear | Yes; 2x onboard |
| Video interfaces — DisplayPort | Yes |
| Touch interfaces — USB | Yes; USB Type A |
Degree and class of protection
| IP (at the front) | IP65 |
Standards, approvals, certificates
| CE mark | Yes |
| cULus | Yes; UL 61010-1, UL 61010-2-201 |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| FCC | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Relative humidity — Operation, max. | 85 % |
| Vibrations — Vibration load in operation | 5 m/s² |
| Vibrations — Vibration load during transport/storage | 10 m/s² |
| Shock testing — Shock load during operation | 150 m/s² |
| Shock testing — shock acceleration during storage/transport | 250 m/s² |
Mechanics/material
| Enclosure material (front) — Aluminum | Yes |

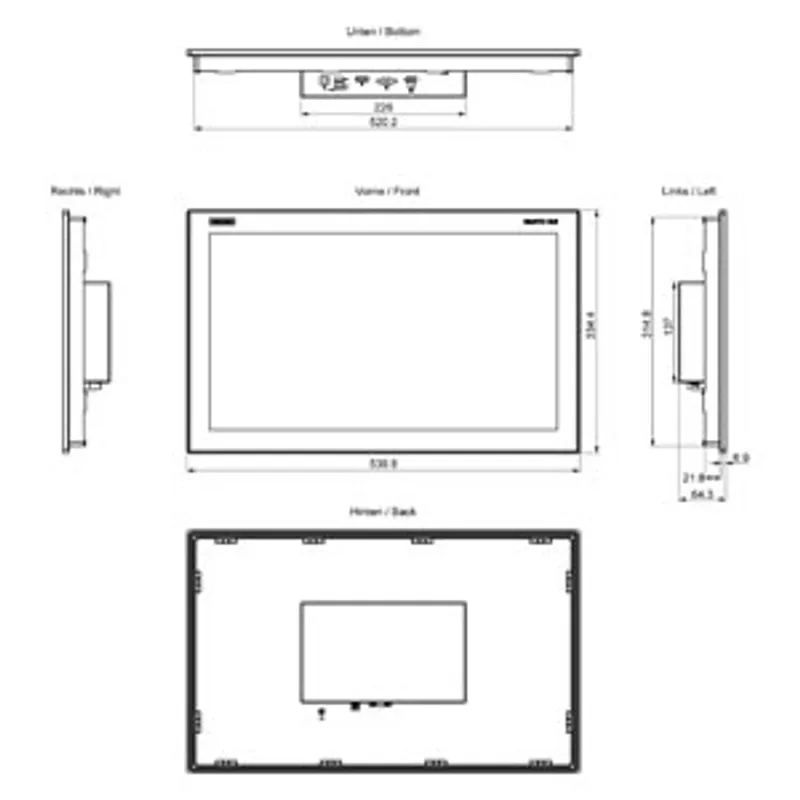

Dimensions
| Width of the housing front | 540 mm |
| Height of housing front | 334 mm |
| Mounting cutout, width | 522.2 mm |
| Mounting cutout, height | 316.8 mm |
| mounting depth | 59 mm |
Weights
| Weight (without packaging) | 6.5 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AV7862-2BF00-0AA0: frequently asked questions
When can 6AV7862-2BF00-0AA0 be shipped?
6AV7862-2BF00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AV7862-2BF00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AV7862-2BF00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AV7862-2BF00-0AA0, subject to availability and destination.
