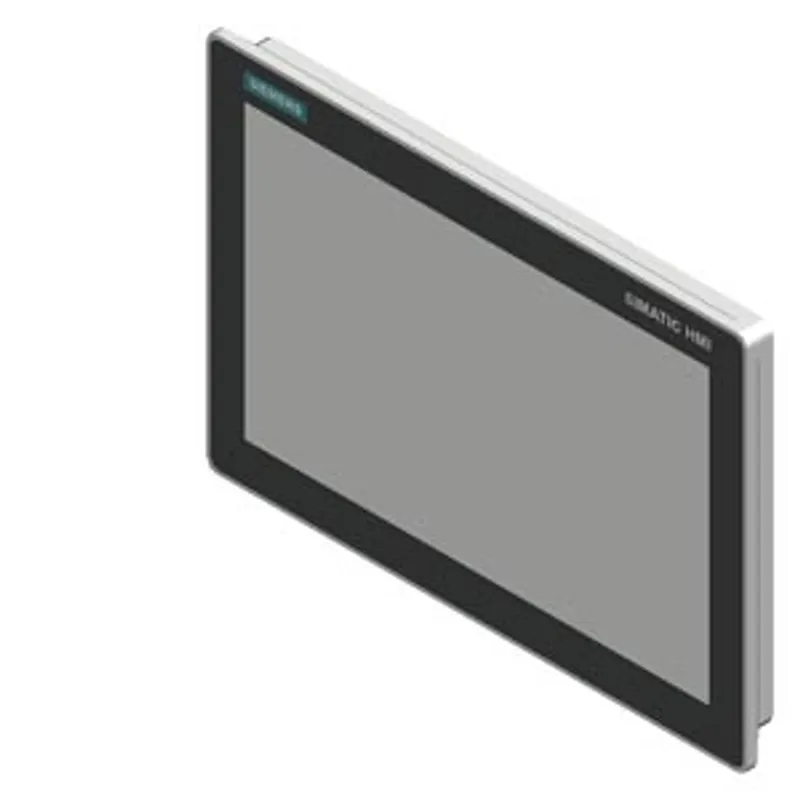

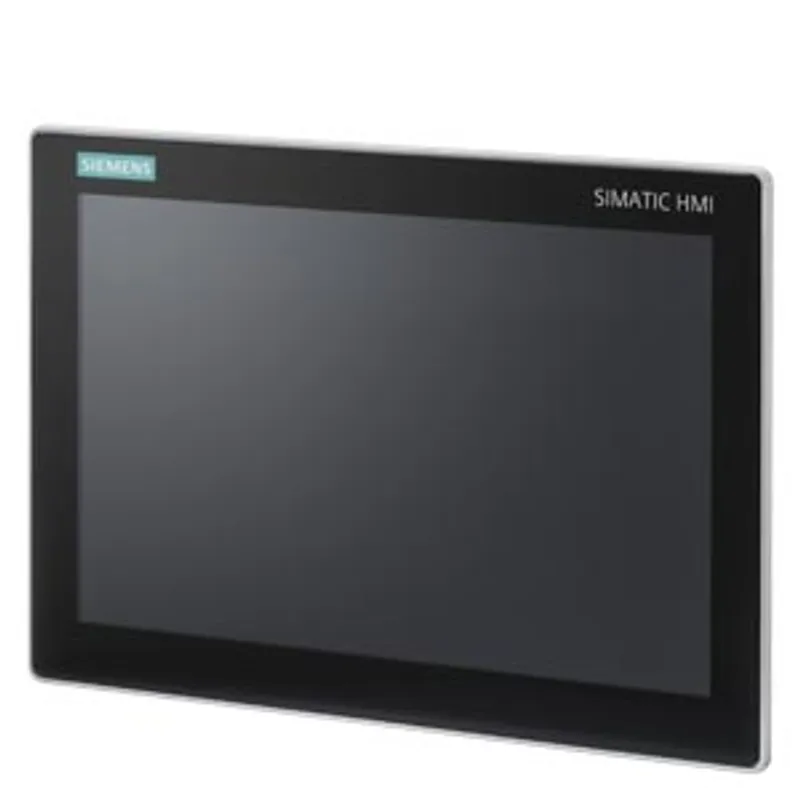

Siemens 6AV7862-2BC00-2AA0
SIMATIC HMI IM-312A multi-touch industrial monitor 12" (resolution 1280 x 800) power supply
- MPN
- 6AV7862-2BC00-2AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7862-2BC00-2AA0?
SIMATIC HMI IM-312A multi-touch industrial monitor 12" (resolution 1280 x 800) power supply; 12/24 V DC 1 x DP, 1 x HDMI 1 x USB type A & 1 x USB type
Specifications
General information
| Product type designation | SIMATIC HMI IM-312A |
| Short designation | IM-312A |
Display
| Design of display | TFT widescreen display, LED backlighting |
| Screen diagonal | 12.1 in |
| Display width | 261.1 mm |
| Display height | 163.2 mm |
| On Screen Display (OSD) configuration | No; Adjustable by means of software |
| Number of colors | 16 000 000; 16 million |
| Viewing angle | 160° x 160° |
| Resolution (pixels) — Horizontal image resolution | 1 280 pixel |
| Resolution (pixels) — Vertical image resolution | 800 pixel |
| General features — Brightness/contrast | 400 cd/m² / 800:1 |
| General features — Detachable from computer unit | 5 m |
| General features — Luminance | 400 cd/m² |
| Backlighting — Type of backlighting | LED, dimmable |
| Backlighting — MTBF backlighting (at 25 °C) | 50 000 h |
| Backlighting — Backlight dimmable | Yes; 10 ... 100% |
Control elements
| Input device — Integrated mouse cursor control | No |
| Touch operation — Design as touch screen | Yes; Projective-capacitive |
| Touch operation — Design as multi-touch screen | Yes |
| Touch operation — Monitor keyboard | No |
Installation type/mounting
| VESA mounting | Yes; VESA 100 x 100 |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| Built-in unit | Yes; Portrait mode possible |
| maximum permitted forward tilt angle from vertical | 45° |
| maximum permitted backward tilt angle from vertical | 45° |
Supply voltage
| Type of supply voltage | 12-24 V DC |
| Rated value (DC) | 24 V; 12/24 V DC |
| permissible range, lower limit (DC) | 9 V |
| permissible range, upper limit (DC) | 36 V |
Input current
| current consumption (for rated value of supply voltage), min. | 0.43 A |
| current consumption (for rated value of supply voltage), max. | 1.7 A |
| Starting current inrush I²t | 0.1 A²·s |
Power loss
| Power loss, typ. | 15.5 W |
| Power loss, max. | 17 W |

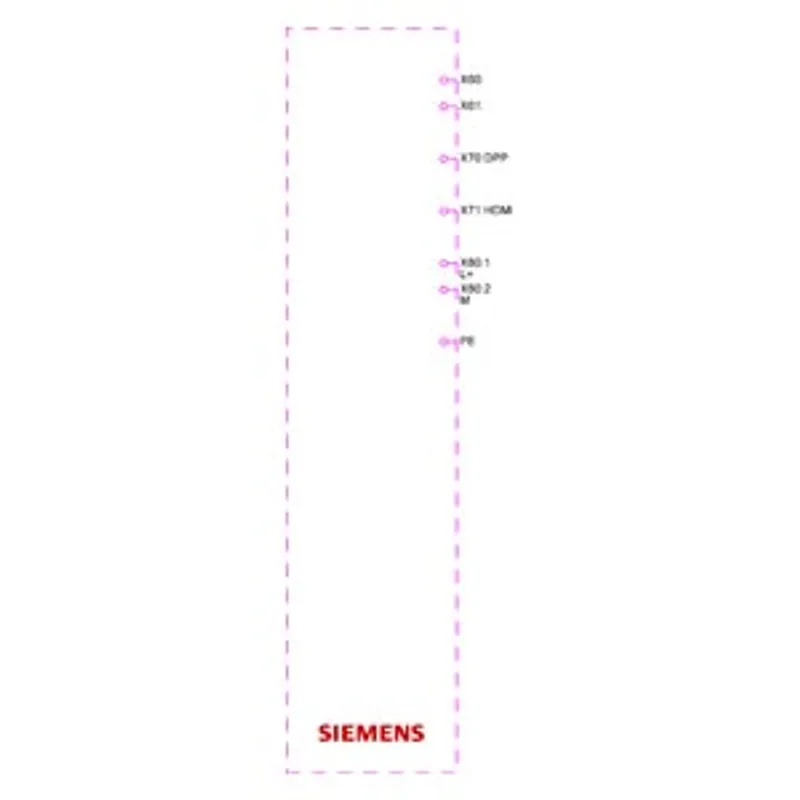

Interfaces
| Number of USB interfaces | 1; USB 2.0 (downstream) |
| Video interfaces — DisplayPort | Yes; Display port V1.2 |
| Touch interfaces — USB | Yes; USB 2.0 |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP40 (cabinet mounting) / IP20 (VESA) |
Standards, approvals, certificates
| CE mark | Yes; also UKCA |
| RCM (formerly C-TICK) | Yes |
| FCC | Yes |
| EMC | CE, EN 61000-6-4, EN 61000-6-2 |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Relative humidity — Operation, max. | 85 %; no condensation |
| Vibrations — Vibration load in operation | 10 m/s² |
| Vibrations — Vibration load during transport/storage | 10 m/s² |
| Shock testing — Shock load during operation | 150 m/s² |
| Shock testing — shock acceleration during storage/transport | 250 m/s² |
Mechanics/material
| Enclosure material (front) — Aluminum | Yes |
| Enclosure material (front) — Glass | Yes |

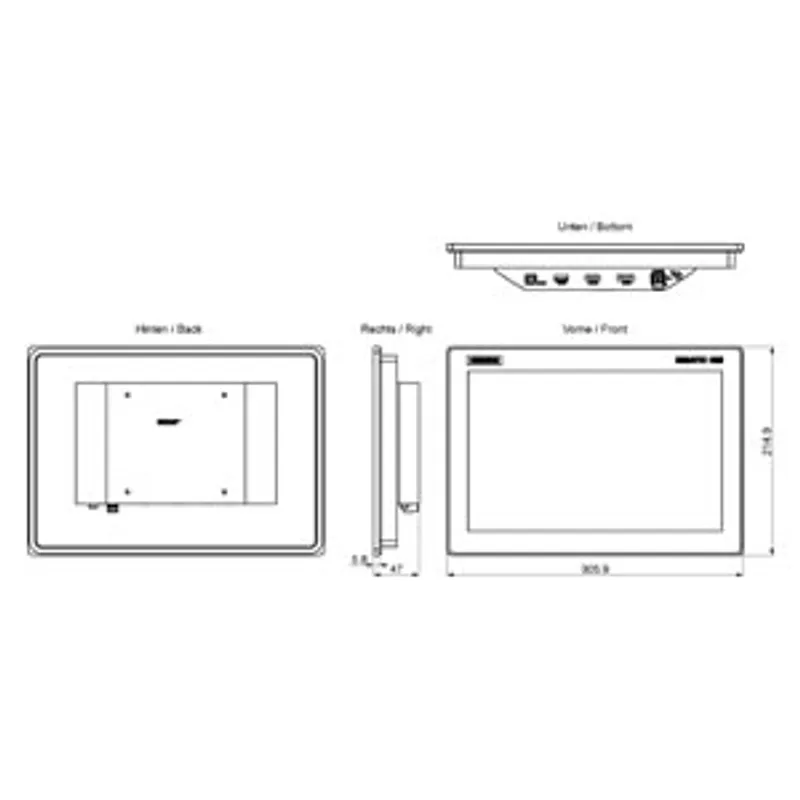

Dimensions
| Width of the housing front | 306 mm |
| Height of housing front | 215 mm |
| Mounting cutout, width | 290 mm |
| Mounting cutout, height | 199 mm |
| mounting depth | 47 mm |
Weights
| Weight (without packaging) | 1.8 kg |
| Weight (with packaging) | 2.8 kg |
