Siemens 6AV7676-1AC10-0AA0
SIMATIC IPC MD-34A Vehicle Dock accessories; compatible with MD-34A Entry
- MPN
- 6AV7676-1AC10-0AA0
- Category
- SIMATIC IPC MD-34A
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7676-1AC10-0AA0?

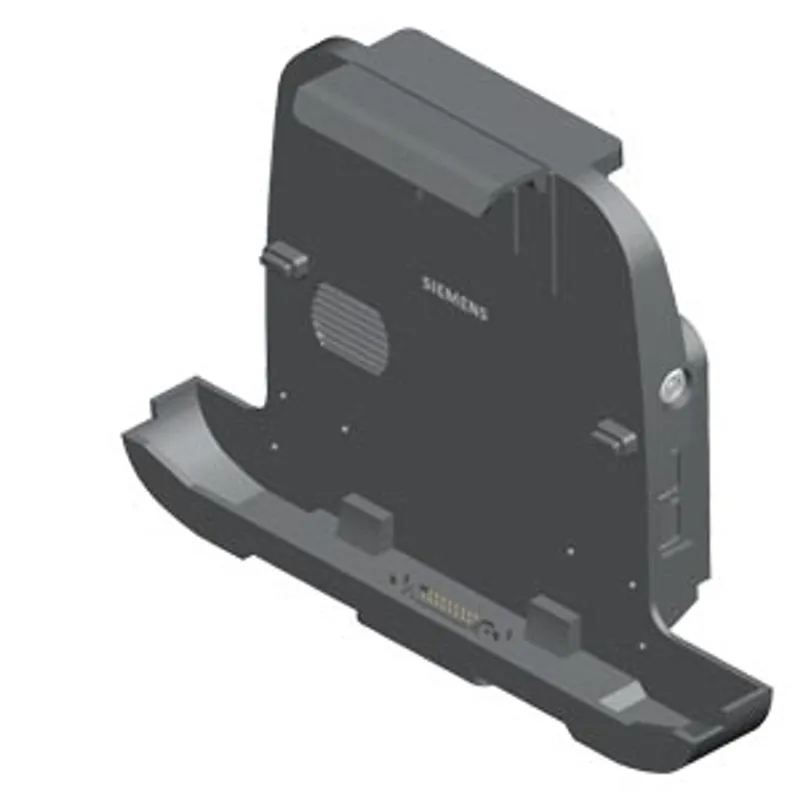

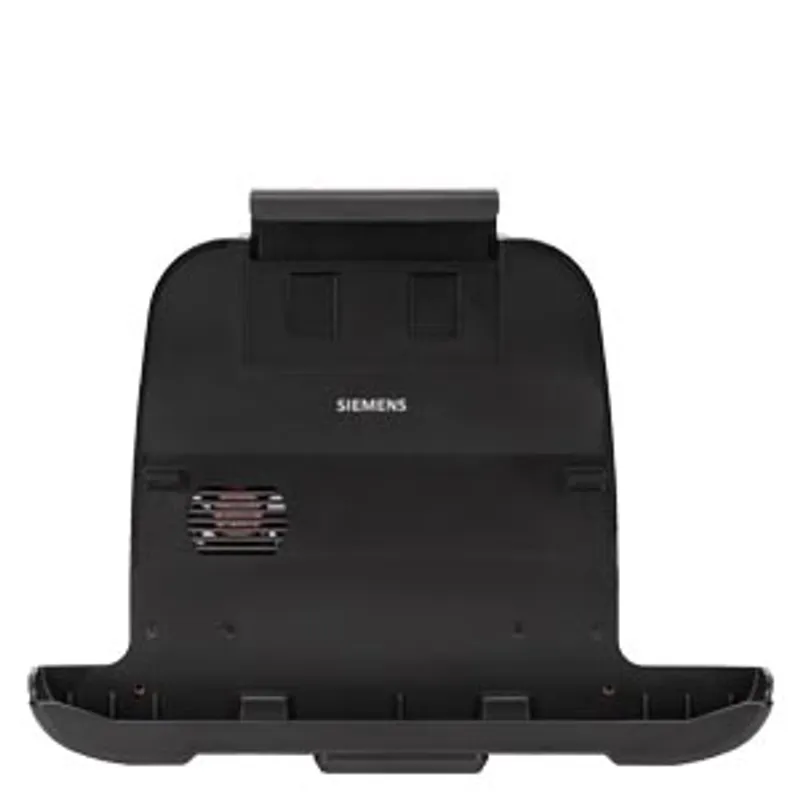

SIMATIC IPC MD-34A Vehicle Dock accessories; compatible with MD-34A Entry, Entry Plus and Outdoor configurations; 1x LAN 10/100 Mbps, 2x USB 2.0; 1x RS-232; 1x VGA, DC-in 9-36 V side; 2x USB 2.0; you must select your power supply cord; note: due to the mechanical design of the RFID module, the High-End and Automation versions cannot be adapted to the vehicle docking station
Specifications
General information
| Design of the programming device | Mobile computer |
Supply voltage
| Rated value (DC) | 19 V |
| permissible range, lower limit (DC) | 9 V |
| permissible range, upper limit (DC) | 36 V |
| permissible range, lower limit (AC) | 100 V |
| permissible range, upper limit (AC) | 240 V |
Interfaces
| Number of RS 232 interfaces | 1 |
| Number of USB interfaces | 4 |
| Number of USB interfaces — Type A | 4; 2* USB 2.0 in rear I/O 2* USB 2.0 in the side I/O |
| Video interfaces — analog video signal (VGA) | No |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes; 1* 10/100 MBits/s |
| Industrial Ethernet — Wake on LAN | No |
| Industrial Ethernet — IAMT (Intel Active Management Technology) | No |
Standards, approvals, certificates
| CE mark | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 45 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Relative humidity — Operation, min. | 50 % |
| Relative humidity — Operation, max. | 95 % |

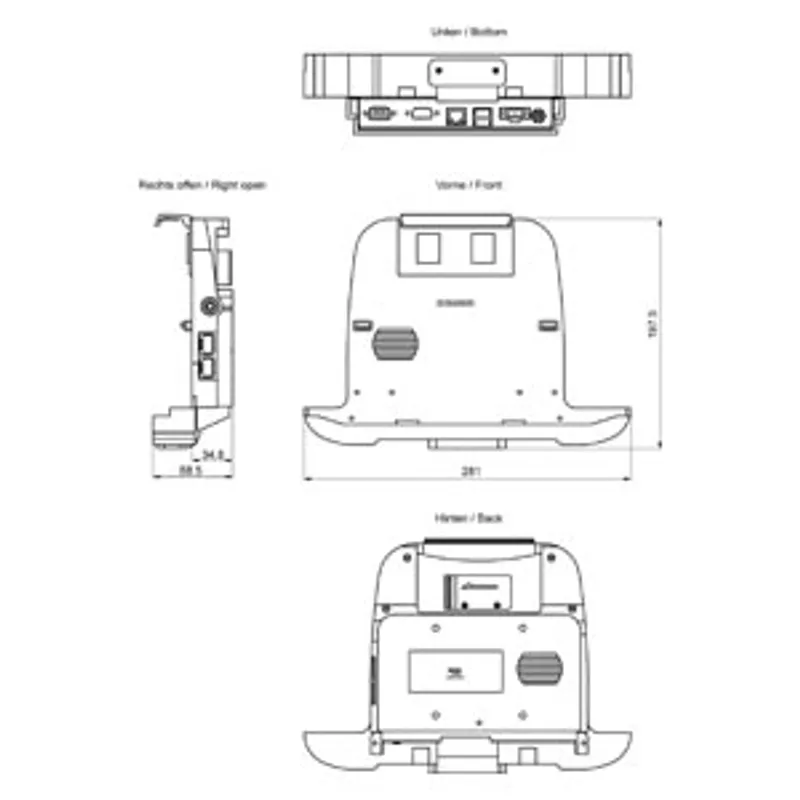

Dimensions
| Width | 280 mm |
| Height | 198 mm |
| Depth | 69 mm |
Weights
| Weight, approx. | 670 mg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AV7676-1AC10-0AA0: frequently asked questions
When can 6AV7676-1AC10-0AA0 be shipped?
6AV7676-1AC10-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AV7676-1AC10-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AV7676-1AC10-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AV7676-1AC10-0AA0, subject to availability and destination.
