Siemens 6AV7675-8RB00-0AA0
Backplane cover IP20 15", Accessory for TP/ITC 1500 15", color black, Degree of protection IP20, VESA 100
- MPN
- 6AV7675-8RB00-0AA0
- Category
- HMI & Operator Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

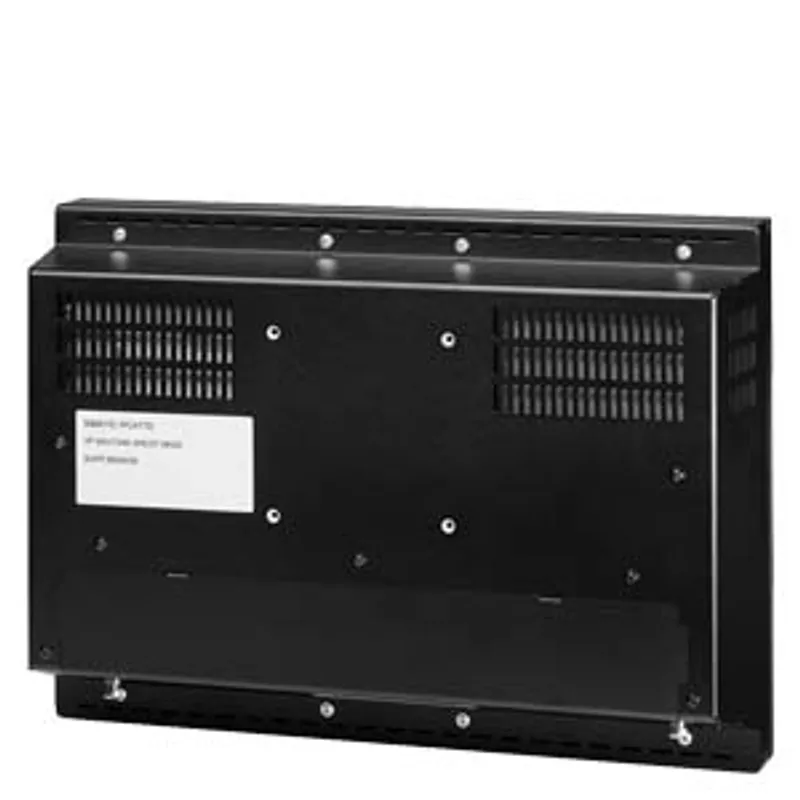

What is the Siemens 6AV7675-8RB00-0AA0?
Backplane cover IP20 15", Accessory for TP/ITC 1500 15", color black, Degree of protection IP20, VESA 100, incl. 4 screws for mounting "Only for Comfort Panels V1 devices"
Specifications
General information
| Product type designation | Backplane cover |
Installation type/mounting
| Mounting type | VESA |
| Mounting position | Horizontal; deviation from the vertical < 35 angular degree (to the front or rear) |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
Degree and class of protection
| IP (rear) | IP20 |
Standards, approvals, certificates
| CE mark | Yes; CE marking / EC Declaration of Conformity |
| cULus | Yes; UL 60950-1, file number E115352 |
| RoHS conformity | Yes |
| China RoHS compliance | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Relative humidity — Operation, max. | 95 % |
| Relative humidity — Condensation permissible | No |
Mechanics/material
| Material — Aluminum | Yes |
| Screw type — Torx | Yes; T10 |
Dimensions
| Width | 415 mm |
| Height | 310 mm |
| Depth | 90 mm |
Weights
| Weight (without packaging) | 1.6 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AV7675-8RB00-0AA0: frequently asked questions
When can 6AV7675-8RB00-0AA0 be shipped?
6AV7675-8RB00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AV7675-8RB00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AV7675-8RB00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AV7675-8RB00-0AA0, subject to availability and destination.
