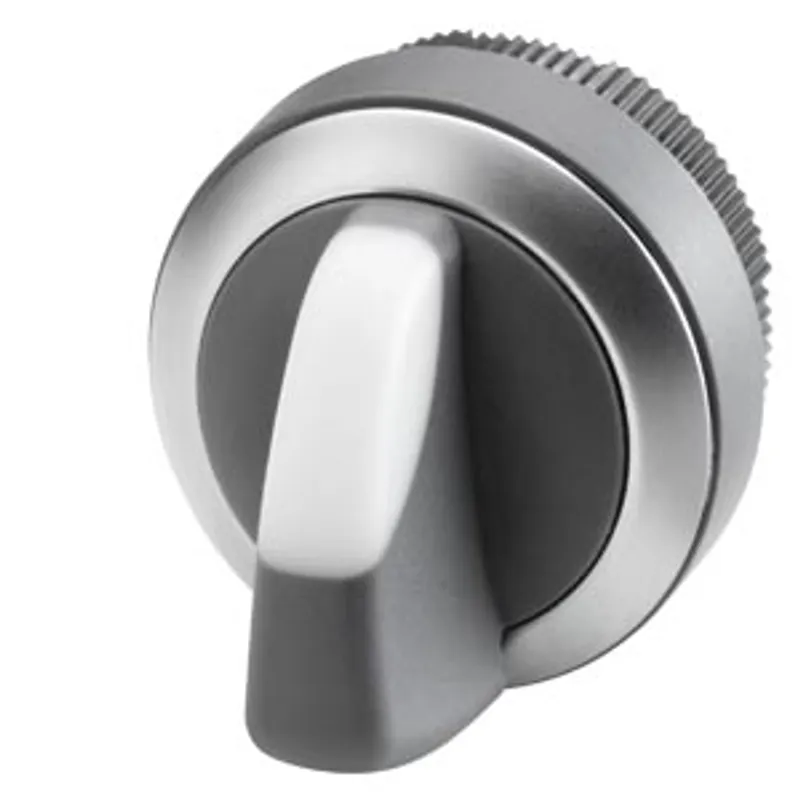

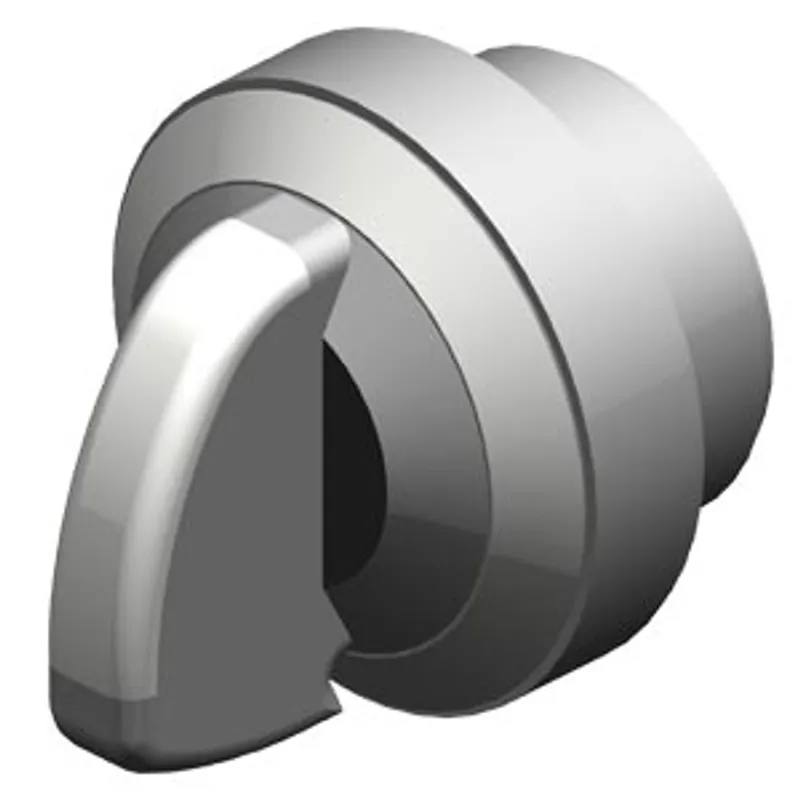

Siemens 6AV7674-1MD00-0AA0

Selector switch for Extension Units, 22 mm, round, plastic, latching, with integrated white LED

MPN: 6AV7674-1MD00-0AA0
Category: Extension Units and operator controls

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AV7674-1MD00-0AA0?

selector switch for Extension Units, 22 mm, round, plastic, latching, with integrated white LED, 3 switch positions 1-0-2, 2 NO contacts, without inscription, (incl. printed circuit board with contact module), scope of supply: 1 selector switch, 1 printed circuit board, including mounting accessories

Specifications

General information

Product type designation

Selector switch for Extension Unit

Control elements

Version of actuating element	Rotary handle, 3 switch positions
Operating principle of the actuating element	Latching
Shape of actuating element	Round
Illuminant	Yes; Can be illuminated
Illuminant — Type of light source	SMT LED
Illuminant — Color of light source	Translucent white
Contact configuration	2 NO contacts

Installation type/mounting

Mounting type	Threaded ring
Front mounting	Yes; Front plate attachment in an Extension Unit for 16:9 PRO devices

Supply voltage

Rated value (DC)

24 V

Input current

Current consumption (rated value)

100 mA

EMC

Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas

Degree and class of protection

IP (at the front)

IP65 (on front) to EN60529 and NEMA4

Standards, approvals, certificates

CE mark	Yes
UKCA mark	Yes
UL approval	Yes; Only in combination with Extension Unit
cULus	Yes; Only in combination with Extension Unit
RCM (formerly C-TICK)	Yes; Only in combination with Extension Unit
Suitable for safety functions	No

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	50 °C
Ambient temperature during storage/transportation — min.	-20 °C
Ambient temperature during storage/transportation — max.	60 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	3 500 m
Relative humidity — Operation, max.	90 %
Relative humidity — Condensation permissible	No

Mechanics/material

Material — plastic	Yes
Material of the actuating element	plastic
Material of the front ring	plastic
Enclosure color (front)	gray
Color of the front ring	Silver metallic
Service life — Number of operating cycles, keys	300 000

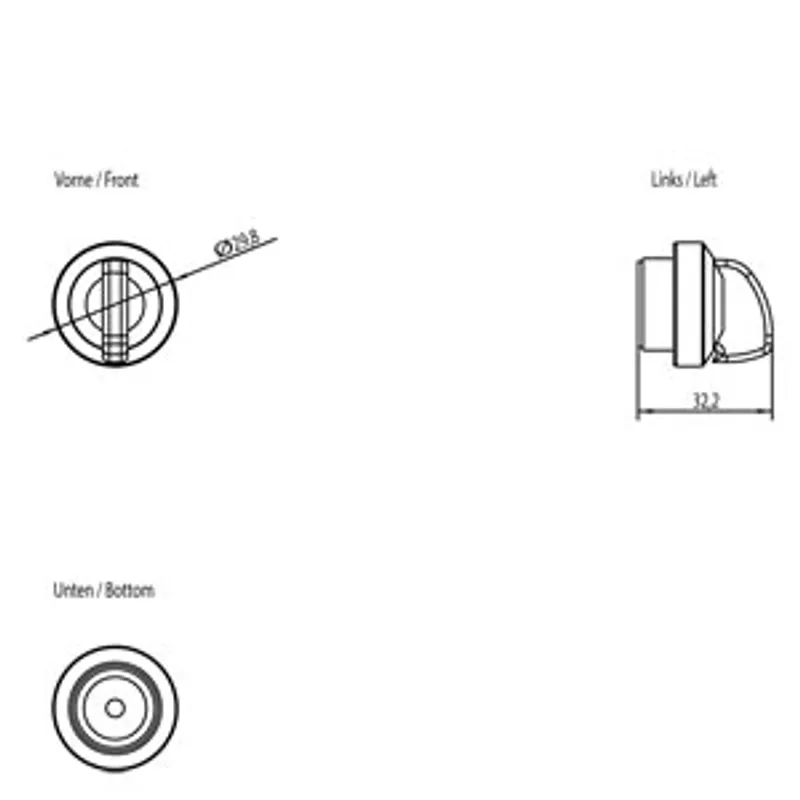

Dimensions

Height of housing front	22.24 mm
Mounting diameter	22.3 mm

Weights

Weight (without packaging)	50 g
Weight (with packaging)	100 g

Scope of supply

Delivery quantity in pieces

Other

Target devices

Suitable for Extension Units of the 16:9 HMI/IPC PRO devices (refer to manual)
