Siemens 6AV7674-1LX00-0AA0
USB interface for PRO devices, including cable and plug USB 2.0 type A, IP65 with closed protective cap
- MPN
- 6AV7674-1LX00-0AA0
- Category
- Extension components
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7674-1LX00-0AA0?

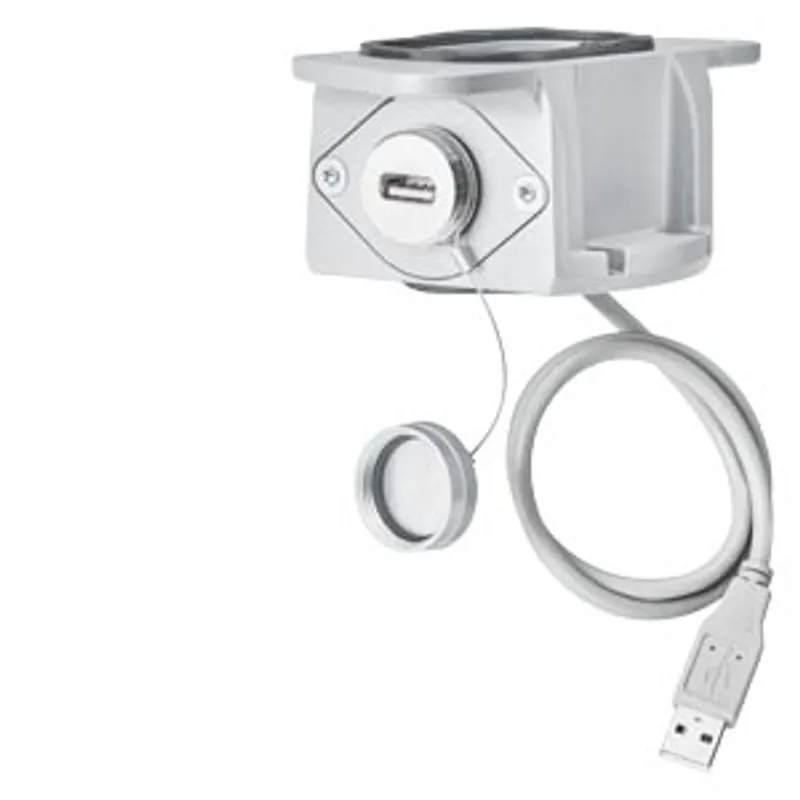

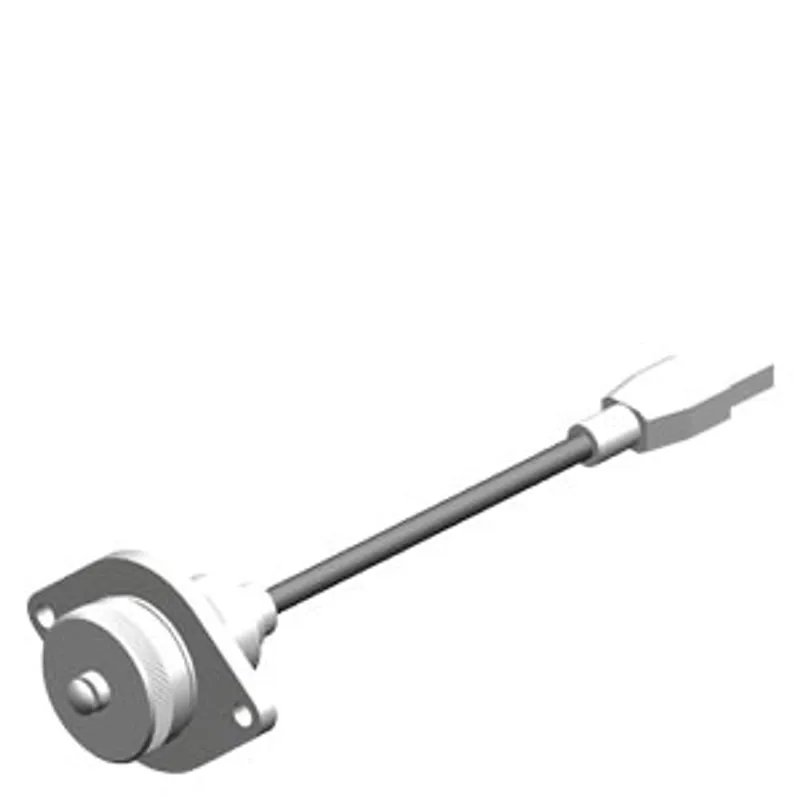

USB interface for PRO devices, including cable and plug USB 2.0 type A, IP65 with closed protective cap, mounting on the side of the basic adapter, scope of supply: 1 USB socket with cable and plug mounted in the cover, 1 protective cap, including screws
Specifications
General information
| Product type designation | USB interface for PRO devices |
Control elements
| Connection type — USB | Yes; USB 2.0 type A |
| Connection type — Cable length | 0.5 m |
Installation type/mounting
| Mounting | Integrated by means of cover on the side of the basic adapter. |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas | Yes |
Degree and class of protection
| IP (all-round) | IP65 fully enclosed (when protective cover is closed) |
| IP (at the front) | IP20 when protective cover is open |
Standards, approvals, certificates
| CE mark | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 3 500 m |
| Relative humidity — Operation, max. | 90 % |
| Relative humidity — Condensation permissible | No |
Cables
| Cable length | 0.5 m |
Mechanics/material
| Material | Brass, nickel-plated |
| Enclosure material (front) | USB cover: Anodized aluminum, cover for basic adapter: Aluminum, powder-coated, RAL 9006 |
| Enclosure color (front) | Silver metallic |
| Service life — Number of operating cycles, keys | 1 500; Insertion cycles |

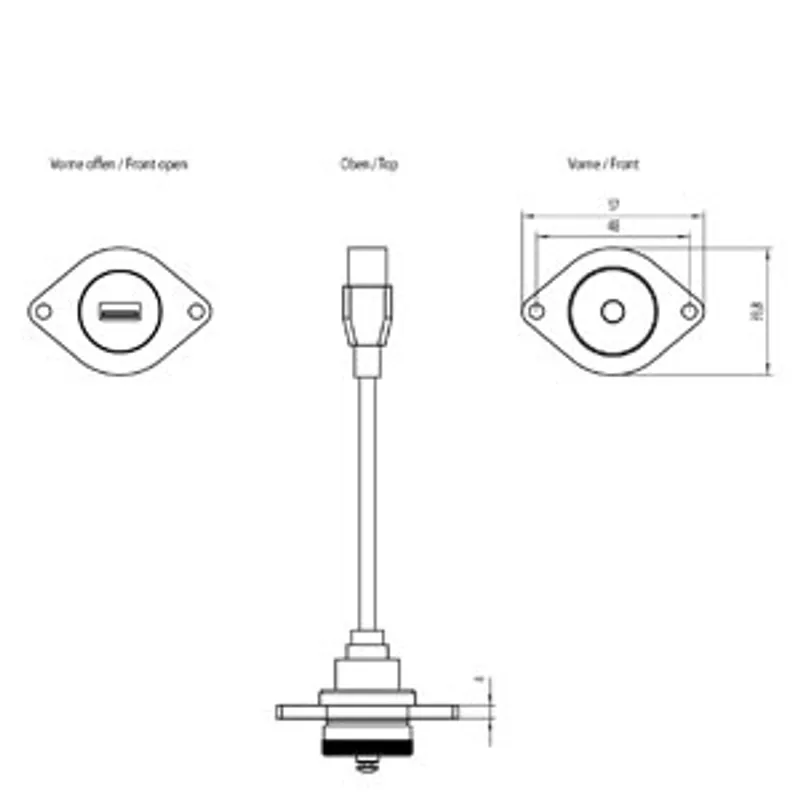

Dimensions
| Enclosure diameter | 22.5 mm; Hole diameter in the cover for the basic adapter |
| mounting depth | 20 mm |
Weights
| Weight (without packaging) | 0.25 kg |
| Weight (with packaging) | 0.53 g |
Scope of supply
| Delivery quantity in pieces | 1 |
| Components included | USB socket with cable and connector, cover for the basic adapter, bolts for fastening |
