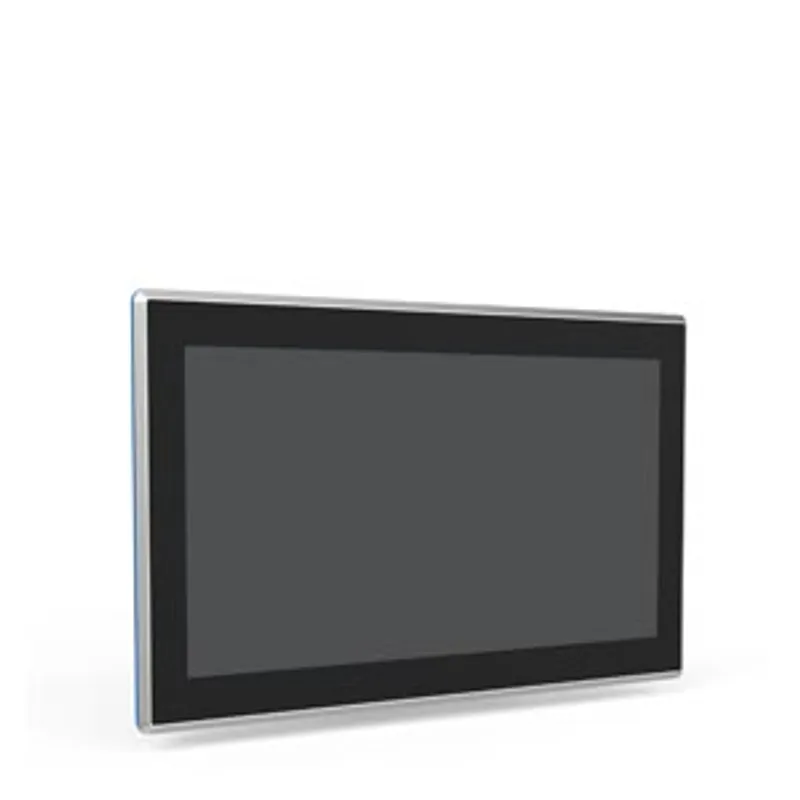

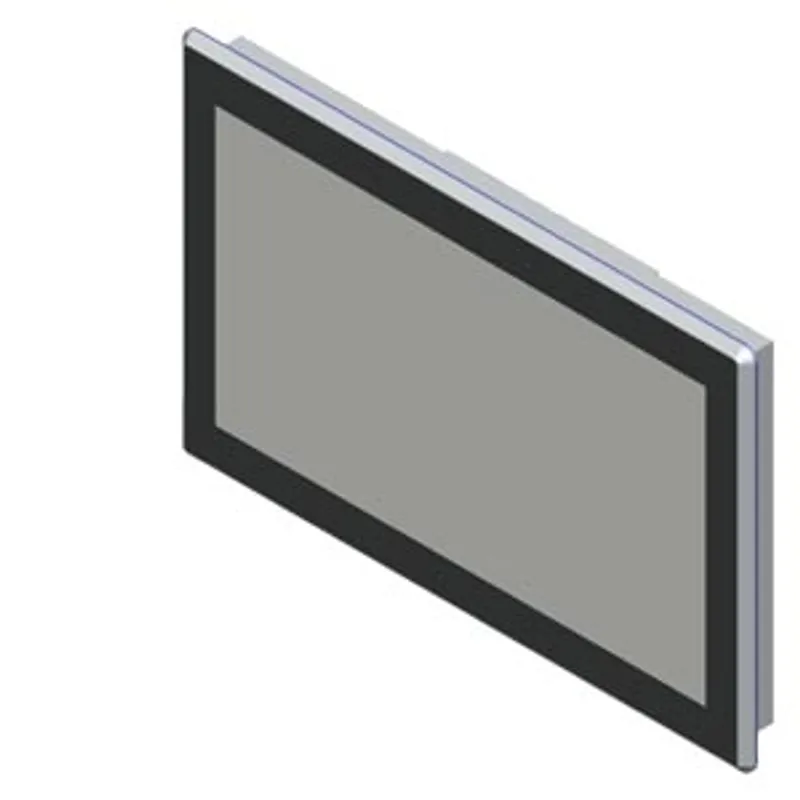

Siemens 6AV7285-6KH00-0AB0

SIMATIC IFP 1900 V2 ext. hygienic, IP69, stainless steel

MPN: 6AV7285-6KH00-0AB0
Category: SIMATIC Industrial Flat Panel HYG

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AV7285-6KH00-0AB0?

SIMATIC IFP 1900 V2 ext. hygienic, IP69, stainless steel, 19" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit for 24 V DC, display port interface, can be placed up to 100 m away HDBaseT, USB on the rear side, blue FDA compliant gasket, increased impact protection with splinter protection display front according to directives EN 1672-2, FDA 21 CFR 177.2006 neutral design

Specifications

General information

Product type designation	IFP1900 V2 ext. hyg.
Short designation	Flat Panel 19" multi-touch ext. hygienic

Display

Design of display	TFT widescreen display, LED backlighting
Screen diagonal	18.5 in; 19"
Screen diagonal [cm]	47 cm
Display width	408.96 mm
Display height	230.04 mm
On Screen Display (OSD) configuration	No; Adjustable by means of software
Number of colors	16 777 216; 24 bit
Viewing angle	178° x 178°
Resolution (pixels) — Image resolution	1 920 x 1 080
Resolution (pixels) — Pixel size, horizontal	0.213 mm
Resolution (pixels) — Pixel size, vertical	0.213 mm
General features — Brightness/contrast	350 cd/m² / 1 000:1
General features — non-reflective and tempered mineral glass screen	No; reinforced pane with shatter protection film
General features — Detachable from computer unit	100 m; HDBaseT protocol
Backlighting — Type of backlighting	LED
Backlighting — MTBF backlighting (at 25 °C)	50 000 h; At 25°C
Backlighting — Backlight dimmable	Yes; 0-100 %

Control elements

Control elements	multi-touch screen
Input device — Integrated mouse cursor control	Yes; Also externally via USB
Touch operation — Design as touch screen	Yes; Projective-capacitive
Touch operation — Design as multi-touch screen	Yes; Projective-capacitive
Touch operation — Monitor keyboard	Yes; If supported by operating system

Installation type/mounting

Design	Built-in unit
Front mounting	Yes
VESA mounting	Yes; VESA 100 x 100 integrated
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
Built-in unit	Yes; Portrait mode possible
maximum permitted forward tilt angle from vertical	35°
maximum permitted backward tilt angle from vertical	35°

Supply voltage

Type of supply voltage	DC
Rated value (DC)	24 V; PELV / SELV floating
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V

Input current

Current consumption (rated value)	1.2 A
Current consumption, max.	1.5 A
Starting current inrush I²t	0.5 A²·s

Power loss

Power loss, typ.	29 W
Power loss, max.	35 W

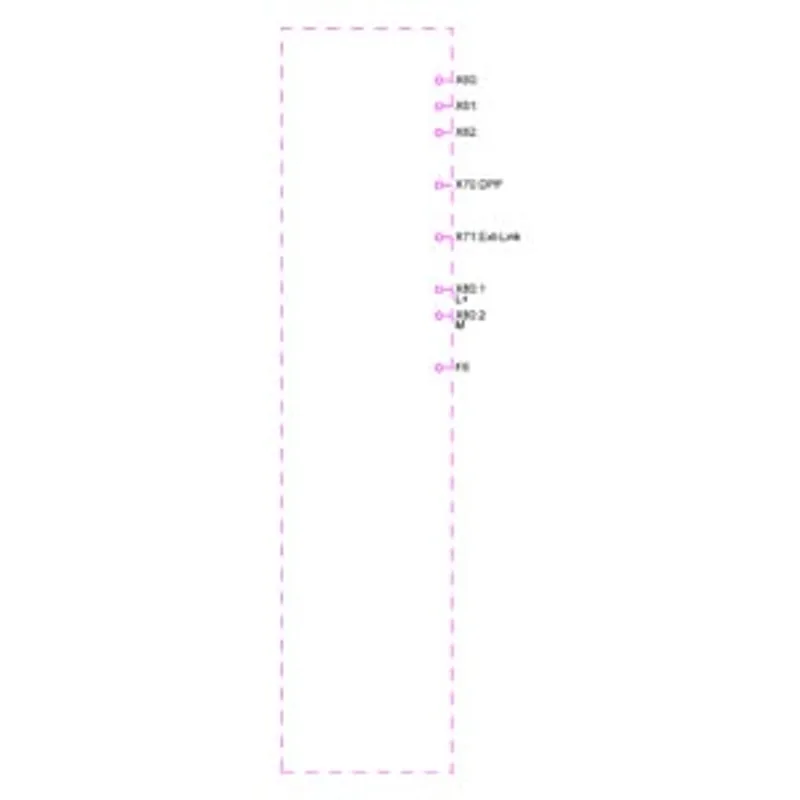

Interfaces

Number of USB interfaces	2; USB 2.0 type A
USB on the rear	Yes; 2x onboard
Connection for keyboard/mouse	USB
Video interfaces — DisplayPort	Yes; Display port V1.2
Touch interfaces — USB	Yes; (device)

Degree and class of protection

IP (at the front)	IP66K, IP69
IP (rear)	IP20
NEMA (front) — Enclosure Type 4x at the front	Yes
NEMA (front) — Enclosure Type 12 at the front	Yes

Standards, approvals, certificates

CE mark	Yes
UL approval	Yes
cULus	Yes
RCM (formerly C-TICK)	Yes
KC approval	No; in preparation
CCC	No; in preparation
EMC	CE, EN 55011, EN 61000-6-4, EN 61000-6-2
Use in hazardous areas — ATEX Zone 2	Yes
Use in hazardous areas — ATEX Zone 22	Yes
Use in hazardous areas — IECEx Zone 2	Yes
Use in hazardous areas — IECEx Zone 22	Yes
Use in hazardous areas — cULus Class I Zone 2, Division 2	Yes

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	50 °C
Ambient temperature during storage/transportation — min.	-20 °C
Ambient temperature during storage/transportation — max.	60 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m
Relative humidity — Operation, max.	90 %; no condensation
Vibrations — Vibration load in operation	10 m/s²
Vibrations — Vibration load during transport/storage	10 m/s²
Shock testing — Shock load during operation	150 m/s²
Shock testing — shock acceleration during storage/transport	250 m/s²

Mechanics/material

Enclosure material (front) — Plastic	Yes; shatter protection film
Enclosure material (front) — Stainless steel	Yes
Enclosure material (rear)	stainless steel, aluminum

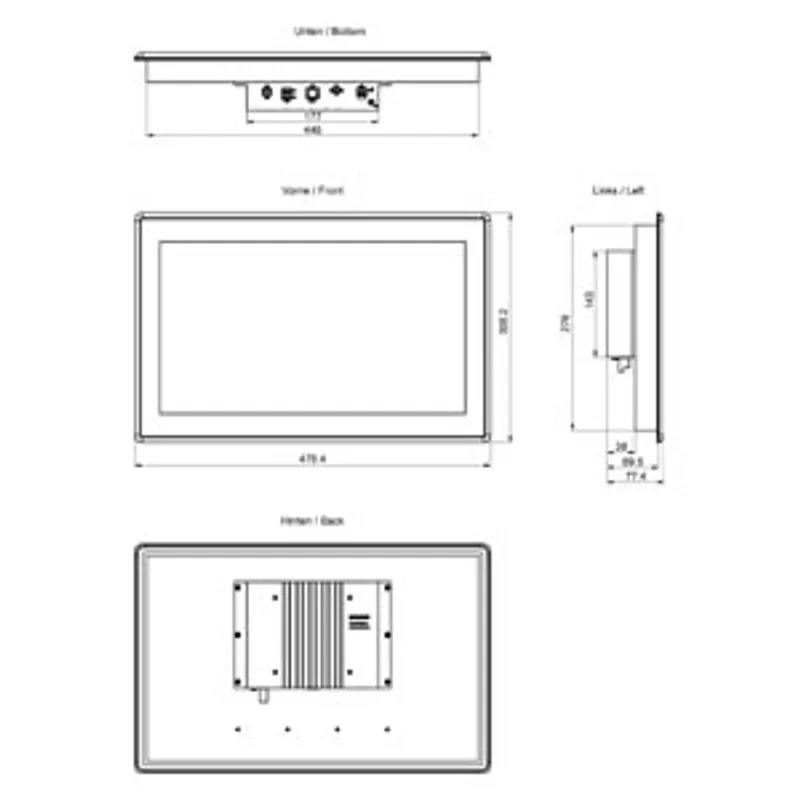

Dimensions

Width of the housing front	478.4 mm
Height of housing front	308.2 mm
Mounting cutout, width	448 mm; Tolerance: +1 mm
Mounting cutout, height	278 mm; Tolerance: +1 mm
mounting depth	67.7 mm

Weights

Weight (without packaging)

6.2 kg
